4.1. The generator
The NSG 438 generator is modularly constructed from a number of
discrete function units.
4.1.1. Function modules
The base station contains the battery supply, the high voltage generator
and regulator as well as several safety features.
The pistol houses the interchangeable pulse network, high voltage relay,
the exchangeable test finger, measuring electronics and the touch-
sensitive input / display panel.

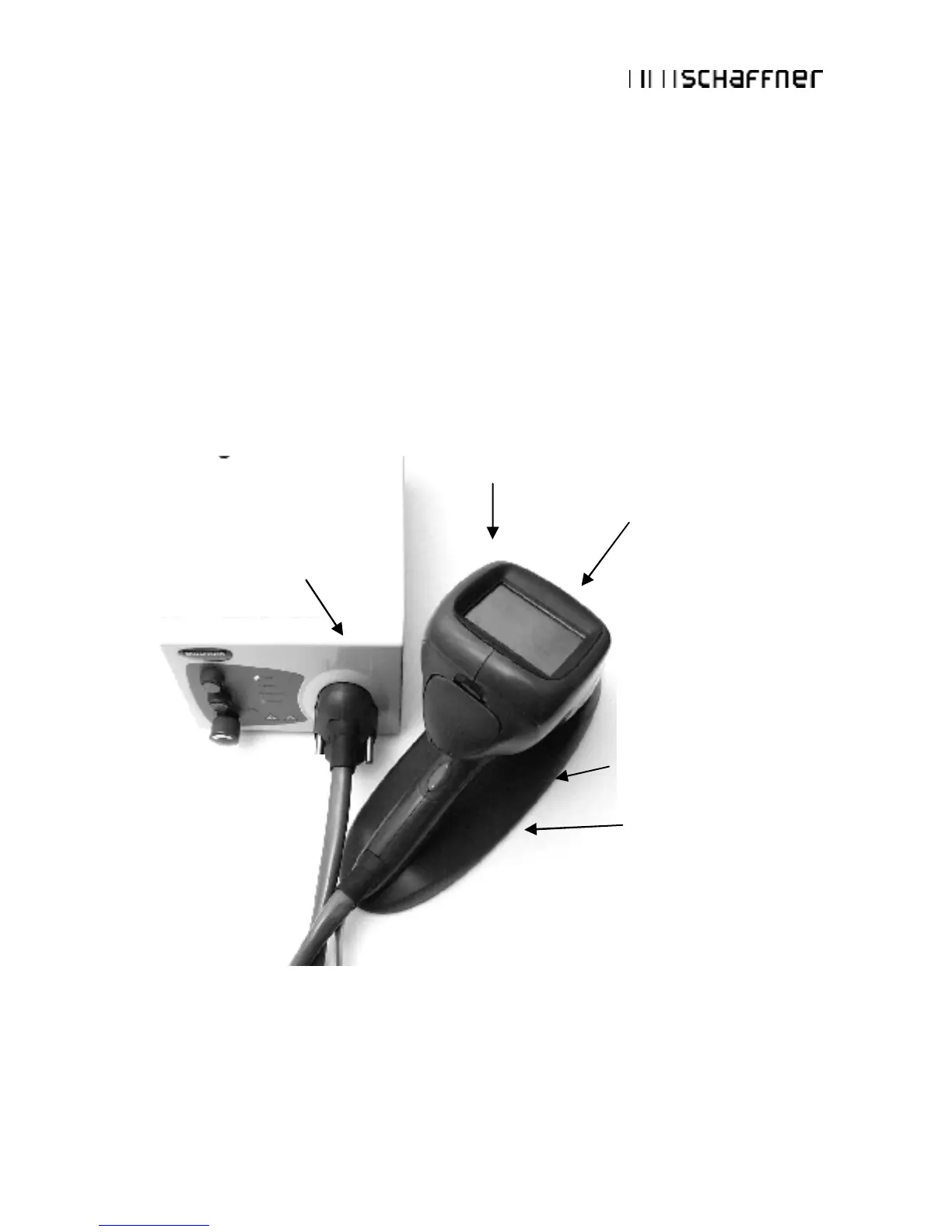

Pistol
Display and
touch-panel
Network
(exchangeable)
Pistol stand
On/Off button and
emergency off switch
