Schaffner NSG 438 - Measurement adapters

NSG 438
16

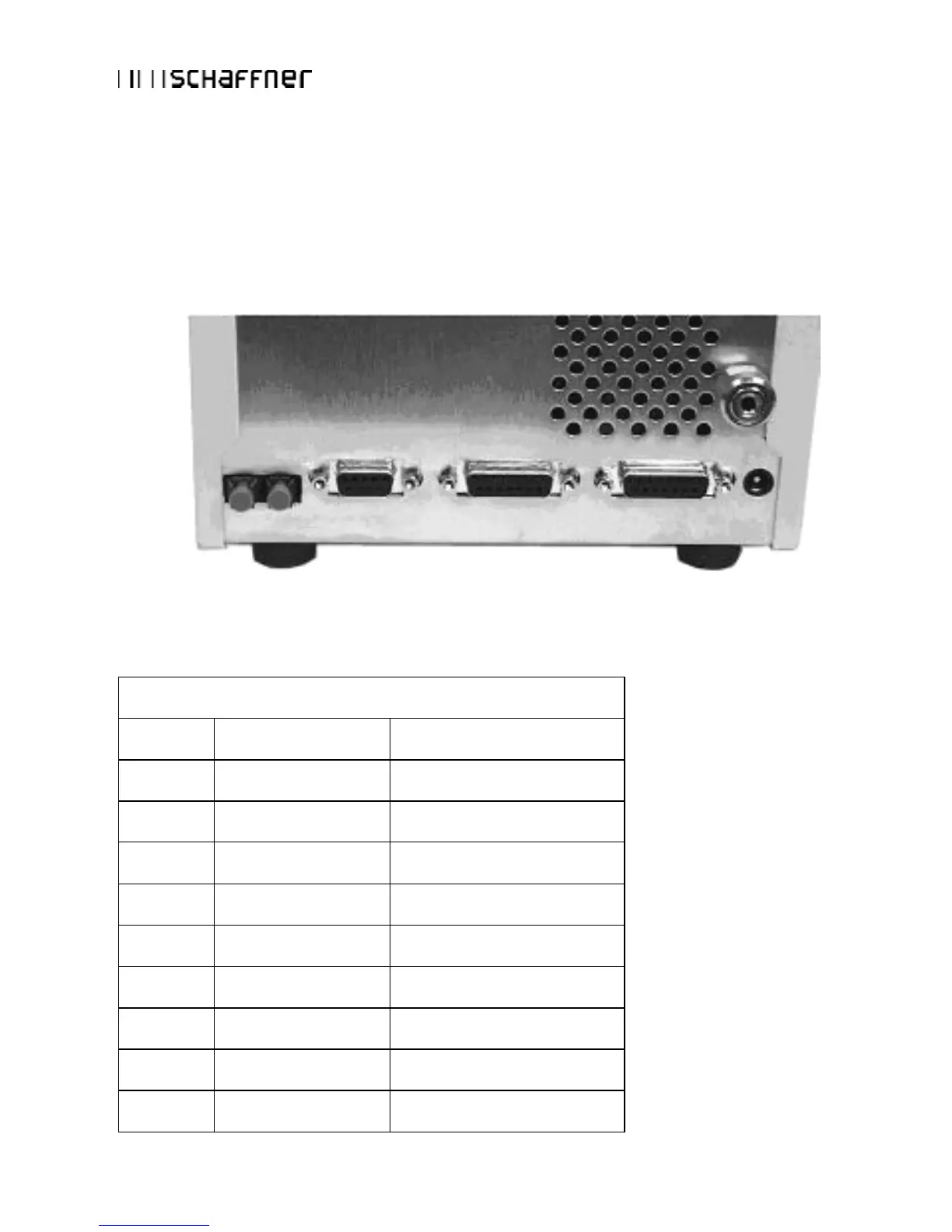

4.2.4. Remote triggering
A remote triggering unit can be connected to operate the NSG 438 inside a
Faraday cage with external pulse triggering or for test pulse triggering in
synchronism with other conditions.
Connector pin-out:
Connector J3: Pin assignment
Pin Signal name Description
1 EXT_TRIGGER External trigger input
2 NC ---
3 NC ---
4 EUT_FAIL EUT failure input
5 GND Earth
6 NC ---
7 NC ---
8 NC ---
9 NC ---
PC Interface
Ext. Trigger
EUT Fail
Interlock IN
Interlock OUT
DC IN
J3
