Check the discharge current and pulse form as follows:
Contact-Discharge
Single-Discharge
Polarity: positive and negative
Voltage settings: 2, 4, 8, 15 and 30kV
Compare the measured values with the reference data in IEC / EN
61000-4-2 (2001).
These values are valid only for the discharge network that conforms to
IEC / EN 61000-4-2 (2001).
Remark
Schaffner offers an accredited service for this kind of work!

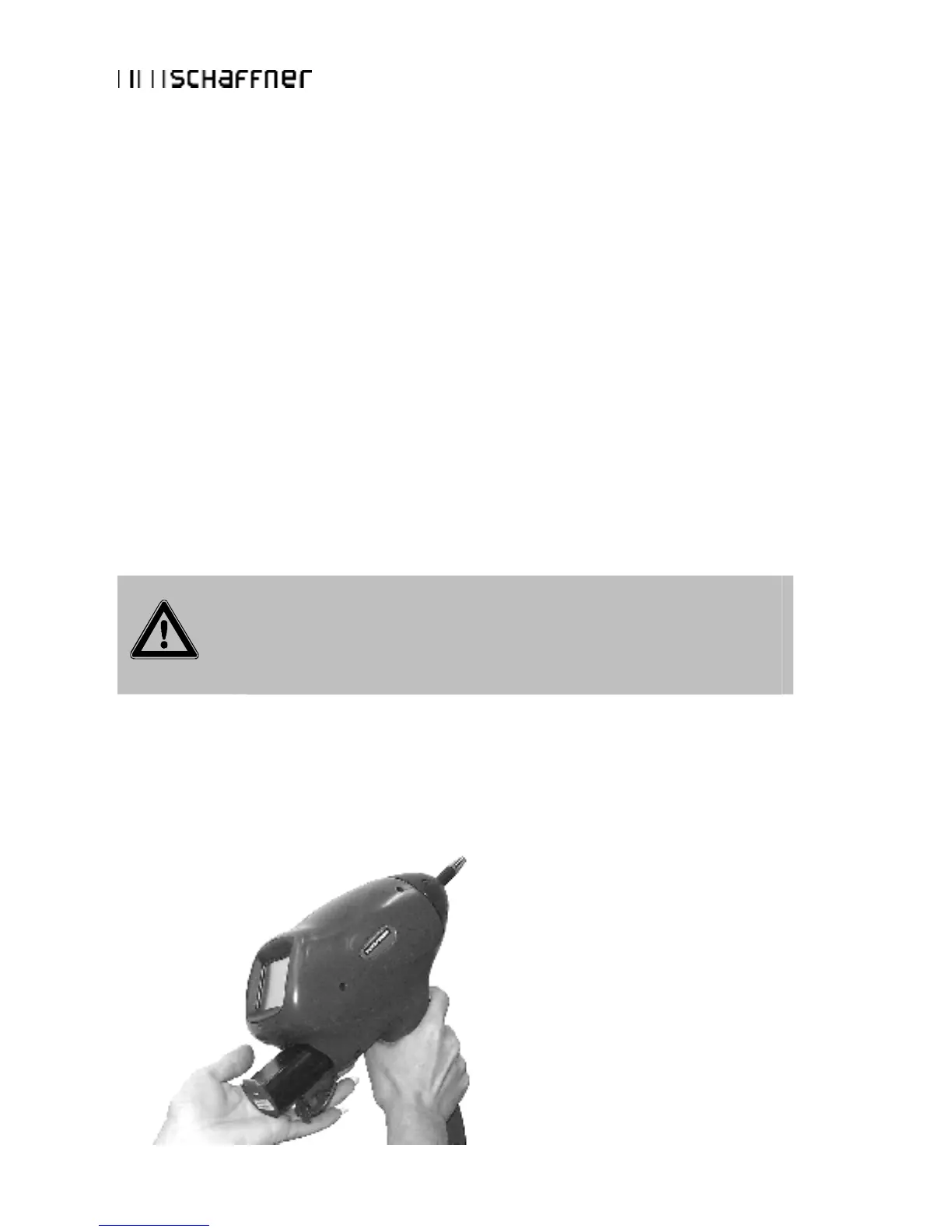

10.2. Exchanging the R-C network
If a network needs to be exchanged, the test has to be
stopped first, followed by a waiting time of at least 5s
to ensure the voltage being internally discharged.
Switch the generator off.
Open the flap under the display and rotate the pistol backwards until the
network drops out under its own weight. Take care! Catch the network in
the other hand.
