NSG 438
30

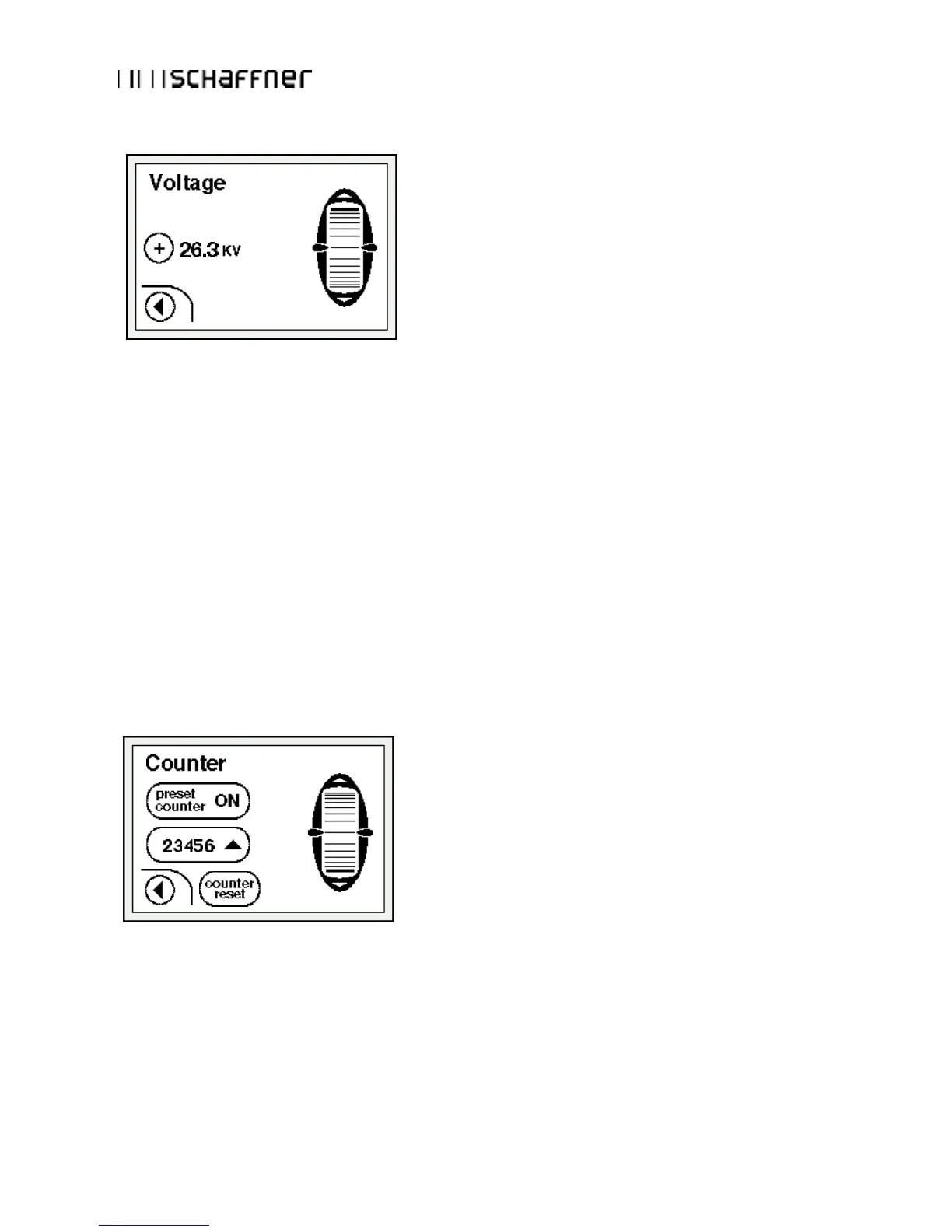

6.3.3. Polarity
Touching the polarity indication brings you into the relevant sub-menu.
Choose between + or – with the wheel. If the pre-select counter function is
active there is the further option of choosing alternating +/- polarity.
6.3.4. Counter
Use the counter button to branch into the corresponding menu. Choose
the counter mode: Preset counter ON/OFF. In the ON state the counter
content can be set by means of the wheel. When the generator is in
operation the preset counter counts down until it reaches 0, which then
terminates the selected test sequence.
Note: - - - - means continuous operation without any preset counter
function. Pressing the trigger button starts the generator operating; a
second press on the same button stops the operation.
Reset counter sets the counter content to 0 or it reloads the preset counter
with the previously selected value.
