Operating Instructions Electroblock EBL 211
5
Date: 22.01.2016
9110476 BA / EN
3.2 Changing the battery
Y ATTENTION!
Use of incorrect battery types or incorrectly rated batteries.
Damage to the battery or devices connected to the electroblock:
F Batteries may only be changed by qualified personnel.
F Follow the battery manufacturer’s instructions.
F Only use the electroblock to connect to 12V power supplies with re-
chargeable 6-cell lead-gel or AGM batteries. Do not use any unsuita-
ble battery types.
Y Normally only batteries of the same type and capacity should be used,
i.e. the same as those installed by the manufacturer.
" Electrically isolate the battery from the electroblock. For this, activate the
battery cut-out (refer also to Section 3.4).
" Remove ”+ solar cell” connector on the solar charge regulator (if availa-
ble).
" Isolate the electroblock from the mains voltage (230V AC).
" Replace the battery.
" After changing the battery, recheck which type of battery has been inser-
ted.
Y DANGER!
Incorrect setting of the battery selector switch.
Risk of explosion due to build up of explosive gases:
F Move the battery selector switch to the correct position
Y ATTENTION!
Incorrect setting of the battery selector switch.
Damage to the battery.
F Move the battery selector switch to the correct position
" Disconnect the electroblock from the mains before adjusting the battery
selector switch.
Y
However , suitability must be checked on a case-by-case basis using the
specifications from the battery manufacturer and the charging parame-
ters of the electroblock.
The charging parameters are specified in Section 5.2.
1

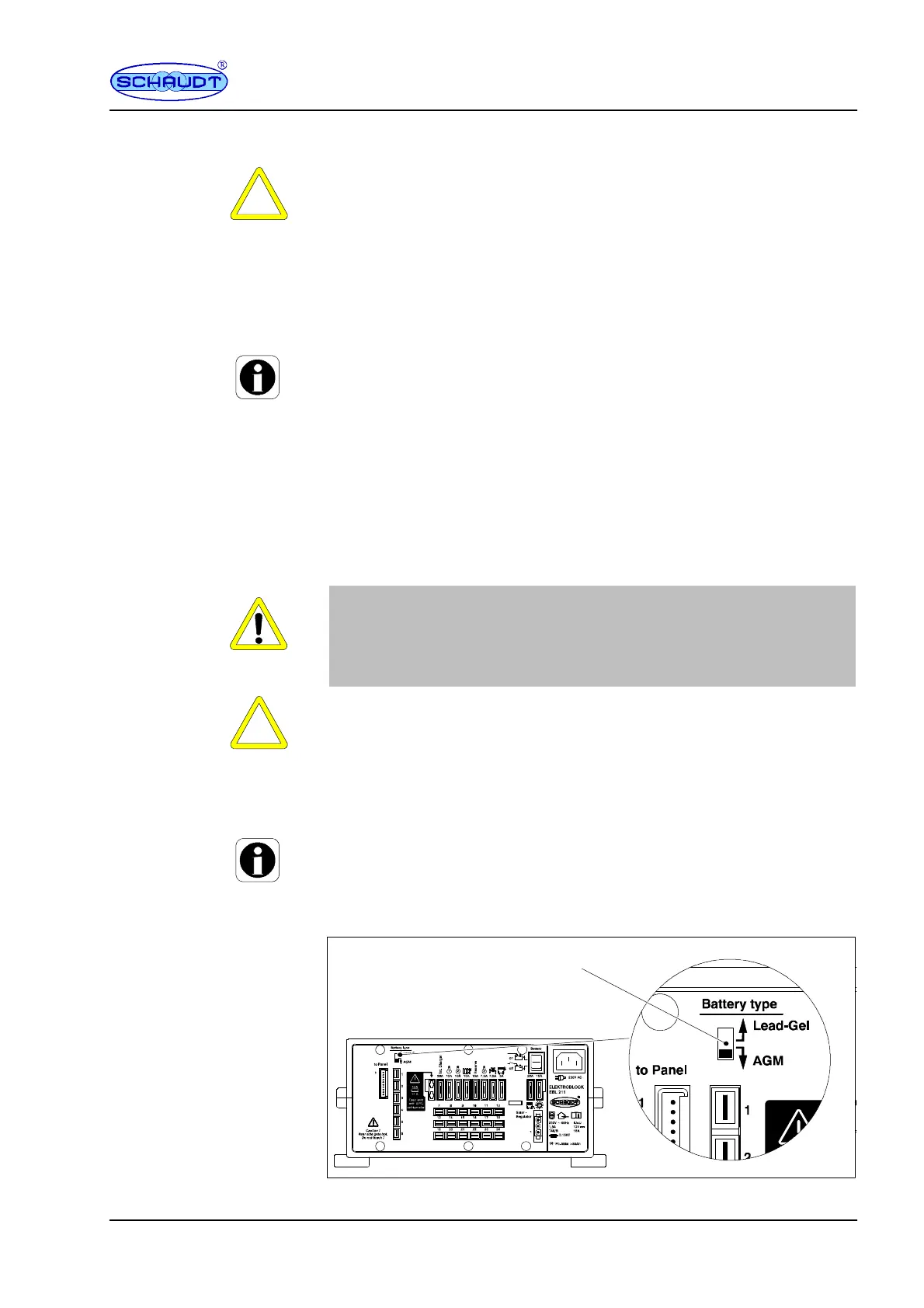

Fig. 1 Battery selector switch
Changing the battery
