4 Application and functions in detail
4.1 General
Y This device is intended solely for installation in a vehicle.
The electroblock is the central energy supply device for all 12 V consumers
in the electrical system on board the motorhome/caravan. It is normally loca-
ted inside a cupboard or storage area and is accessible from the front for
fuse changes.
+--
+--
Solar
regulator
LR / LRS ...
(accessory)
Operator and
control panel
DT / LT / IT ...
230V AC
Electroblock
EBL 211
Lighting
Pump
Heater
etc.
12V consumers
Starter battery
Leisure area battery

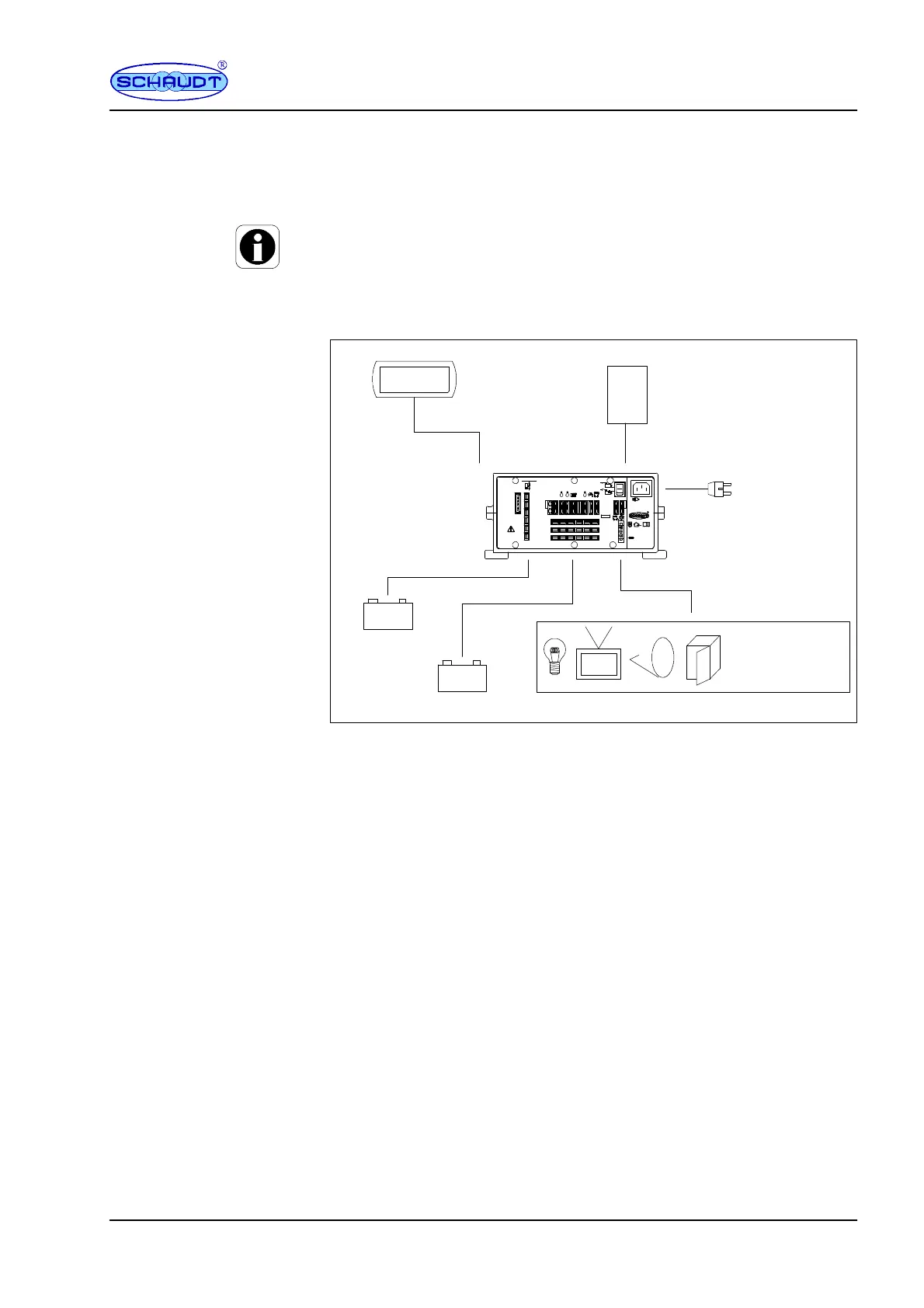

Fig. 2 On-board power supply system
The EBL 211 electroblock comprises:
F a charge module for charging all batteries connected
F the complete 12V distribution unit
F the fuses for the 12V circuits
F a main switch module
F battery monitor
F other control and monitoring functions
A control and switch panel must be connected for operation. This device
controls the electrical functions in the motorhome’s leisure area as well as
the accessories.
There is a connection for a solar charge regulator .
Flat vehicle fuses protect the various circuits. Exceptions here are the step
and the frost protection valve.
F Excess temperature
F Overload
F Short circuit
Modules
System devices
Protective circuits
