Instruction Manual for Electroblock EBL 30 / EBL 30 with OVP
10
Date: 15.10.2018 8110305 BA / EN
Leisure battery
Battery selector
switch setting
lead-gel AGM
Charging curve IUoU IUoU
Final charge voltage 14,4V/16h 14,7 V / 4 h
Charge current 18 A 18 A
Voltage for float charge 13,7 V with automatic
switchover
13,7 V with automatic
switchover
Starter battery
Charging current float charge max. 6 A
Charging voltage typ. U
Wbat
-- 0 . 2 V
New charge cycle for battery voltage < 13.7 V
Switchover to main charging with approx. 5 seconds delay
Main c harge
I
Full charge
Uo
Trickle charge
U
16 h for lead-gel
4hforAGM
Time
Lead-gel:14.4V
AGM: 14.7 V
U
charge
V
Lead-gel:13.7V
AGM: 13.7V

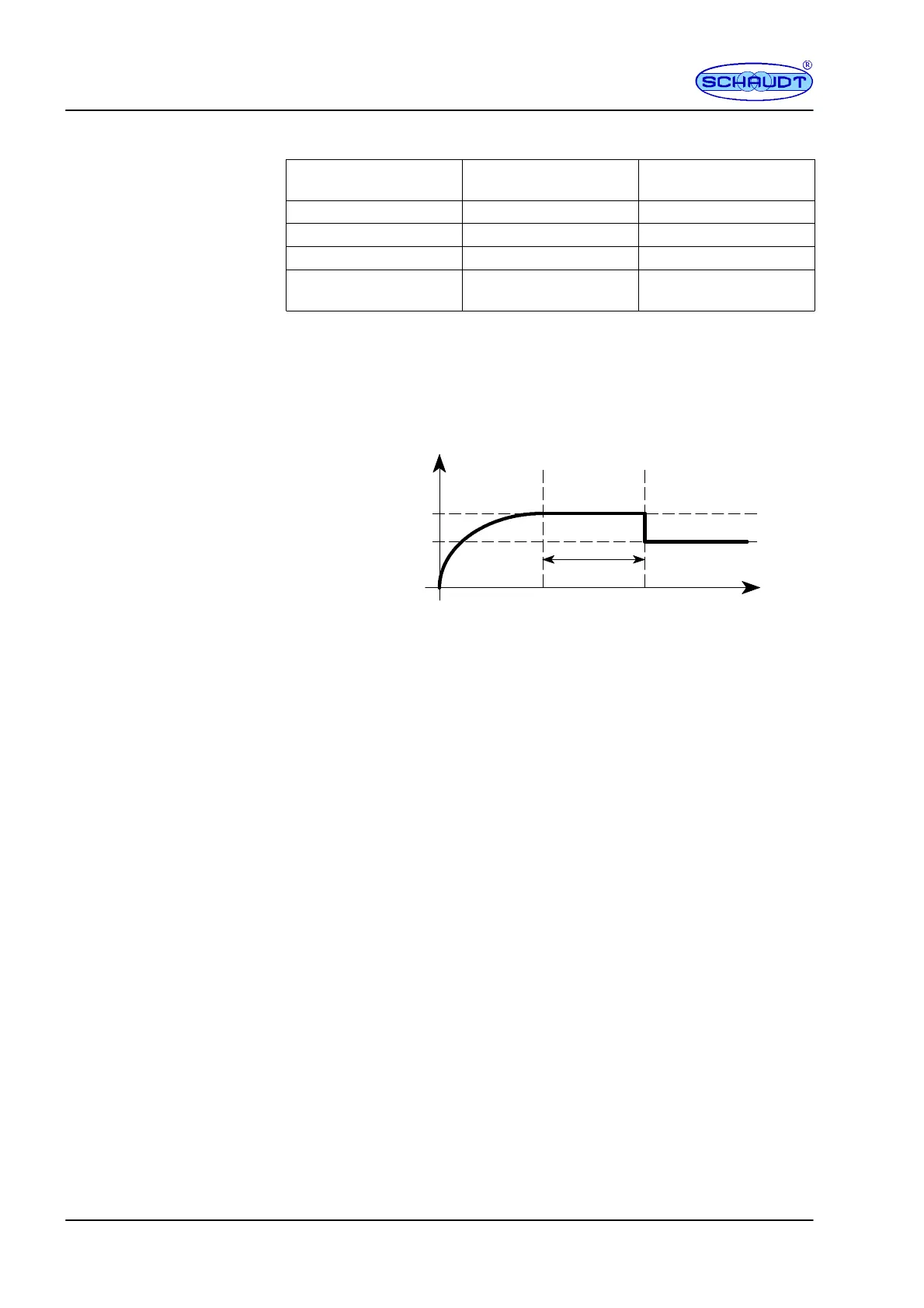

Fig. 3 Charging voltage curve with electroblock EBL 30
I Main charge with maximum 18 A charging current, electronically limi-
ted, up to final charging voltage. Start of charge also for completely
discharged batteries.
Uo Automatic switchover to full charge with constant 14.4 V (lead-gel) or
14.7 V (AGM). The duration of the full charge phase is based on the
battery type and is set on the device.
U Automatic changeover to compensation charge with constant 13.7 V. In
the compensation charge phase, the voltage at the output of the char-
ging module is constant.
Start of a new charging cycle by switching over to main charge, if the battery
voltage falls below 13.7 V for more than 5 seconds when loaded. Start of
charge also for completely discharged batteries. The internal charge module
can also be operated without leisure battery.
Overvoltage: Approx. 265 V
 eff.
This values applies for distortion-free sinusoidal voltage.
5.3 Environmental parameters
-20 Cto+45C
-20 Cto+70C
Operation in dry environment only
CE mark
Battery charging via
mains connector
Battery charging of the
starter battery
IUoU curve
Interrupting voltage for
EBL30withOVP
Operating temperature
Storage temperature
Humidity
CE
