Schaudt Electroblock EBL 30 - Changing the Battery

Instruction Manual for Electroblock EBL 30 / EBL 30 with OVP
4
Date: 15.10.2018 8110305 BA / EN
3.2 Changing the battery
Y ATTENTION!
Use of incorrect battery types or incorrectly rated batteries.
Damage to the battery or devices connected to the electroblock:
F Batteries may only be changed by qualified personnel.
F Follow the battery manufacturer’s instructions.
F Only use the electroblock to connect to 12V power supplies with re-
chargeable 6-cell lead-gel or AGM batteries. Do not use any unsuita-
ble battery types.
Y Normally only batteries of the same type and capacity should be used,
i.e. the same as those installed by the manufacturer.
" Electrically isolate the battery from the electroblock. For this, switch off
the battery separation switch on the EBL 30 electroblock (refer also to
Section 3.4).
" Replace the battery.
" After changing the battery, recheck which type of battery has been inser-
ted.
Y DANGER!
Incorrect setting of the battery selector switch.
Risk of explosion due to build up of explosive gases:
F Move the battery selector switch to the correct position.
" Disconnect the electroblock from the mains before adjusting the battery
selector switch.
1

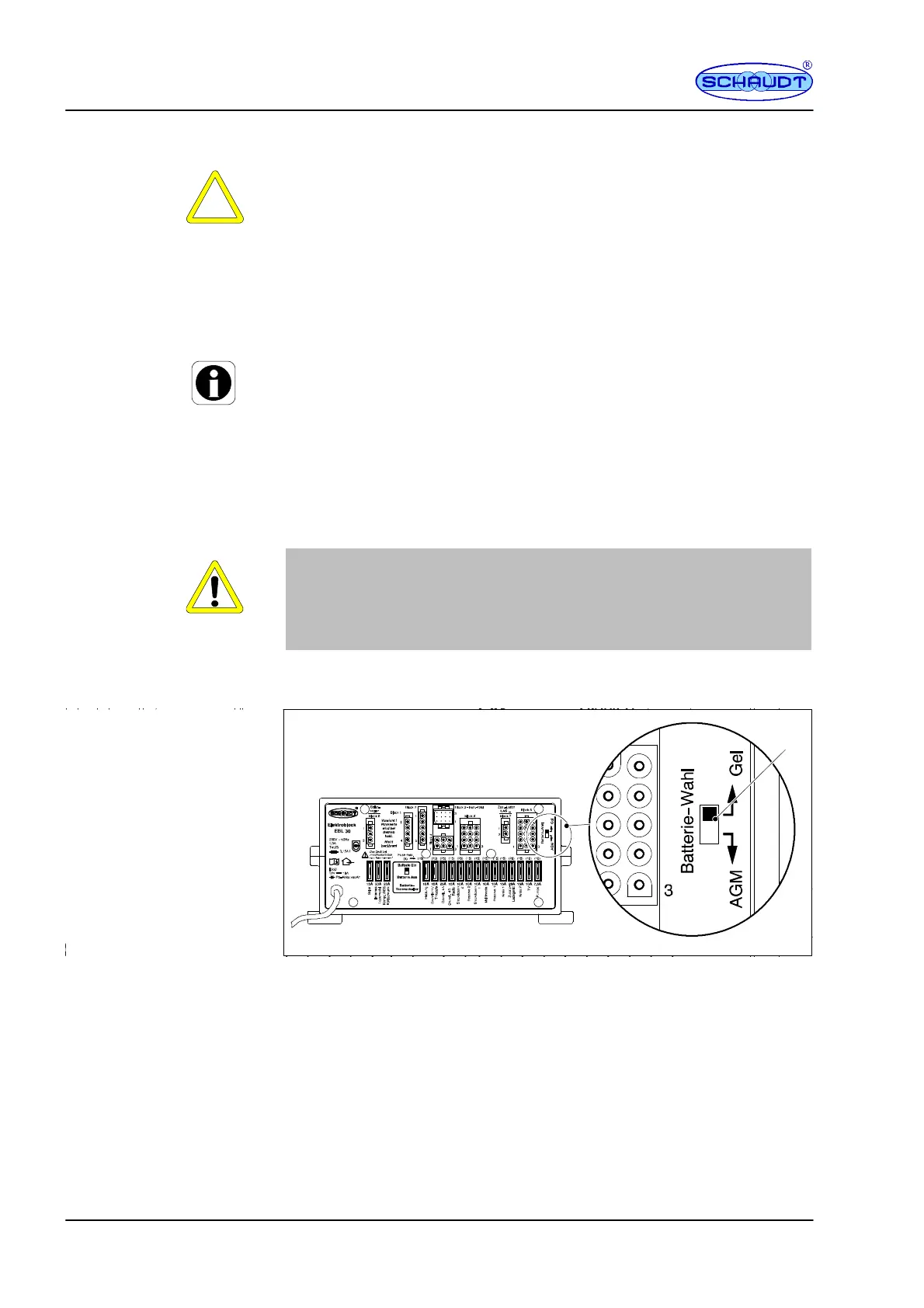

Fig. 1 Battery selector switch
"
Move the battery selector switch (Fig. 1, Pos. 1) to the correct position
using a thin object (e.g. a ballpoint pen):
F Lead-gel battery: Move the battery selector switch to ”Gel”.
F AGM battery: Move the battery selector switch to ”AGM”.
" Start up the system as described in Section 3.1.
Changing the battery
Starting up
the system
