Instruction Manual for Electroblock EBL 30 / EBL 30 with OVP
14
Date: 15.10.2018 8110305 BA / EN
E Layout
11
34 56
7
2
8
12
9
13
1
14
10

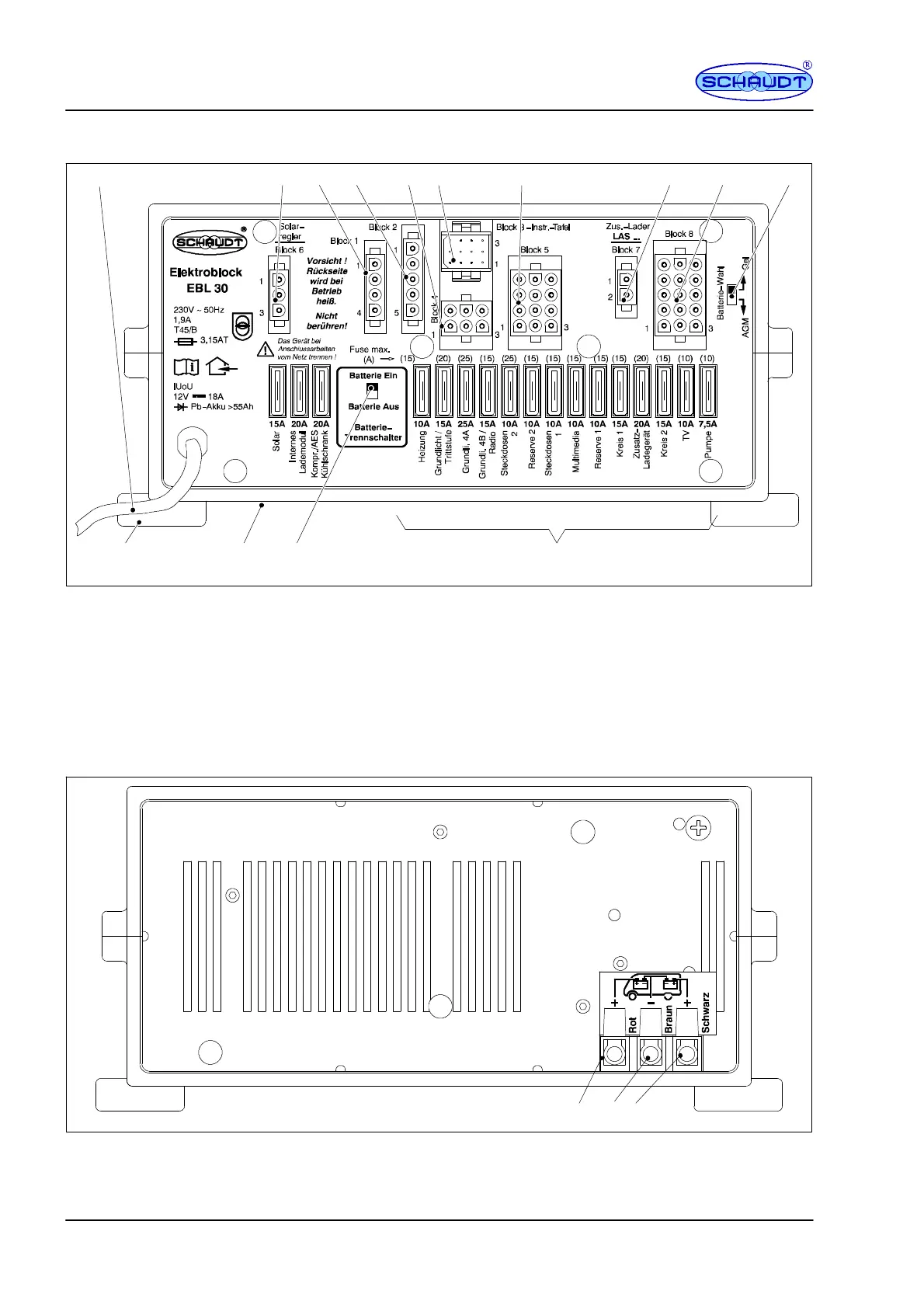

Fig. 4 Layout of the EBL 30 electroblock (front)
1 Mains cable with WAGO plug connector
2 Connection block, solar regulator
3 Connection block, refrigerator
4 Connection block, refrigerator supply D+, battery sen-
sor/control lines
5 Connection block, frost protection valve, heating and
floor light/steps
6 IT ... / LT ... control and display panel connector
7 Connection block spare 2, sockets 2 floor light 4A and
4B/radio
8 Connection block, additional charger
9 Connection block TV, pump, sockets 1,
spare 1, circuits 1 and 2
10 Lead-gel / AGM battery changeover switch
11 Flat vehicle fuses
12 Battery cut-off switch
13 Housing
14 Assembly flaps
123
Fig. 5 Layout of the EBL 30 electroblock (rear)
1 Connection, living area battery
2 Earth connector
3 Connection, starter battery
