Acknowledgement
We thank you for your purchase and hope that you are fully satised with this product.
Before you use this product, we recommend you read the instructions below carefully.
This manual explains how to use and install the product in accordance with its intended use.
Safety Warnings
WARNING: Do not disassemble the device
Any contact with the product's internal components can cause injury. In the event of a malfunction, only a qualied technician is
authorised to repair the device
WARNING: In the event of impact
If the product falls or undergoes heavy impact, immediately contact a qualied person to ensure the device is working correctly
WARNING: Unpacking the equipment
After unpacking the product, make sure that it is complete and in good condition. If you are not sure, immediately contact a person
with the required professional qualication
WARNING: Unpacking the equipment
Do not leave any part of the packaging within the reach of children or vulnerable adults
Equipment description
Light Air Switch is the perfect solution to manage and transform the organisation of your low voltage DC lighting.
The Lighting control module is managed by wireless & battery-free switches via the 2.4Ghz antenna module (frequency usable worldwide).
These modules are designed to be easily integrated into a false ceiling or a technical gallery.

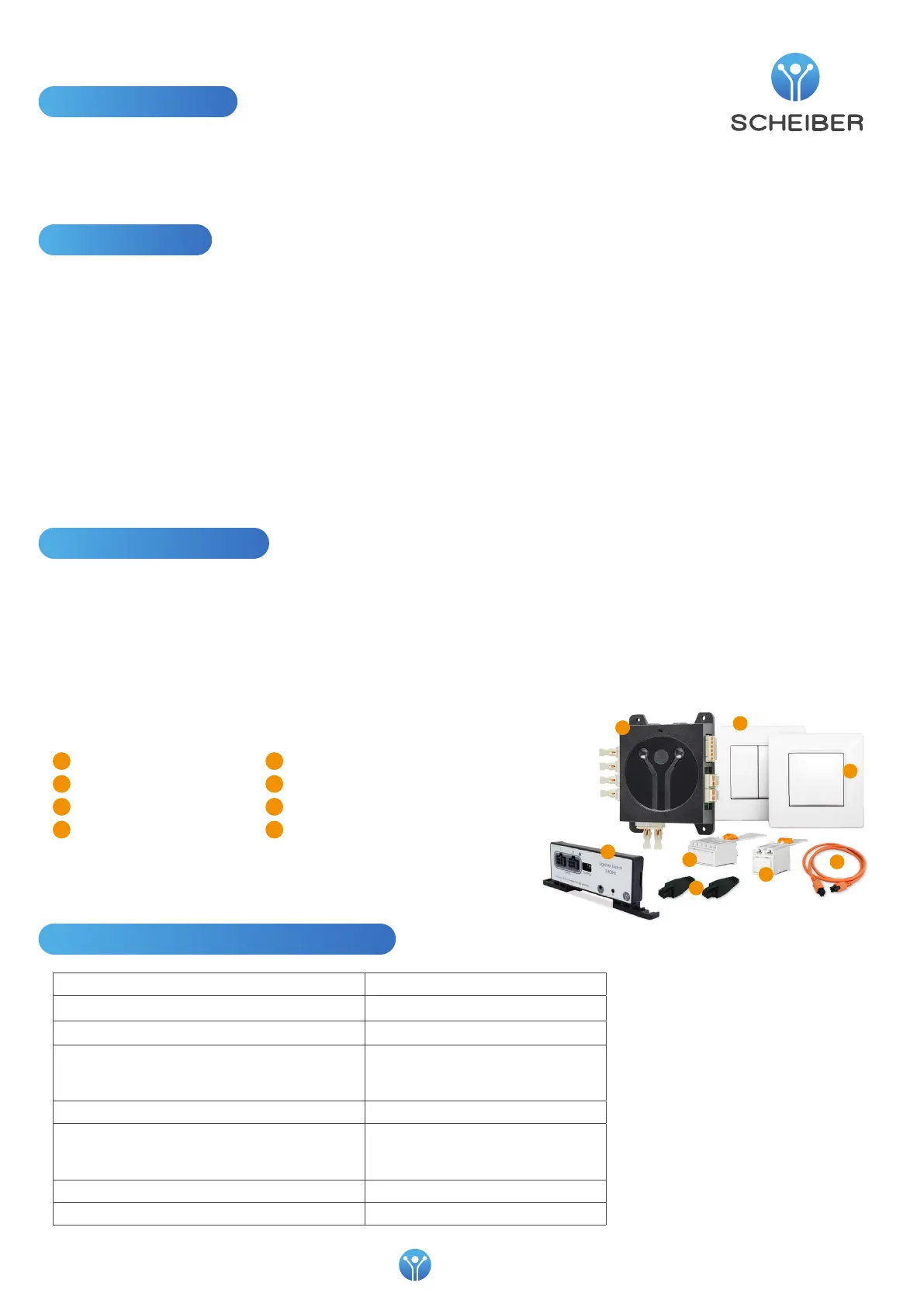

Kit contents :
1
2
4
5
6
7
8
Accessories / Associated references
Designation Reference
120 Ω terminations 0D.CRD399
Lighting Control Module PICOMAX connections 41.72119.XX
Coding resistances 11 references available :
50.FIL12008.00-01 [001001] to
50.FIL12008.00-11 [001001]
Connections bag 62.SAC12008B.00
BUS cables 15 references available :
0D.CRD450 : 0.4 m to
0D.CRD465 : 15 m
Switches (wireless & battery-free) 0F.INT221-2.4 / 0F.INT222-2.4
Navicolor GT2 41.68019.XX
3
Lighting Control Module x1
2.4 Ghz Antenna module x1
CAN cable (1m) x1
120 Ω terminations x2
2-way PicoMax connectors x8
6-way PicoMax connector x1
white 1-button switch x1
white 2-button switch x1
1
2
3
4
5
6
7
8
