Domotique embarquée
Embedded home automation
P. 4
Domotique embarquée
Embedded home automation

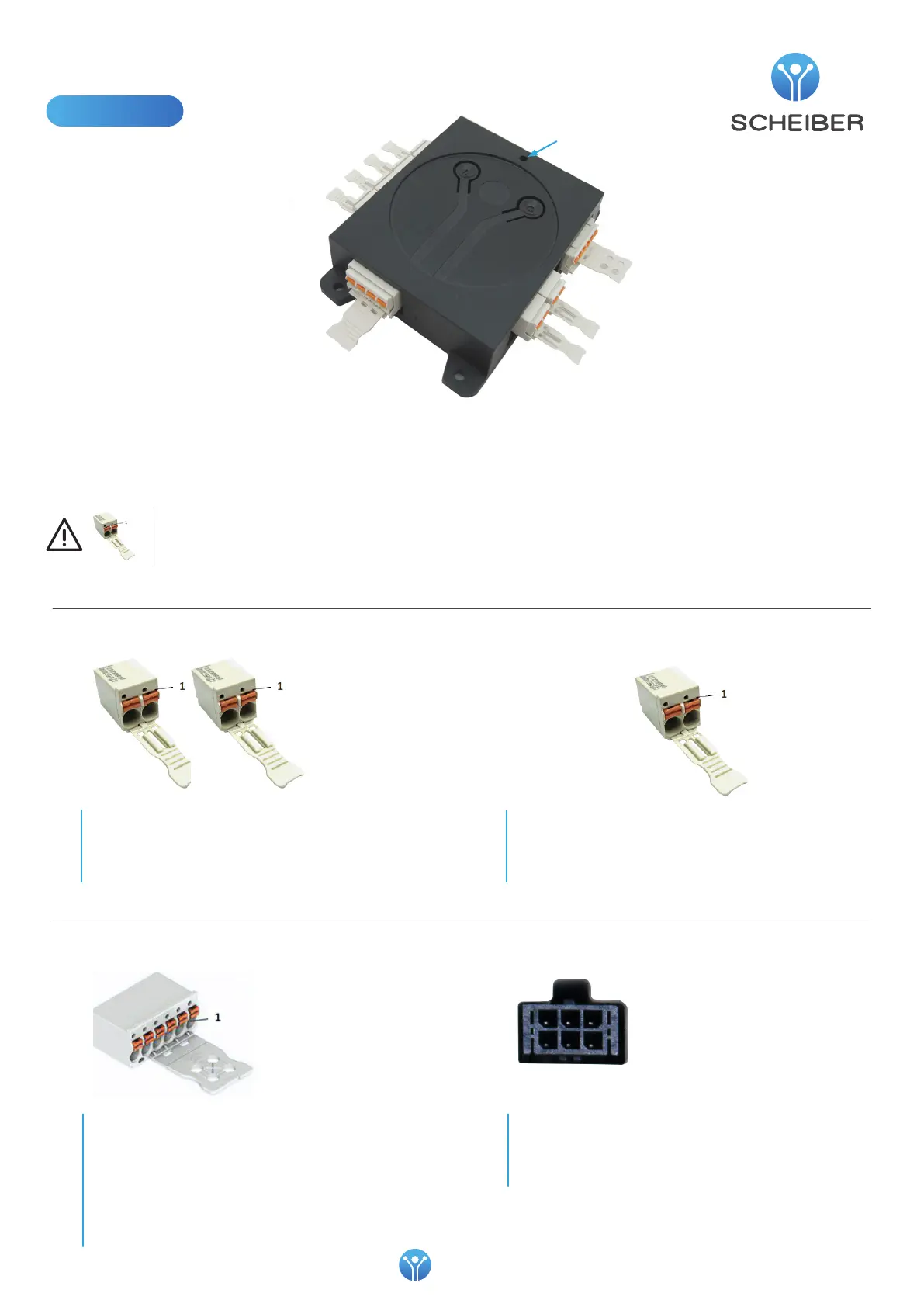

Connectors
LIGHTING CONTROL MODULE
J6
J7
J8
J1
J2
J3
J4
J5
LED status
J9A
J1- Power connector
PicoMAX 5.0 - 2-way, max 2.5mm²
Ref. WAGO 2092-1104/002-000
Ref. SCHEIBER 0E.CON1481
1) + BATTERY – max 16A
2) - BATTERY – max 16A
J2/J3/J4/J5/J6/J7 - Output connector
PicoMAX 5.0 - 2-way, max 2.5mm²
Wago: 2092-1102/002-000
Ref. SCHEIBER 0E.CON1481
1) + max 5A
2) - max 5A
J8
PicoMAX 3.5 - 6-way, max 1.5mm²
Ref. WAGO 2091-1106/002-000
Ref. SCHEIBER 0E.CON1485
1) INPUT 5, ANALOGUE CODING
2) -VDC OUTPUT
3) INPUT 4, DIGITAL
4) INPUT 3, DIGITAL
5) INPUT 2, DIGITAL
6) INPUT 1, DIGITAL
J9A / J9B
Multibloc 6-way CAN bus connector
J9A and J9B have the same function, the connection
can be done on J9A or J9B.
Ref. SCHEIBER 0D.CRD450 (0,4M) to 0D.CRD465 (15M)
For up to 16A, you can use one DC power input on J1 (1-2, or 3-4).
Above 16A, the DC power inputs must be doubled (1-4).
J9B
The voltage of the output is equal to the supply voltage.
For example, if a 12V battery is connected to J1, the output voltage on J2 will be 12V.
