40 GB

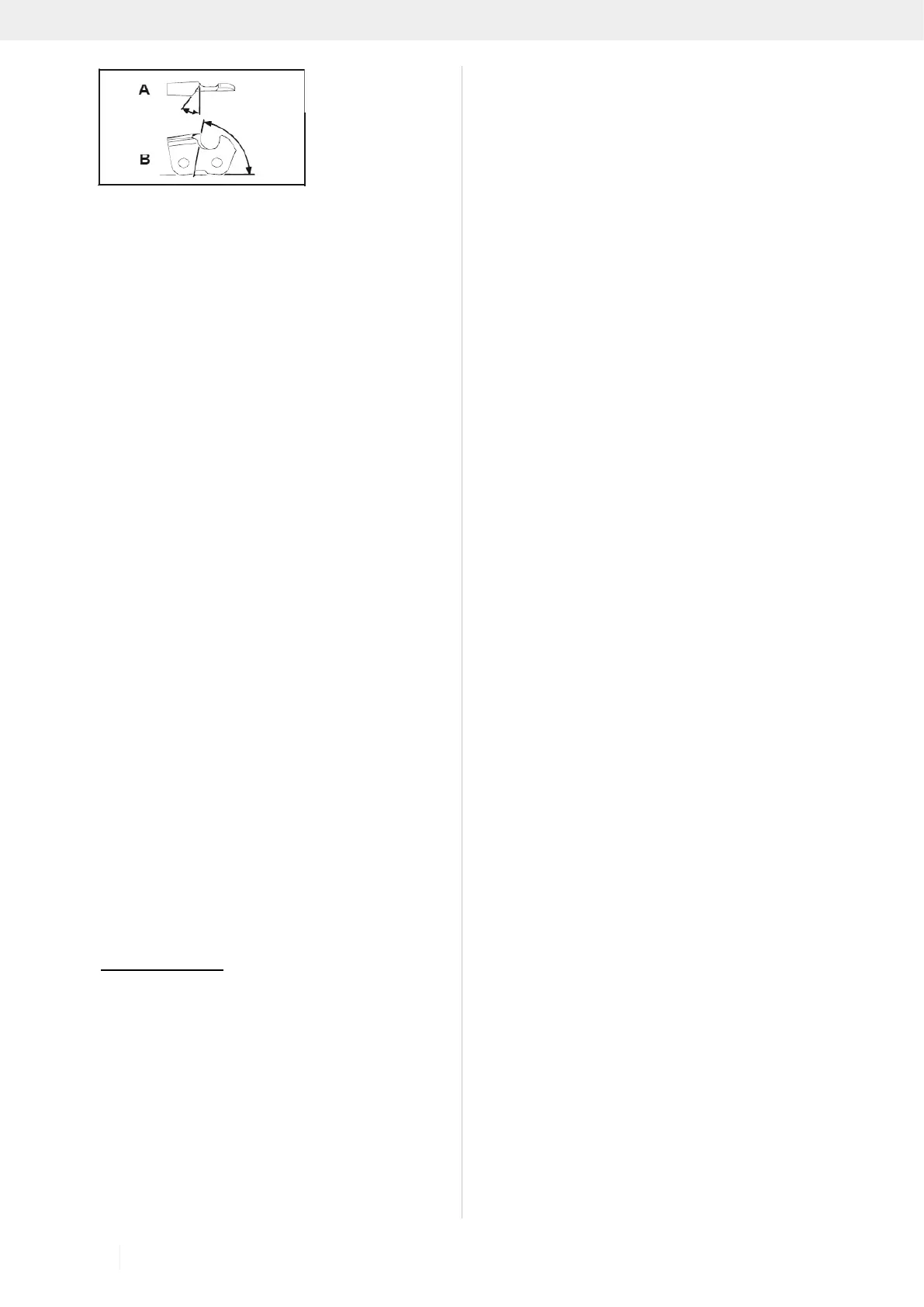

A = ling angle
B = the angle of the side plate
The angle must also be maintained for all knives.
For irregular angles, the chain is run irregularly, wear
quickly and break down prematurely.
Since these requirements can only be met with suf-
cient and regular exercise:
• A File Holder must be used when sharpening the
saw chain by hand. The correct ling angle marked
on it.
• Hold the le horizontally (at a right angle to the
guide rail) and le according to the angle mark on
the le holder. Support the le holder on the top
plate and depth gauge.
• File down. The knife is always from the inside to
the outside
• The le sharpens only in forward motion. Lift it off
in the backward motion.
• Do not touch the dynamic links with the le.
• Turn the le regularly continue to avoid a onesided
wear.
• Remove to remove a piece of hard wood, bones
raw edges.
All knives must have the same length, otherwise they
will also vary. As a result, the chain is irregular and it
increases the risk of going broke.
Oiling the gears (pole saw)
Oil the gears every 10 to 20 operating hours.
1 Position the grease gun at the lubricating nipples
Fig. 47 (Q).
2 Insert some grease.
Attention! Fill only a small amount of grease. Do not
overll.
Check the hedge trimmer for obvious faults such
as:
• loose attachments
• worn or damaged components
• bent, broken or damaged cutting tools
• correctly attached and working covers and safety
devices
• wear, in particular, cutting tool play
Immediately replace damaged or blunt cutting
tools, even in the event of minor damage.
Oiling the gears, hedge trimmer
Oil the gears every 10 to 20 operating hours.
1 Position the grease gun at the lubricating nipples
Fig. 41 (P).
2 Insert some grease.
Attention! Fill only a small amount of grease. Do not
overll.
Oil the cutting tools and the angle adjustment with
environmentally friendly lubricant.
Adjusting the idle speed Fig. 50
If the cutting device runs idle, correct the idle speed.
1. Allow the engine to warm for 3-5 minutes
(No high speeds!).
2. Turn the adjusting screw (S):
clockwise
- idle speed increases (+)
counterclockwise
- Idling speed decreases (-)
The idle speed is 3000 min
-1
Contact the manufacturer if the cutter continues
to run at idle.
Do not continue to operate the unit!
The user is responsible for all damages caused
by non-compliance with instructions in this
manual.
This also applies to non-authorized modica-
tions of the tool, use of non-authorized spare
parts, accessories, working tools, unrelated and
not intended use, secondary damages due to
use of faulty components.
Wear Parts
Even when used in the intended way, some compo-
nents are subject to normal wear. They have to be
replaced depending on the kind of duration of usage.
These parts include, among others, the cutting tool
and the retaining disk.
m Warning! Use only original manufacturer‘s re-
placement parts, accessories and attachments. Fail-
ure to do so can cause poor performance, possible
injury and may void your warranty
Important hint in case of sending the equipment
to a service station:
Due to security reasons please see to it that the
equipment is sent back free of oil and gas!
Ordering replacement parts
Please quote the following data when ordering re-
placement parts:
• Type of machine
• Article number of the machine
Replacement parts / accesories:
For the cutting equipment listed here, you can always
use the safety guards provided with the unit.
