SCHEU BIOSTAR - Biostar Components Overview; Front View Component Identification

B
H
I
G
F
E
D
C
A
On/O Switch: Supplies electricity to operate the machine.
Infrared Heater: Found on left side of unit, swings from back of machine (rest position),
forward over thermal plastic held on the chamber.
Control Panel: Contains operating controls including keypad operation input buttons,
air pressure evacuation button, and digital operating viewing panel.
Locking Handle: Locks chamber onto pellet cup/platform and switches air pressure on.
Barcode Scanner: Automatically enters the correct processing information for the thermal
plastic.
Pellet Cup: Used in every pressure-forming process and can be removed from the
Biostar table for cleaning. The pellet cup holds the dental model, pellets,
and platform.
Platform*: Circular plate that is placed on the inner lip of the master
pellet cup, to be used in place of pellets.
Pellet Drawer: Removable front compartment that holds unused pellets.
Pressure Chamber: Thermal plastic is held and air pressure incorporated for molding.
Locking Ring Clamp: Circular metal clamp that secures material to the pressure chamber.
Magnetic Brush**: Used to control pellet placement and remove the platform
from the pellet cup.
J
A On/O Switch
B Infrared Heater
C Control Panel
D Locking Handle
E Barcode Scanner
F
Pellet Cup
G Pellet Drawer
H Pressure Chamber
I Locking Ring Clamp
J
Platform*
K Magnetic Brush**

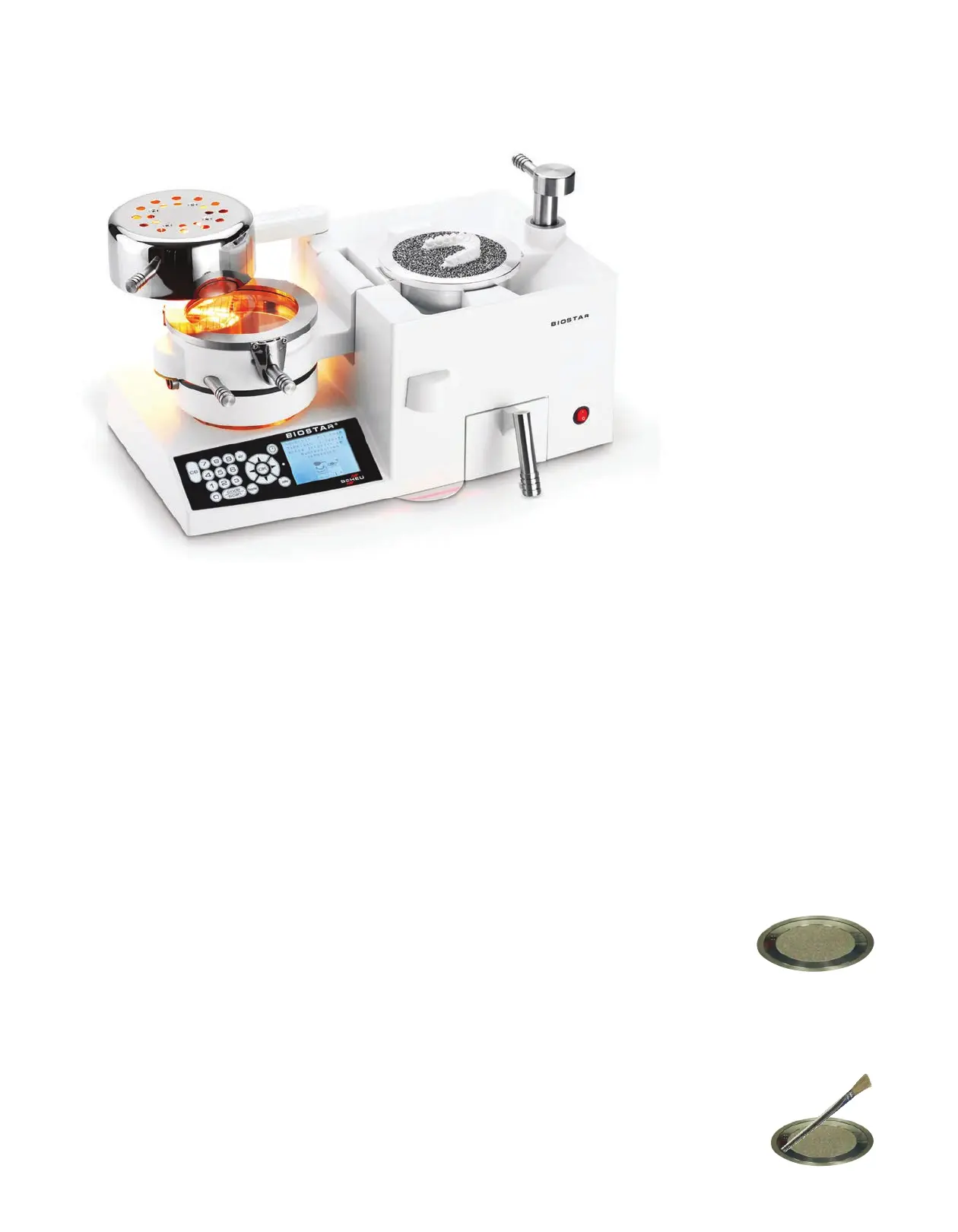

Front View
The basic components of the Biostar Scan With LCD Display include:
