Schiedel ICS - STRUCTURAL WALL BAND; STRUCTURAL WALL BAND EXTENSIONS

25
Support Components
STRUCTURAL WALL BAND
The structural wall band is supplied in two parts, a stainless
steel split band which fits tightly around the outside of the
chimney and a stainless steel back bracket. The parts are joined
together by means of the nuts and bolts provided. The use of
the item maintains a fixed distance of 50mm from the outer
casing of the chimney to the wall or fixing point. It can be
used in combination with the structural wall band extension
components to provide for adjustment to various distances
from the wall.
1. Once the position of the support has been determined,
secure the back bracket to the wall with a method of fixing
to ensure adequate attachment and support.
2. The stainless steel split band is then positioned around
the chimney section and secured with the nuts and bolts
provided to the back bracket.
3. The wall bracket provides lateral stability only, it is NOT
load bearing and is to be positioned at maximum 4 metre
centres.
STRUCTURAL WALL BAND EXTENSIONS
Available in 3 different sizes. Type W1 gives adjustment of
between 55-100mm from the wall. L1 gives adjustment of
between 100-250mm from the wall and L2 gives adjustment of
between 100-440mm from the wall.
1. Once the position of the support has been determined,
secure the back bracket to the wall with a method of fixing
to ensure adequate attachment and support.
2. Fasten the structural wall band to the extension brackets
using the nuts and bolts provided.
Int Ø 80 100 130 150 180 200 230 250 300
Ext Ø 130 150 180 200 230 250 280 300 350
A 100 120 150 170 200 220 250 270 320
B 55 55 55 55 55 55 85 85 85
Int Ø 80 100 130 150 180 200 230 250 300
Ext Ø 130 150 180 200 230 250 280 300 350
C 174 194 224 244 274 294 324 344 394
D 180 200 230 250 280 300 330 350 400
E 110 110 110 110 110 110 110 110 110

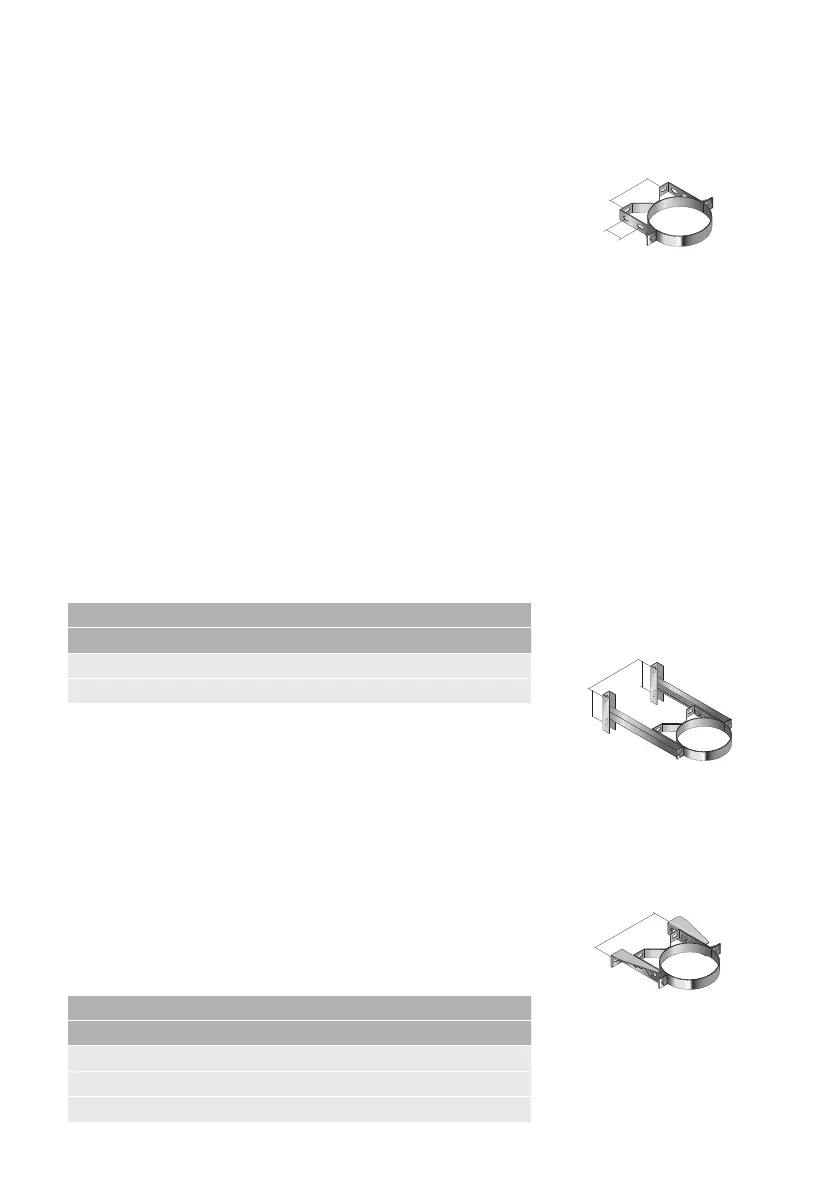

Structural Wall Band
Structural Wall Band
with Type W1
Extension Assembly
Structural Wall Band
with Types L1 & L2
Extension Assembly
B
A
C
E
E
D
