Schiedel ICS - SIDE PLATES;CANTILEVER BRACKETS; Cantilever Supports; Cantilever Support Adjustment

27
SIDE PLATES/CANTILEVER BRACKETS
Once the position of the support has been established in
relation to the chimney route, secure the side plates or
cantilever brackets to the wall using expansion bolts to ensure
adequate attachment and support (see Fig. 2).
Wall Support Side Plates
Int Ø
80 100 130 150 180 200 230 250 300
C 215 235 265 285 315 335 365 385 440
D 145 165 195 215 245 265 395 315 370
E 470 470 470 470 470 470 470 470 470
F 100 100 100 100 100 100 100 100 100
Cantilever Brackets
- Types 325, 475
A
B
Support Components
Cantilever Support Adjustment
Int Ø 80 100 130 150 180 200 230 250 300
C max
Type 325 184 164 134 114 84 64 - - -
Type 475 334 314 284 264 234 214 184 164 114
Type 570 429 409 379 359 329 309 279 259 209
Type 720 579 559 529 509 479 459 429 409 359
Type 820 679 659 629 609 579 559 529 509 459
Type 110 4 863 843 813 793 763 743 713 693 643
Type 1120 979 959 929 909 879 859 829 809 759
C min
All Types 50 50 50 50 50 50 50 50 50
Cantilever Supports
Type 325 475 570
Ø Range 80-200 80-300 80-300
C 325 475 570
D 242 242 330
Cantilever Support
Adjustment
C
Cantilever Bracket
- Type 570, 720, 820, 1104, 1120
A
B

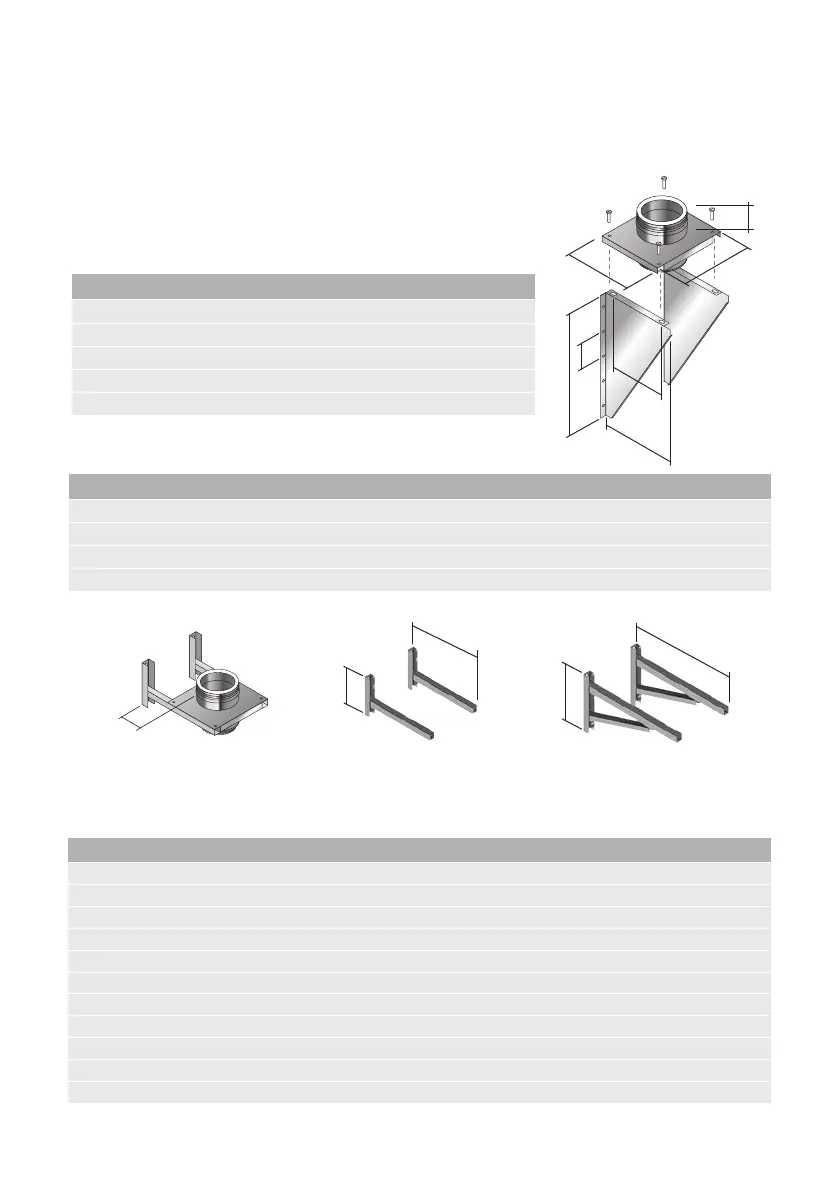

Fig. 2 Top Plate
and Side Plates
F
E
D
C
A
B
