GUY WIRE BRACKET
This component should be used to secure unsupported chimney sections above
roof level. Guy wires or preferably rigid stays (supplied by others) must be fixed to the bracket
and secured to suitable anchorage points to ensure that the chimney
sections are stable.
A maximum chimney height of 1.5 metres from the last support, or from the roof is permitted.
Additional height requirements MUST be supported at 1.5 metre intervals using the guy wire
bracket as specified above, or by using telescopic roof stays.
CEILING HANGER
This accessory is designed to support horizontal runs of the chimney
from the roof or ceiling and offers adjustment from 130mm to
1115mm.
1. Once the position of the ceiling support has been determined, the section length of uni-rax
channel must be securely fixed to the roof or the ceiling using a method of attachment to
ensure adequate attachment and support.
2. All items are assembled as shown to attach the length of studding to the channel.
3. Attach the stud connector to the length of studding and connect the eye bolt to the
connector.
4. Position the split band around the chimney section and secure to the eye bolt using the nut/
bolt provided.
5. Maximum support spacing to be no more than 1.5 metres.
Support Components

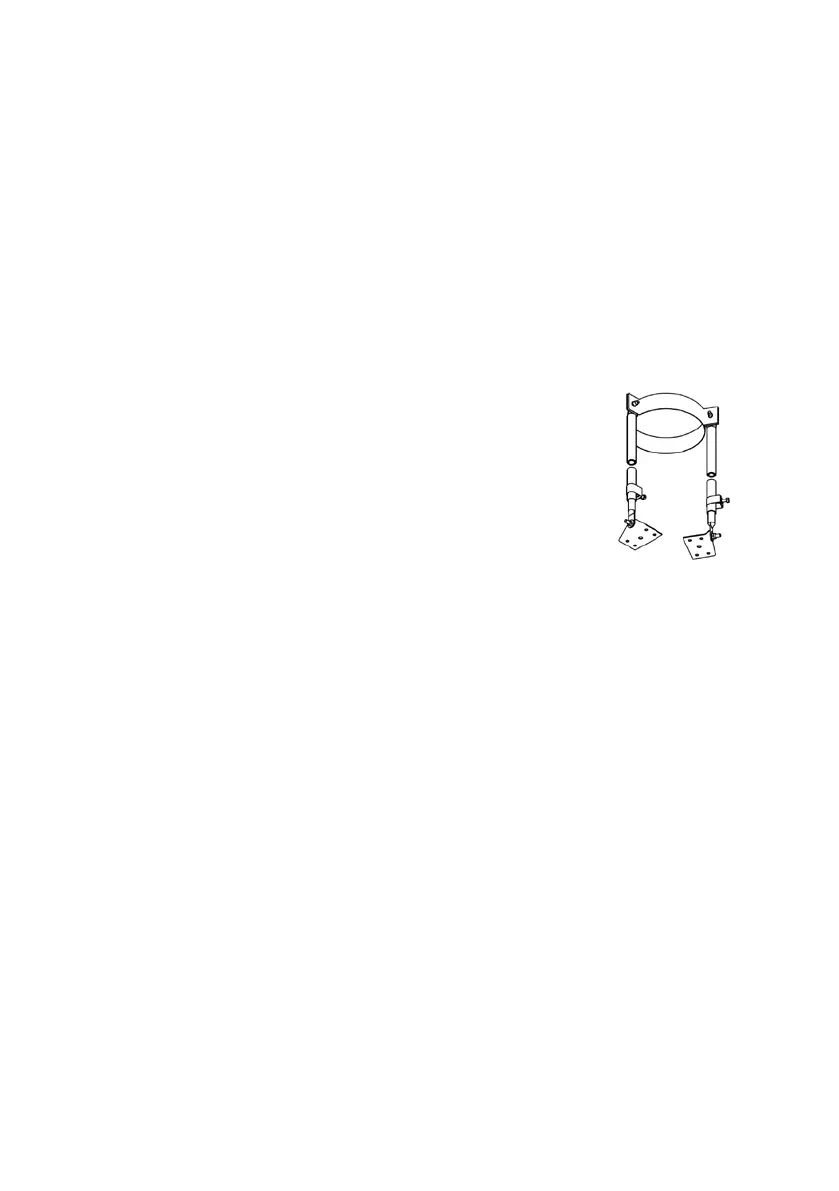

TELESCOPIC ROOF STAYS
The telescopic roof stay kit has been added to the range to
allow for extra support on chimneys above roof level, where
standard guy wires can not be fitted. The telescopic legs allow
for height adjustment from 1.6m-2.5m
Telescopic Roof Stays
