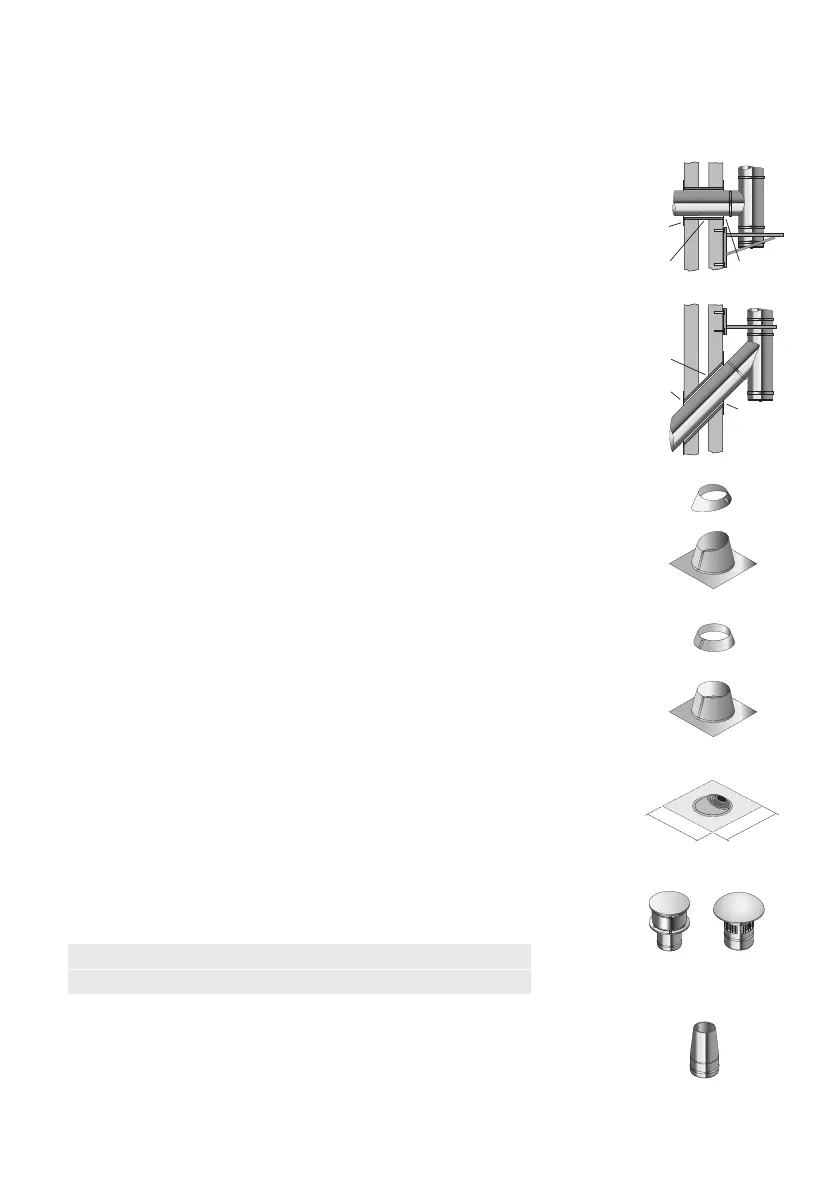

Schiedel ICS - WALL SLEEVE (90° & 135° VARIANTS); TWO PIECE TRIM COLLAR (90° & 135° VARIANTS); ANGLED FLASHING; FLAT FLASHING

35
Support Components
WALL SLEEVE (90˚ & 135˚ VARIANTS)
Wall sleeves must be used to protect the building where the chimney passes through a
wall (see Fig. 2 & 3). The 90° version is supplied as a straight length whereas the 135°
version is mitred at 45 degrees on one end. The sleeve should be cut down to the
correct length on site to fit flush with the wall (see Fig. 1 & 2). The sleeve should be
adequately weatherproofed, using a good quality building mastic and rope fibre.
TWO PIECE TRIM COLLAR (90˚ & 135˚ VARIANTS)
Two piece trim collars are fitted around the ICS pipe where it protrudes through
both the inside and the outside of the wall (see Fig. 1 & 2). They should be fastened
to the wall using an adequate method of fixing. The trim collars should be adequately
weatherproofed back to the wall and around the chimney, using a good quality building
mastic or equivalent.
ANGLED FLASHING
Manufactured in sheet aluminium for use on pitched roofs. The base of the flashing
should be nailed or screw fixed to the roof batons prior to tiling. The front edge of
the flashing should be hooked to the underside of the batons to prevent lifting. This
component should be sealed with the mastic sealant provided and MUST be used in
conjunction with the storm collar supplied.
FLAT FLASHING
Manufactured in sheet aluminium for use on flat roofs the base of the flashing should
be covered by the roofing felt and then sealed. This component should be sealed with
the mastic sealant provided and MUST be used in conjunction with the storm collar
supplied.
STORM COLLAR
The storm collar should be sealed to the outer casing of the flue immediately above the
flashing with the mastic sealant provided.
UNIFLASH
This item, which is manufactured with a malleable base and a silicone cone is used to
provide a water tight flashing around the chimney as it passes through a roof pitched
between 0-45 degrees. The cone is marked with pipe diameter sizes. 1. Cut the cone
to suit the correct diameter of chimney. 2. Slide the flashing down over the top of the
pipe and then form the base to the shape of the roof surface. 3. Seal as required.
TERMINALS
Terminals are supplied complete with a locking band. Once the terminal has been
pushed into place, the adjustment bolt on the locking band clip should be tightened to
ensure that the terminal is properly secured to the previous pipe.
Ext Ø 80-200 150-300 250-450
A 500 685 800
Uniash
A A
Flat Flashing
Storm Collar
Storm Collar
Angled Flashing
Fig. 1
Fig. 2
Trim
Collar
Wall
Sleeve
Trim
Collar
Trim
Collar
Wall
Sleeve
Trim
Collar
Tapered Terminal
Raincap
Anti Splash
Terminal
