Schlage GWE - Typical Gateway to ACP Wiring Diagrams

10

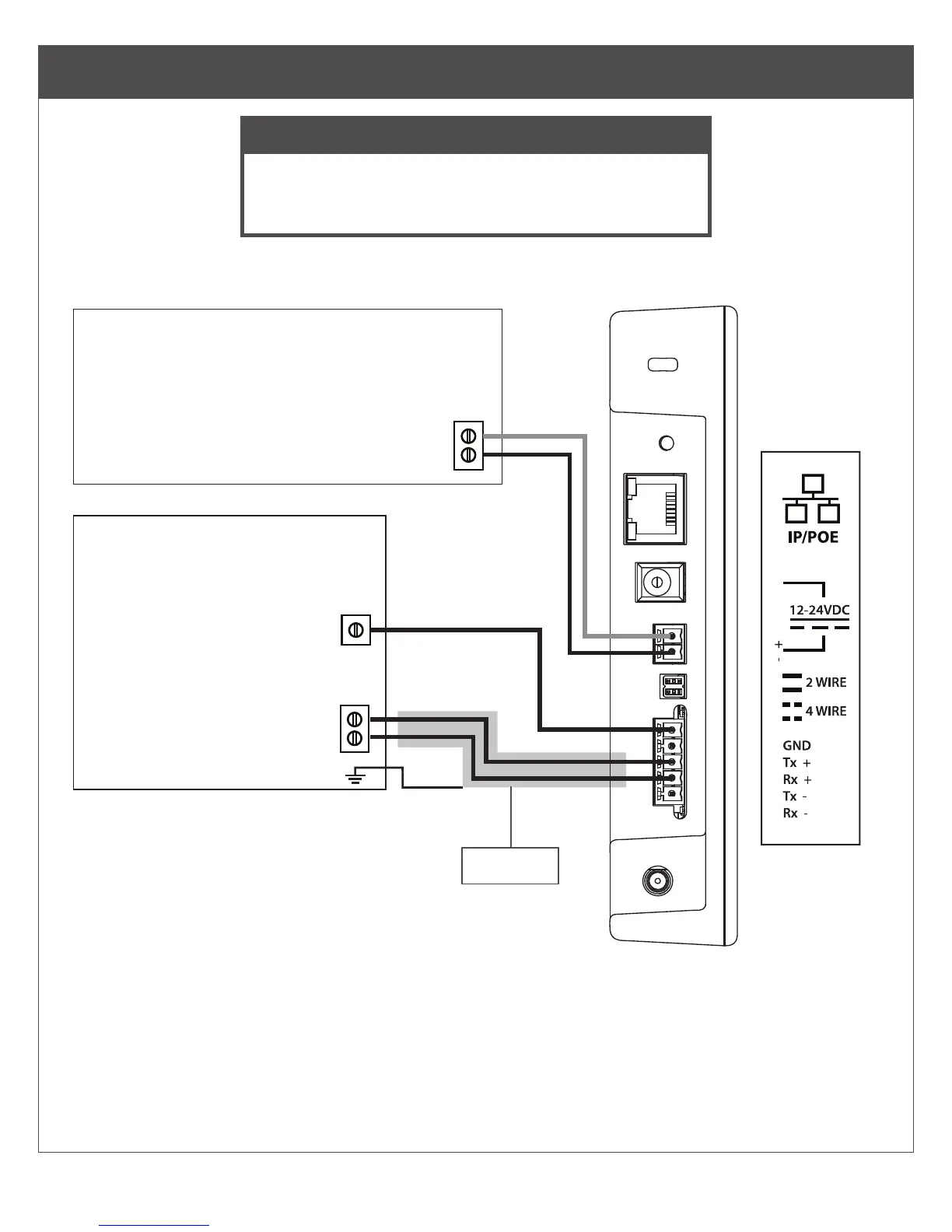

Typical Gateway to ACP wiring diagrams
WARNING
The diagrams included show typical ACP to
Gateway wiring. Refer to your ACP documentation
for specic wiring information.
B+
GND
+
−
Power Supply
UL294 or ULCS318/
ULCS319 Listed power limited
250mA 12 or 24 V DC
Access Control Panel
A
_
Shielded
2 Wire Diagram
Power Supply
UL294 Listed power limited
250mA 12 or 24 V DC
