Schlage GWE - Port Guide

3

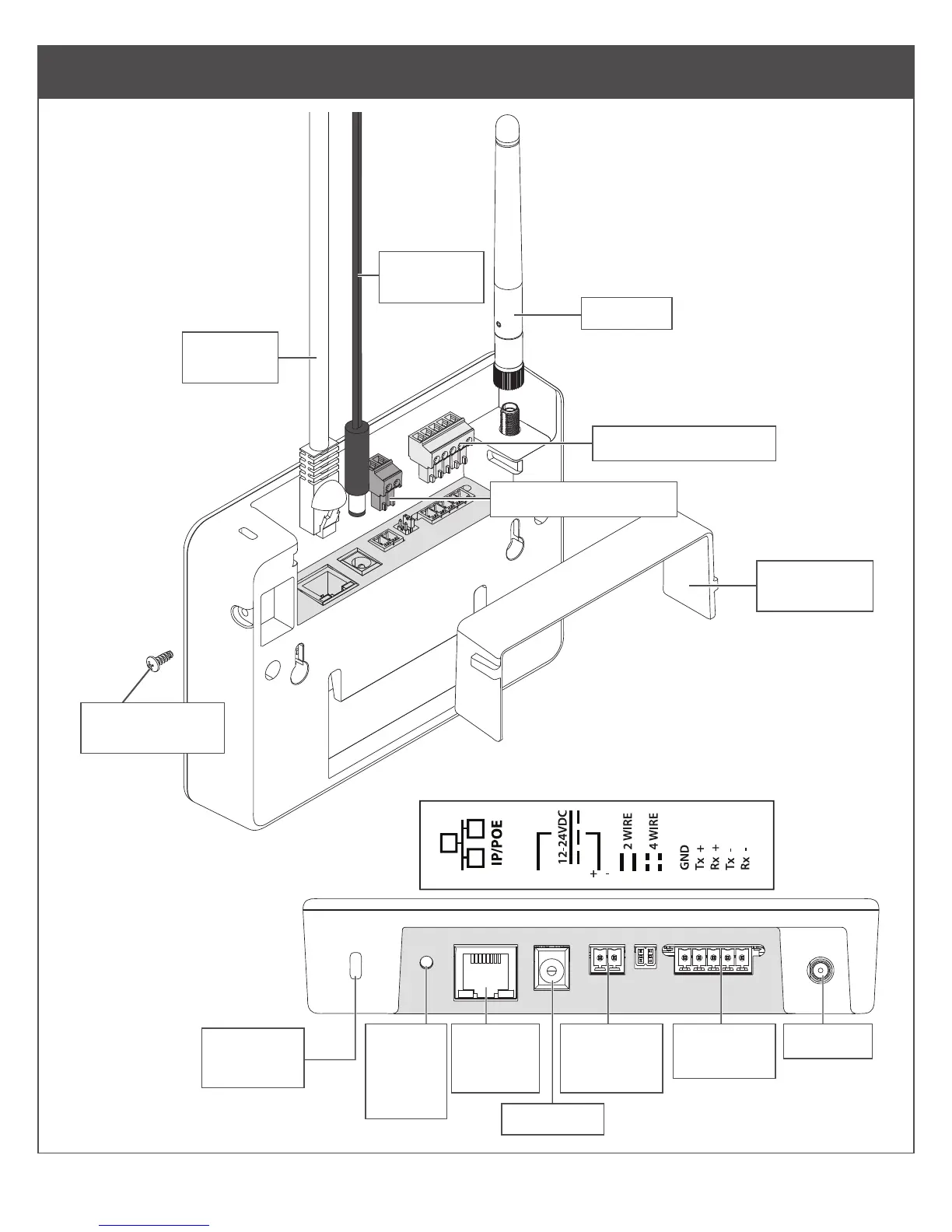

Port Guide
Antenna
RS-485 connector
ACP power connector
Wire guard
cover
24V DC
power cord
Ethernet
cable
Security screw
(optional)
Top View
Kensington
lock slot
Factory
Default
Reset
button
PoE/
Ethernet
Port
Power port
ACP DC
power
input
RS-485
Port
Antenna
*not supplied
