Table 10: RJ-45/RS232 Serial Connection
J8 Pin Signal Connection
1 RJ - not used -
2 CD - not used -
3 DTR - not used -
4 GND Ground
5 Rx Data Receive Data Input (from external device)
6 Tx Data Transmit Data Output (to external device)
7 CTS - not used -
8 RTS - not used -
1234567
J4 Pins

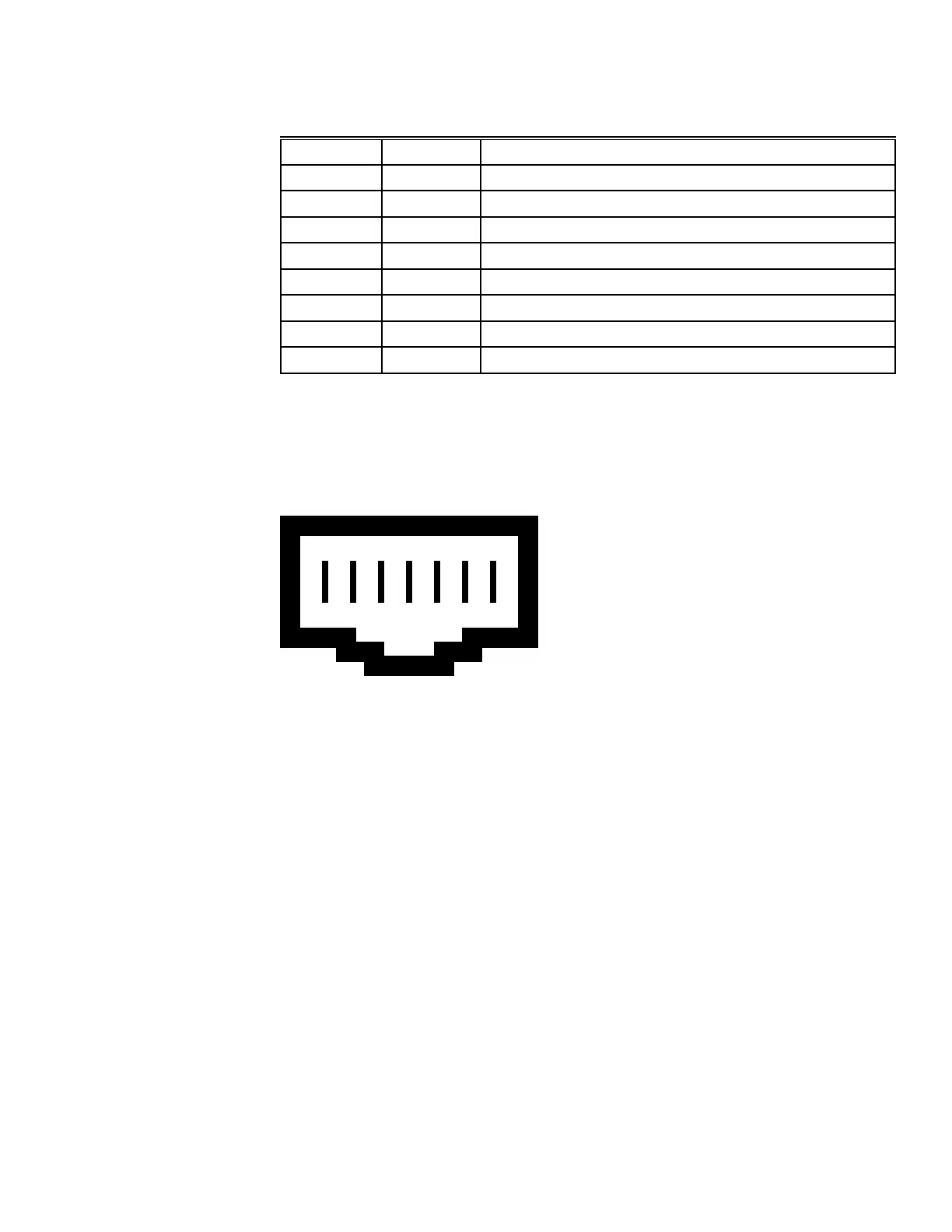

Figure 12-5: J4 - RJ-45/RS-232 Jack Pinout
