L Service Manual
112
Small Format Interchangeable Cores
L-Series (except L9060/LV9060 Outside)
L-Series L9060/LV9060 Outside
Other Straight Cam Applications
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder with Compression
Ring & Spring:
L & N Escutcheons
Everest
®
Restricted Combinated Core
80-308
L583-255
Construction Core Disposable 80-115
Keyed 80-138
Housing Less Core 80-108
Cylinder with Compression
Ring, Compression Spring
and ¹⁄₄'' Blocking Ring:
Rose Trim
Everest Restricted Combinated Core 80-301
Construction Core Disposable 80-109
Keyed 80-131
Housing Less Core 80-101
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder with Compression
Ring & Spring:
L & N Escutcheons *
Everest Restricted Combinated Core 80-304
K510-680
Construction Core Disposable 80-112
Keyed 80-134
Housing Less Core 80-104
Description Cylinder Mechanism Complete Cylinder Cam
Cylinder with Compression
Ring, Compression Spring,
and ¹⁄₄'' Blocking Ring
Everest Restricted Combinated Core 80-302
K510-730
Construction Core Disposable 80-110
Keyed 80-132
Housing Less Core 80-102
* For rose trim also order 36-082-050 blocking ring.

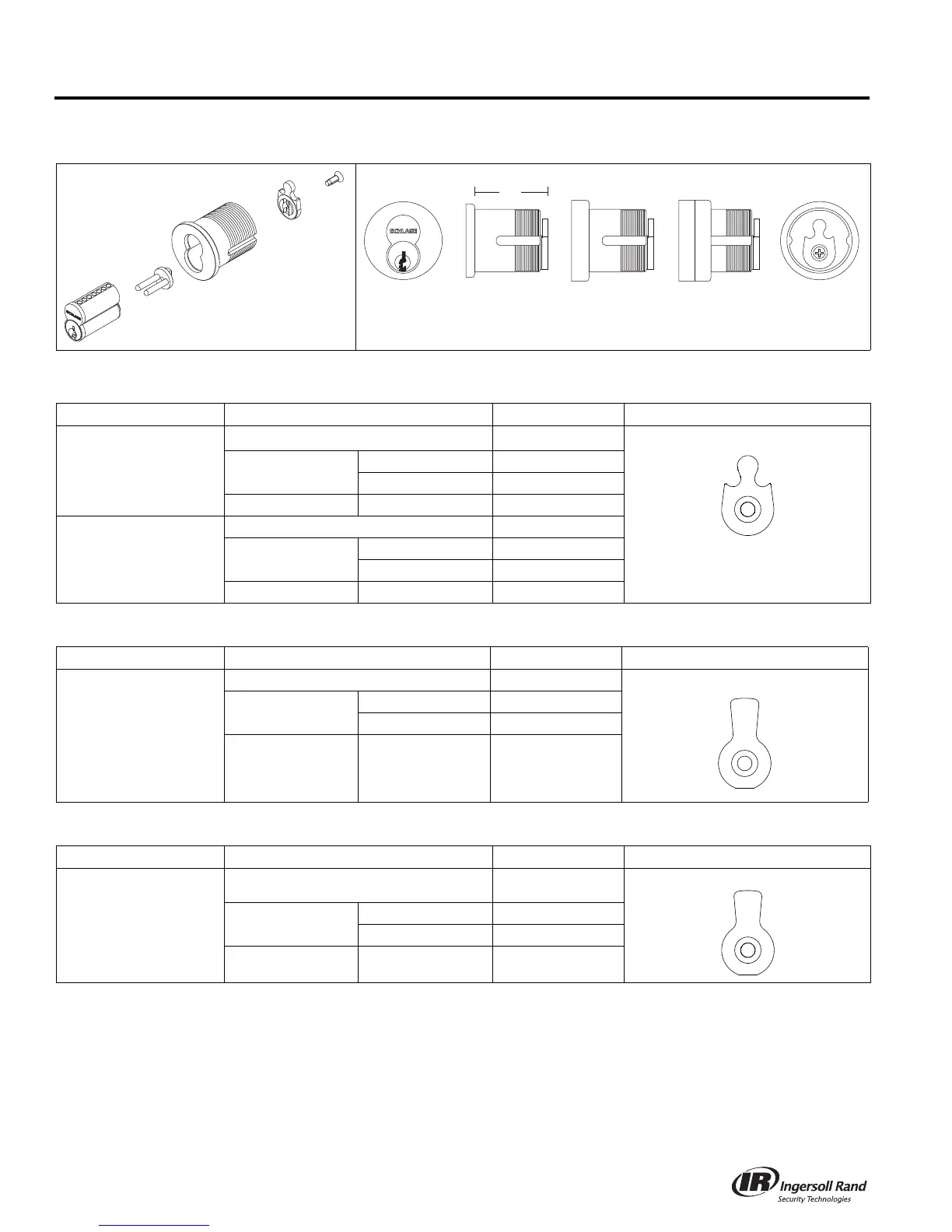

Exploded View
Cylinder OnlyFront Cylinder with
Compression
Ring & Spring
Cylinder with
Blocking Ring
Back
1³⁄₈"
