L Service Manual

Lock Case Assemblies

L9176

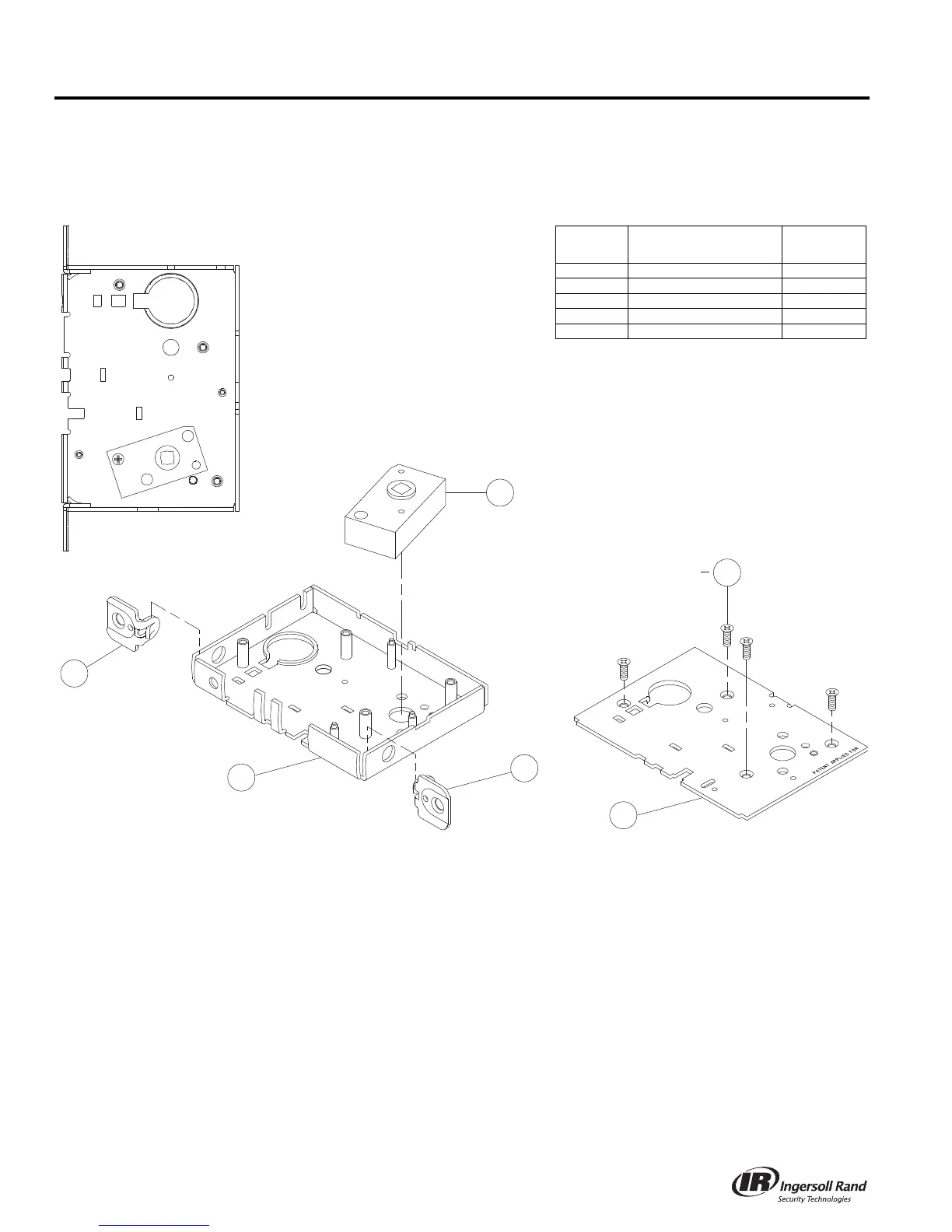

Assembled Lock Case L283-145

NOTE: Lock case assembly shown for LH and LHR doors.

Number Description

Part

Number

13 L9000 Lock Case L283-112

42 Spindle Anchor L583-057

51 1¹⁄₄" Faceplate Tab L583-426

52 Case Cover Screws L583-454

58 Lock Case Cover L583-496

Default Chapter3
