Service Manual L
61

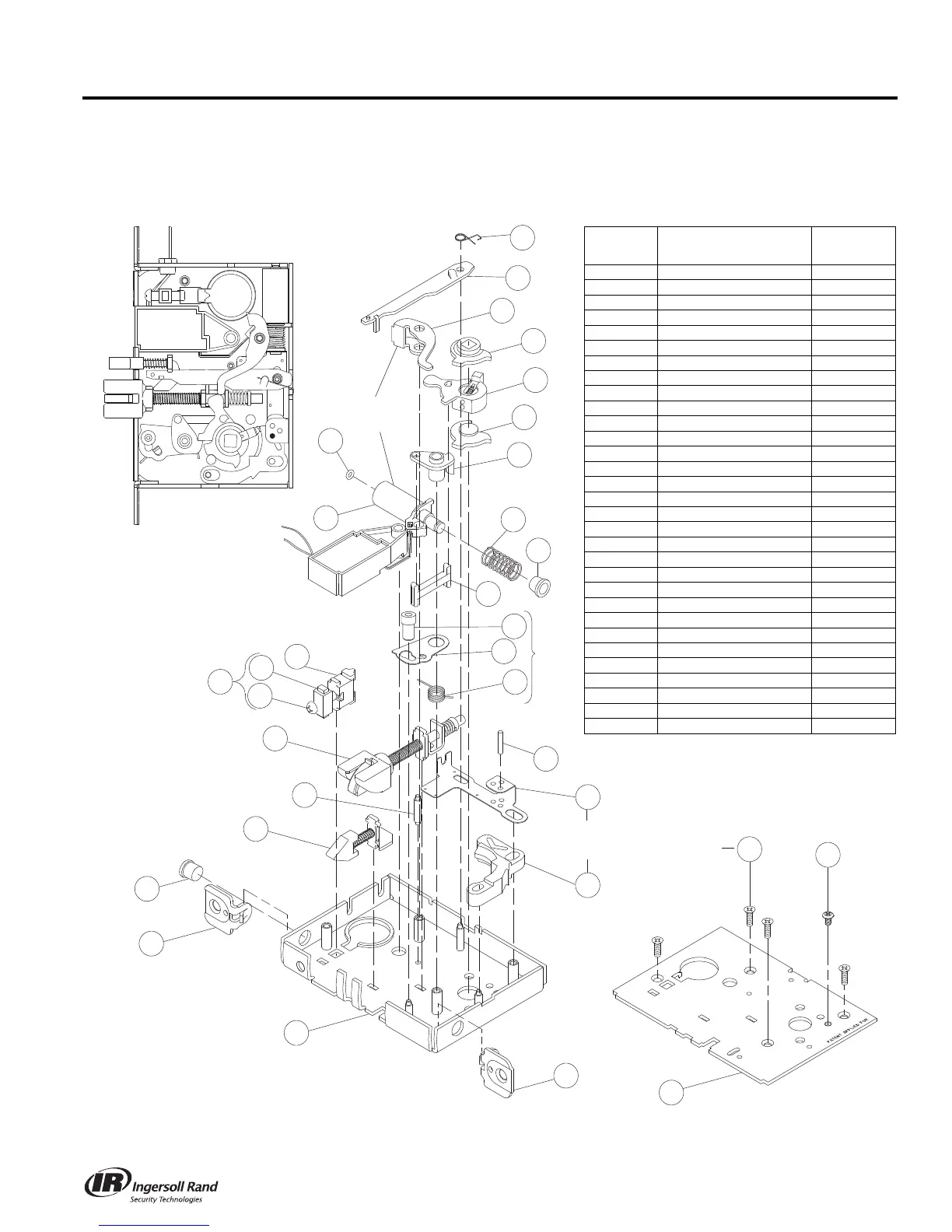

Lock Case Assemblies
LV9080EL
Assembled Lock Case L283-174
** Please see “Assembly of Lock Case Parts” on page 87.
NOTE: Lock case assembly shown for RH and RHR doors. See page 117 for instructions on changing the lock hand.
(couple before
assembly)**
1
62
60
63
64
61
54
4
58
52
26
24
22
33
50
25
39
55
10
6
56
53
5
51
51
13
15
2
38
46
(couple before
assembly)**
44
45
9
**
Number Description
Part
Number
1 EL Lock O-Ring 36-080
2 EL Lock Bushing K510-842
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
9 Solenoid & Driver L283-053
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
15 Standoff Post L583-004
22 Retractor Link L583-024
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
33 Stop Spring L583-044
38 Link Pin L583-050
39 Transfer Lever L583-051
44 Spring Retainer L583-063
45 Solenoid Spring L583-064
46 Electrified Link L583-065
50 Auxiliary Stop L583-196
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
60 Retractor Lever Assy L283-147
61 Crank Retractor L583-383
62 Bottom Hub L583-386
63 Top Hub L583-387
64 Retractor Catch L583-345
