Schlage M490DEP - Advanced Wiring and Settings; Connect Wiring to Board (Plus Model)

8

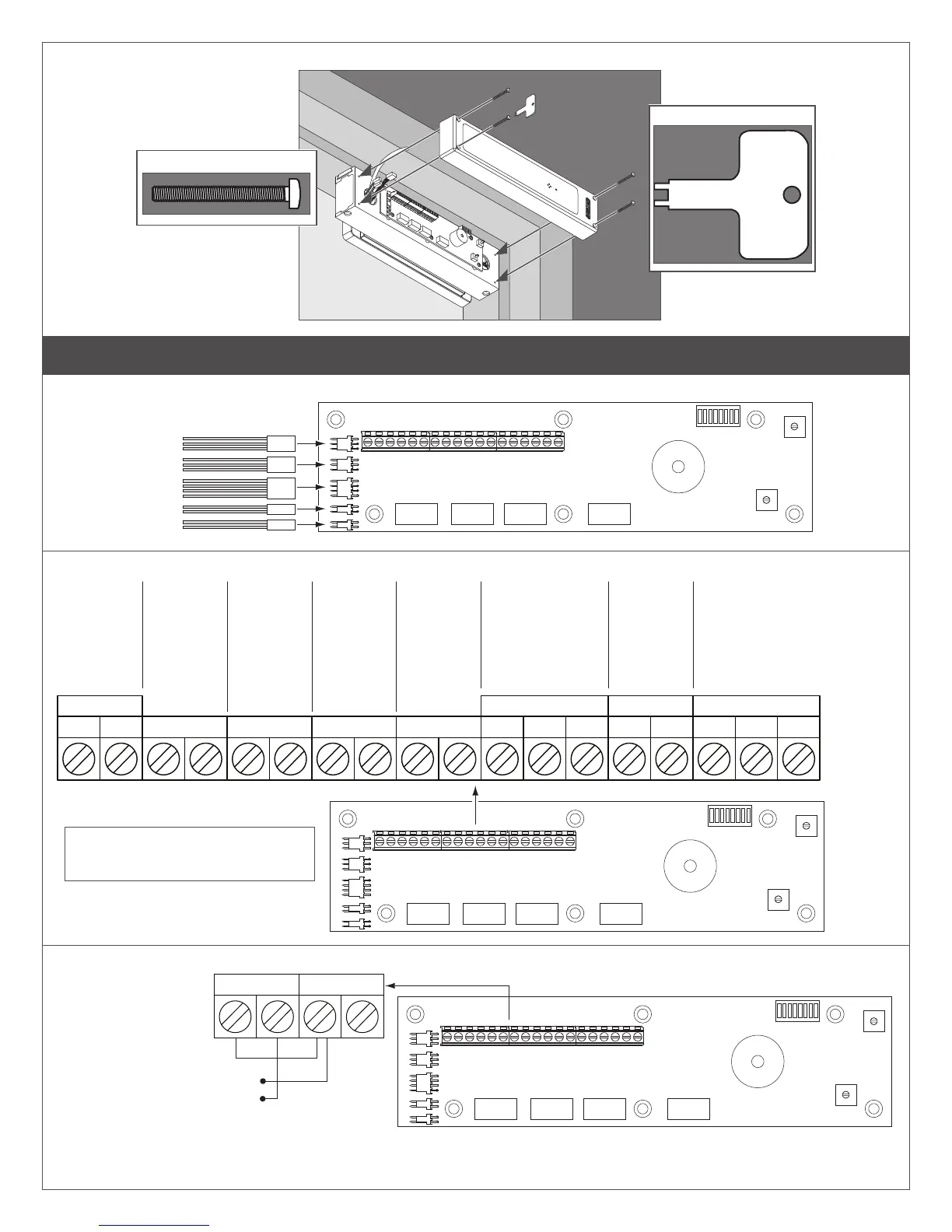

5c Install cover using spanner wrench and security screws.
Actual Size
Spanner Wrench
6 Connect wiring to board (plus model).
6a Connect plugs to board.
DPS2
DPS1
COILS
MBS2
MBS1
6b Connect wires to board.
+ -
FIRE
AUX
CNO NOCNC NO C NC
PWR ALRMDPS MBS
RLS
Power Input
12/24V DC
UL 294 Listed,
power limited,
Class 2, power
supply must be
used
RST
Fire Alarm Input
Apply a
normally closed
dry contact or a
jumper if not
connected to fire
alarm.
Release Input
Dry contact
closure will
release lock for
the time delay
period.
Reset Input
Dry contact
closure resets
lock in alarm
condition.
Alarm Output
(Optional)
Contacts change
state during an
alarm condition.
30V@1A
resistive
DPS Output
(Optional)
Contacts change
state when door is
closed.
12V@200mA
24V@100mA
resistive
MBS Output
(Optional)
Contacts change state when magnet
is properly bonded to its armature. Poor
bond can be caused by low voltage,
misalignment, or damaged mating surfaces.
30V@1A
resistive
Auxiliary Input
Apply a
normally closed
dry contact or a
jumper if not
using. Opening
dry contact
places lock into
delayed egress
countdown.
For wire gauge and length
specifications, see page 2.
Forwiregaugeandlengthspecications,
see “Wire Gauge and Length
Specications” on page 2.
6c (Optional) To use one access control for both Reset and Release, wire as shown.
RLSRST
Dry contact closure
From any access control system
Will release lock in locked condition
or reset lock in alarm condition
