To Next PageTo Next PageWhat to do if my Schlage Lock has power but won’t lock and the LED is Green?
If your lock has power but isn't locking and the LED is green, it could be due to the fire alarm not being connected or an open connection. To resolve this, ensure that SW4-7 is turned ON, and then remove and re-apply power.
What does it mean if the LEDs flash once quickly on my Schlage Lock?
LEDs flashing once quickly can indicate that the relock delay is set to 0 seconds or that the keypad hasn't been initialized.
Why does my Schlage Lock “hum” or vibrate noisily when energized?
A humming or vibrating noise typically indicates that the magnet, armature, or washers are not properly installed.
Why won’t my Schlage Lock go into delayed egress?
Your Schlage Lock might fail to enter delayed egress for a few reasons: * Incorrect dipswitch settings. * Improper installation of the armature washers. * Misalignment between the magnet and armature.
Why does my Schlage Lock go into delayed egress upon powerup?
If your lock immediately goes into delayed egress when powered on, check if the armature washers are installed correctly and ensure there's proper gap between the magnet and armature.
General| Series | M Series |
|---|---|
| Key Override | Yes |
| Handing | Non-handed |
| ANSI Grade | Grade 1 |
| Backset | 2-3/4" |
| Bolt Throw | 1" |
| Keyway | Schlage C |
| Security | High |
| Door Thickness | 1-3/4" to 2-1/4" |

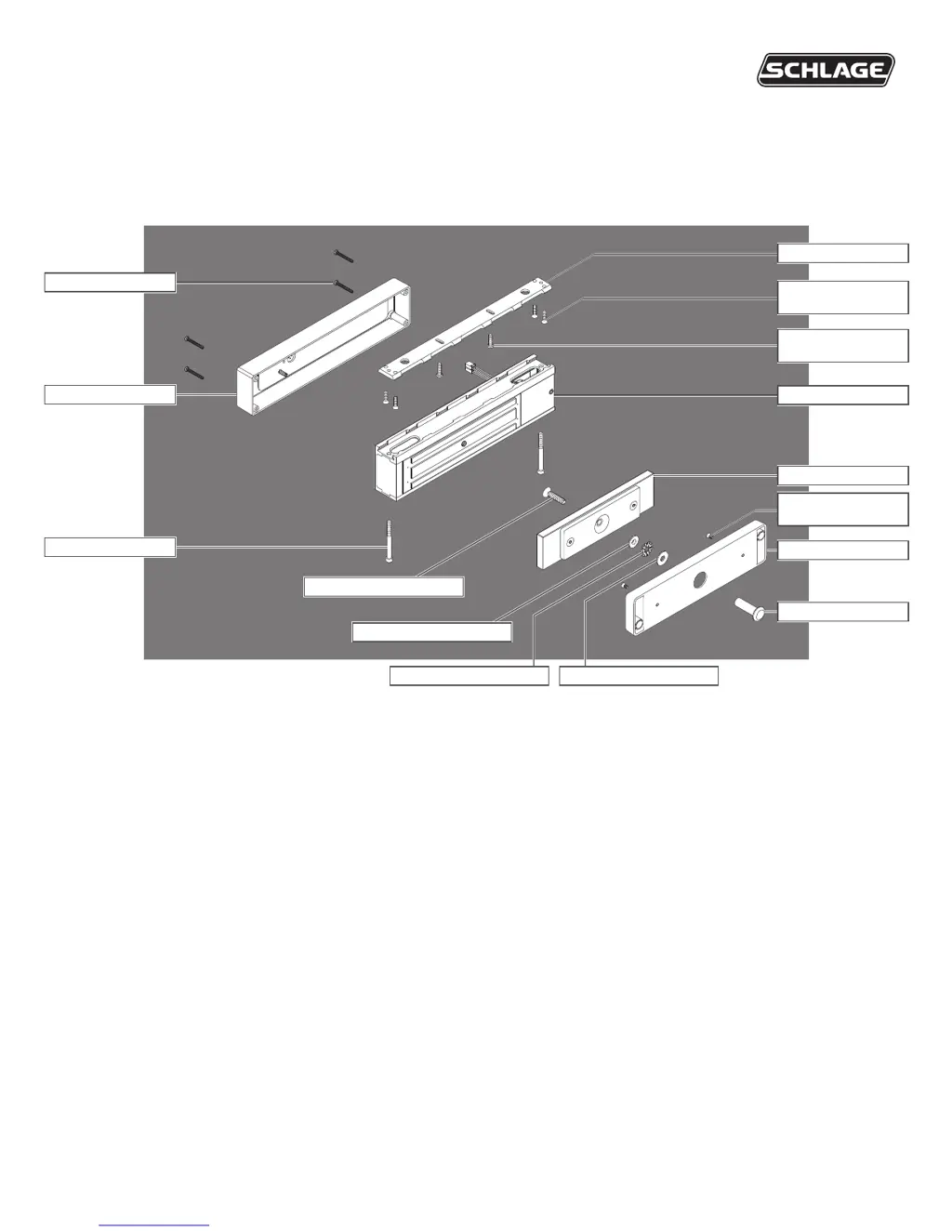

Details product features, available models, and their differences.
Provides guidelines for selecting appropriate wire gauge and maximum length.
Highlights critical safety warnings and cautions for installation and operation.
Covers essential pre-installation checks, UL requirements, and electrical specs.
Determine magnet orientation, reorient components, and mark mounting holes.
Install armature holder and armature plate based on door material.
Attach bracket, align magnet, verify plunger, and securely fasten bracket.
Connect wires for basic/plus models and set dip switches for desired functions.
Instructions for installing a second lock and communication cable for double doors.
Secure covers using spanner wrench and security screws.
Explains LED indicators and audible signals for various lock conditions.
Guides on diagnosing and resolving common lock operational problems.
Details the specific operational description for the BOCA option.
