*P516-128*

P516-128

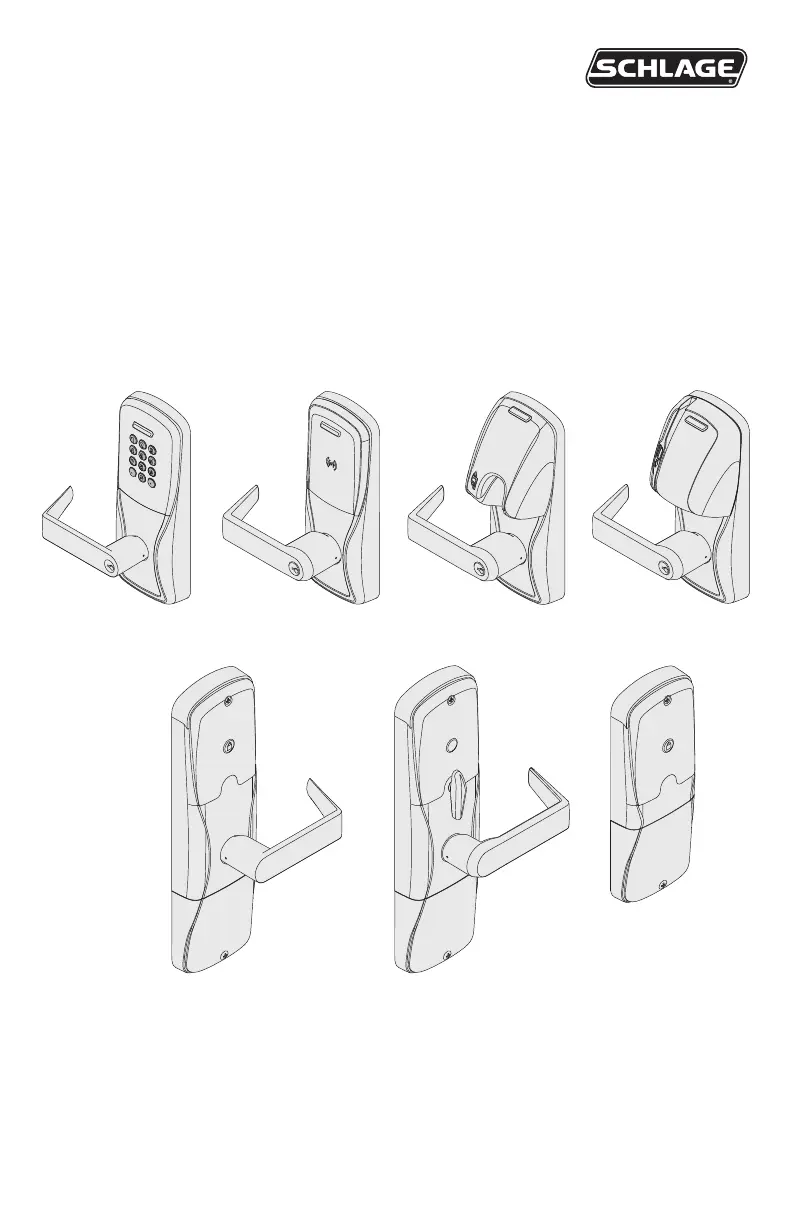

AD-300

AD-302

Networked hardwired lock user guide

Instructions for adaptable series networked hardwired locks

Para el idioma español, navegue hacia www.allegion.com/us.

Pour la portion française, veuillez consulter le site www.allegion.com/us.

Table of Contents

Other manuals for Schlage AD-300

Instructions12 pages

Installation Instructions And Owner's Manual2 pages

Installation Instructions8 pages

Questions and Answers

Z
zoliverAug 17, 2025
How to fix a Schlage lock when the beeper doesn't sound and the keypad doesn't light?
- J
  James BestAug 18, 2025
  This issue may occur if the reader is not properly seated into the front escutcheon, if the reader connector has bent pins, if the through door ribbon cable is not properly plugged in, or if the wired power is improperly connected. Check that the reader is fully seated into the front escutcheon and that there are no bent pins in the reader connector. Also, check that the through door ribbon cable is plugged in correctly, ensuring the red wire is on the left and not pinched in the door. Finally, verify that the wired power is connected correctly.
J
Julia MartinAug 20, 2025
What to do if the Schlage door lock reader is not working?
- C
  Candace BartlettAug 20, 2025
  If the reader isn't working, smart cards aren't reading, or magnetic swipe cards aren't reading correctly, check the following: * Ensure the through-door ribbon cable isn't pinched and is properly seated. * Correct the Smart card format using the SUS by selecting AD-300/AD-302 “Lock Properties”, “Reader” tab, and “Smart cards in use”. * Use the SUS to change “Mag Track in Use” by selecting AD-300/AD-302 “Lock Properties”, “Reader” tab, and “MAG Card Track selection”.
K
Kendra MendezAug 23, 2025
How to fix Schlage door lock when the keypad does not light?
- D
  David RichardsonAug 23, 2025
  If the lock beeper doesn't sound and the keypad doesn't light when you press the Schlage button, it could be due to several reasons: * The reader may not be properly seated in the front escutcheon. * The reader connector may have bent pins. * The through-door ribbon cable may not be correctly plugged in (the red wire should be on the left and not pinched). * The wired power may be improperly connected. Check each of these to ensure they are correctly installed.
R
Robert ParrishAug 26, 2025
What to do if my Schlage Locks AD-300/AD-301 is not communicating with the access control panel?
- B
  Brian MooreAug 26, 2025
  If your Schlage AD-300/AD-301 lock isn't communicating with the access control panel, it might be due to a couple of reasons. First, ensure that the Wireless Communication Module is properly installed and fully seated, and that there are no bent pins on the connector. Second, confirm that the AD-300/AD-301 is correctly wired to the access control panel and that the access control panel software has the AD-300/AD-301 door configured properly. For a 993 exit trim, ensure the Request To Exit switch is installed.
A
ashleyterryAug 27, 2025
How to fix Schlage Locks reader if the beeper doesn't sound and the keypad doesn't light?
- L
  Laura ConradAug 28, 2025
  If the Schlage lock beeper isn't sounding and the keypad isn't lighting up when you press the Schlage button, there are a few things you can check. First, make sure the reader is fully seated into the front escutcheon. Next, inspect the reader connector for any bent pins. Also, verify that the through door ribbon cable is plugged in correctly, ensuring the red wire is on the left and not pinched in the door. Finally, check that the wired power is connected correctly.
A
amanda27Aug 30, 2025
What to do if my Schlage AD-300 reader is not working and the smart or magnetic swipe card is not reading?
- J
  Jeffrey DaltonAug 30, 2025
  If the reader on your Schlage lock isn't working and the smart card or magnetic swipe card isn't reading correctly, start by checking that the through door ribbon cable isn't pinched. If you're using a smart card, change the smart card format using the SUS by selecting AD-300/AD-301 “Lock Properties”, “Reader” tab, and “Smart cards in use”. For magnetic card readers, use the SUS to change “Mag Track in Use” by selecting AD-300/AD-301 “Lock Properties”, “Reader” tab, and “MAG Card Track selection”; the default for all Magnetic Card Credential Readers is “Track2”.
S
Samuel HunterSep 1, 2025
Why does my Schlage Locks AD-300/AD-301 not grant access immediately?
- G
  Gina PhillipsSep 2, 2025
  The time it takes for the Schlage AD-300/AD-301 lock to grant access is controlled by the access control panel. Check the access control panel configuration.
J
Janet GonzalesSep 4, 2025
Why is my Schlage AD-300/ AD-301 lock not communicating with the access control panel?
- B
  Bryan LangSep 4, 2025
  The RS485 Communication Module might not be properly installed, or data transmission to the access control panel might not be successful. Ensure that the RS485 Communication Module is correctly installed and fully seated, and that there are no bent pins on the connector. Verify that the AD-300/AD-301 is wired to the access control panel. Check that the access control panel software has the AD-300/AD-301 door configured properly. On a 993 exit trim, ensure the Request To Exit switch is installed.
K
Kristen YoungSep 7, 2025
What to do if my Schlage lock reader is not working?
- E
  Eric WilsonSep 7, 2025
  The through door ribbon cable may be pinched, the Smart card default of the card reader may not be correct for the Smart card, or the magnetic swipe card data may be on Track1 or Track3. Check that the through door ribbon cable is not pinched and is seated properly. Change the Smart card format using the SUS. For magnetic swipe cards, use the SUS to change “Mag Track in Use”. Select AD-300/AD-301 “Lock Properties”, “Reader” tab, and “MAG Card Track selection”.
A
Andrew JacksonSep 9, 2025
Why does my Schlage AD-300/ AD-301 lock not grant access immediately?
- M
  michaellopezSep 9, 2025
  The time it takes to grant access is determined by the access control panel. Verify the configuration of the access control panel.

Summary

Getting started

Construction access mode

Locks with keypads Construction access mode

Locks with card readers - Create a master construction credential

Explains creating a master construction credential for card readers to manage access.

Lock address setup

Manually set the RS485 address

Step-by-step guide to manually setting the RS485 address without RS485 communication.

Set the RS485 address with Schlage utility software (SUS)

Connect to an access control panel

Test lock operation

Mechanical test

Electronic test

Reset to factory default settings

Level 1 factory default reset

Resets configurations and settings in the main controller, but not the reader.

Level 2 factory default reset

Resets all configurations and settings in both the lock and the reader.

Communication failure

Power failure

Power Failure Modes

LED and beep reference

Schlage button LED

Troubleshooting

Summary

Getting started

Construction access mode

Locks with keypads Construction access mode

Locks with card readers - Create a master construction credential

Explains creating a master construction credential for card readers to manage access.

Lock address setup

Manually set the RS485 address

Step-by-step guide to manually setting the RS485 address without RS485 communication.

Set the RS485 address with Schlage utility software (SUS)

Connect to an access control panel

Test lock operation

Mechanical test

Electronic test

Reset to factory default settings

Level 1 factory default reset

Resets configurations and settings in the main controller, but not the reader.

Level 2 factory default reset

Resets all configurations and settings in both the lock and the reader.

Communication failure

Power failure

Power Failure Modes

LED and beep reference

Schlage button LED

Troubleshooting

Schlage AD-300 Specifications

General

Brand	Schlage
Model	AD-300
Type	Electronic Deadbolt
Power Source	Battery
Lock Type	Deadbolt
Keyway	Schlage C
ANSI Grade	Grade 2
Access Method	Keypad
Backset	2-3/8 inch or 2-3/4 inch
Battery Type	4 AA
Handing	Reversible
