Lock Installation
1 Prepare for installation.

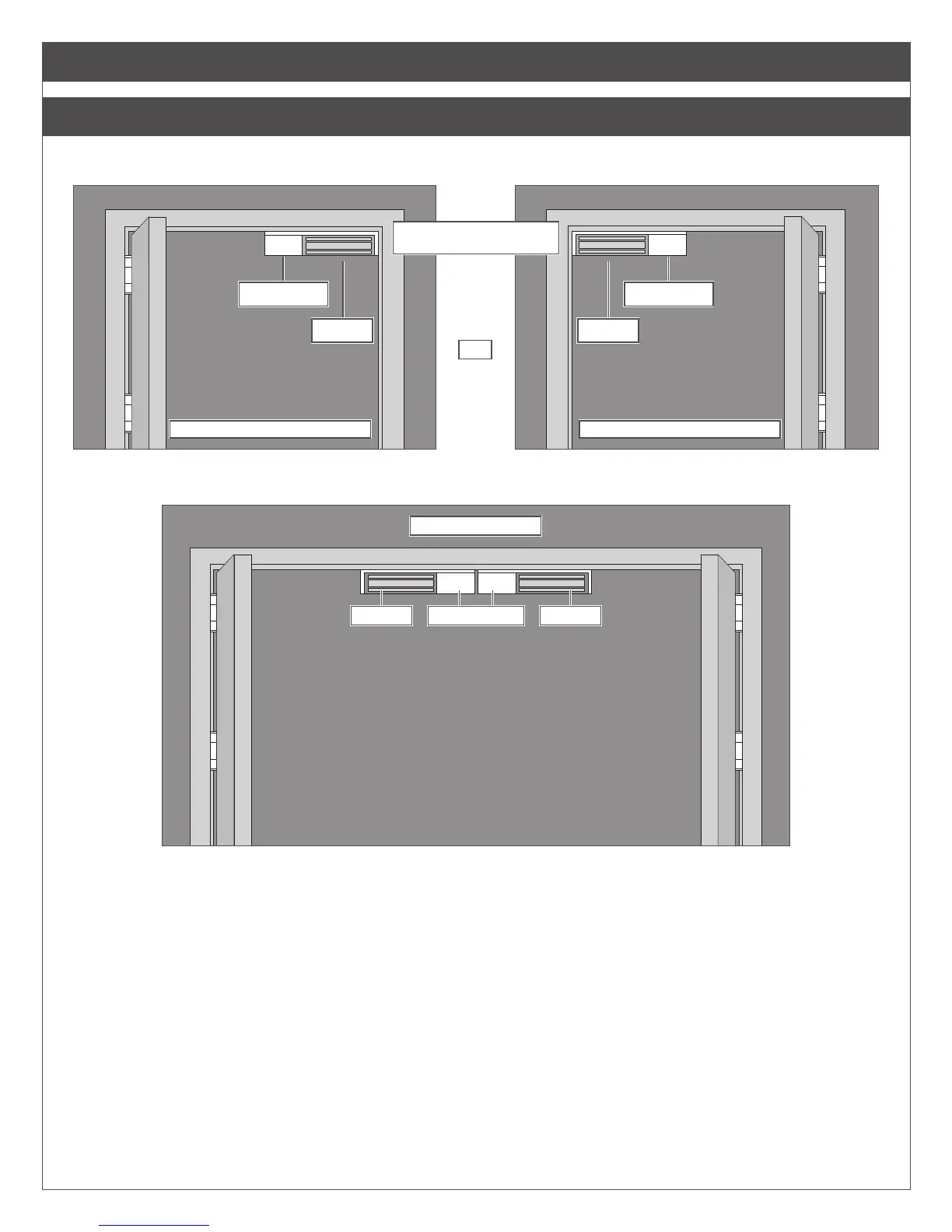

1a Determine proper magnet orientation.
Single Door
Wiring Cover
Magnet
LHR Door - Shown from Exterior
Wiring Cover
Magnet
RHR Door - Shown from Exterior
Magnet should be placed
opposite of door hinges.
OR
Double Door
Locks should be installed with wiring covers in the middle, so the magnet in one of the locks must be reoriented.
Shown from Exterior
Magnet MagnetWiring Covers
To Next Page
