4

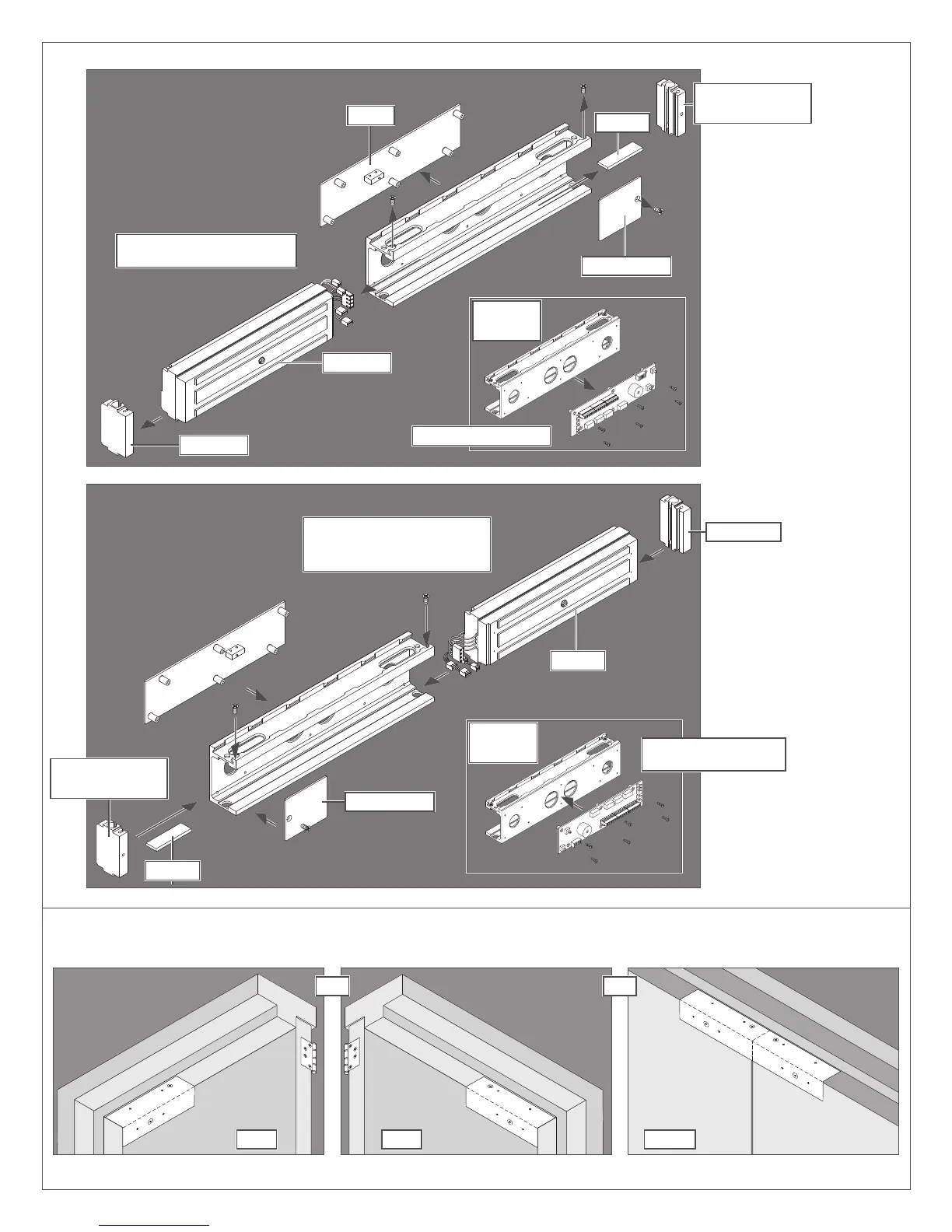

1b Reorient magnet and board (if necessary).
End Block
Wiring Cover
Magnet
Spacer
End Block
(with screw holes)
Front Side
of Lock
c. Rotate magnet, end
blocks and wiring cover as
shown, then reassemble.
d. Rotate board 180°,
then reassemble.
End Block
(with screw holes)
Magnet
End Block
Wiring Cover
Spacer
Board
Front Side
of Lock
a. Remove screws, wiring
cover and end blocks.
b. Remove board.
1c Place template and mark holes.
a. Place template on top corner, opposite of hinges.
b. Mark holes and prepare them per template.
LHR RHR Double
OR OR
