Operating Instructions- The bp408 Safety Circuit - UCM requirements 9
3 UCM requirements
3.1 Requirements regarding certified safety devices
The safety precautions against unintended car movements have been developed
further and are required as UCM as part of EN 81-20/-50 and EN 81-1/-2.
This standard applies for all new installations and modernizations from end of 2014.
In accordance with the new requirements, all elevators must be fitted with a
certified safety device, which prevents uncontrolled movements of the car/cabin
with the door opened at a level, but which brings the car/cabin to a stop within a
designated area as shown in the figure in any case.

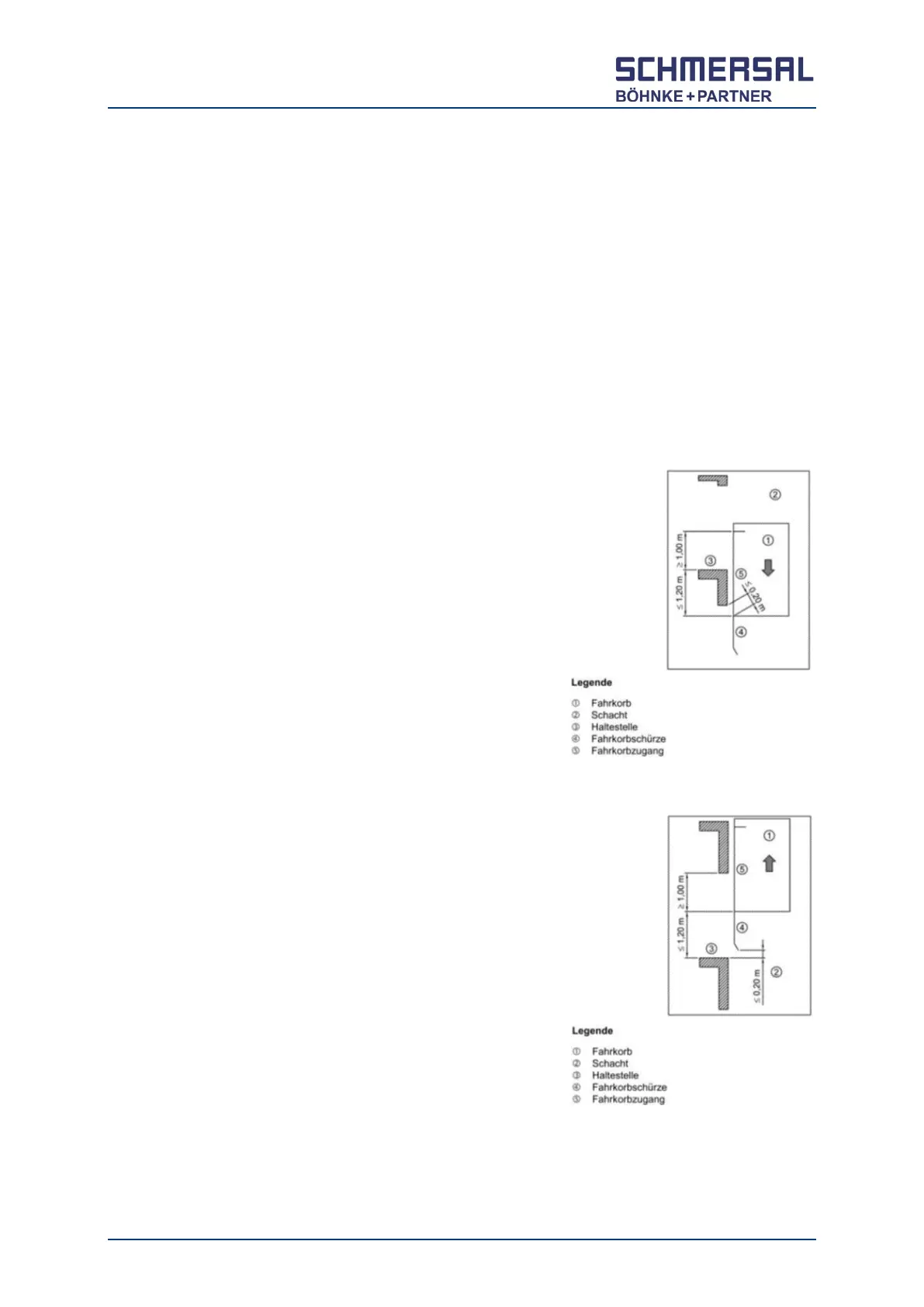

3.1.1 Fig. 1: Cabin moving downward.
The cabin floor must come to a stop max. 1.2 m
beneath the level position. There must be a
residual space of at least 1.0 m between the
upper edge of the cabin and the stepping edge
of the shaft.
3.1.2 Fig. 2: Cabin moving upward
The cabin floor must come to a stop max. 1.2 m
above the level position. There must be a
residual space of at least 1.0 m between the
cabin floor and the upper edge of the shaft
access. The apron fitted beneath the cabin may
only allow for a gap of max. 200 mm.
