schmersal SLC440 - Fixing

13
SLC440
Operating instructions
Safety light curtain
EN

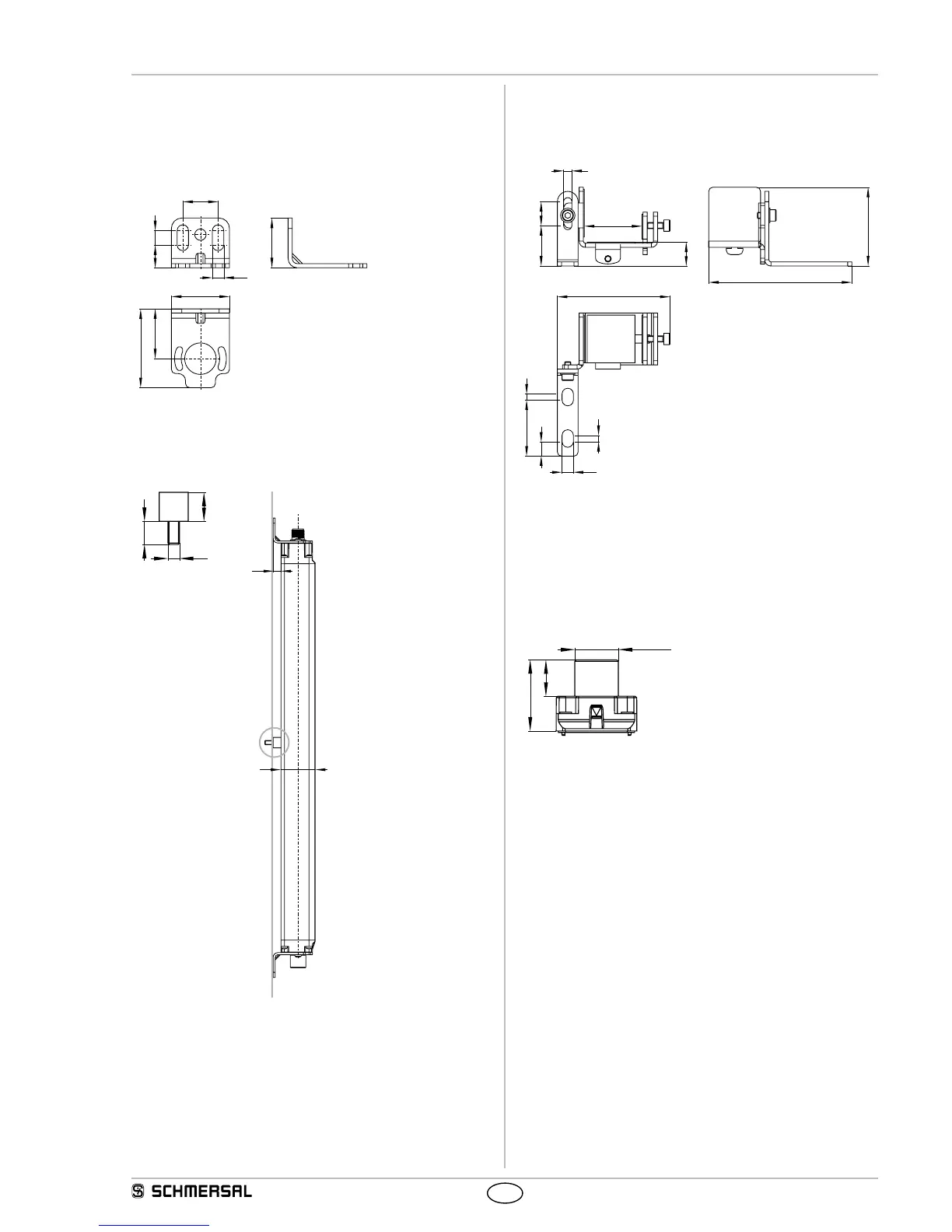

3.7 Fixing
Included in delivery
Mounting kit MS-1100
The mounting kit consists of 4 steel angles and 8 fixing screws.
5,5
17
28
24
7
11
24
38
MSD5 spacer
The kit comprises 2 spacers and is included in delivery as of a pro-
tection field height of 1050 mm. The spacers must be used in case of
vibrations.
M4
10
8
33
7,7
Optional accessories
Centre support MS-1110
Mounting kit consists of 2 steel angles and 4 spacers for central fixing
4
27,8
11,5
19,5
11,5
54,3
69
38
5,5
3
27
3
7
Integrated status indication
The status indication at the receiver indicates the switching condition
of the outputs OSSD1 and OSSD2 and the function restart interlock /
setup.
Green = outputs H-signal 24V
Red = outputs L-signal 0V
Yellow = setting mode / restart interlock (manual reset)
24,5
12,5
¤15 0,1
±
The integrated status indication does not change the mounting di-
mension B or the overall length C. The overall length of the Ls receiver
changes by 10 mm.
MSD4 Vibration damper
Kit consists of: 8 vibration dampers 15 x 20 mm, 8 M5 cylinder head
screws with hexagon socket, 8 spring washers. Mounting using MS-1100.
The MSD4 vibration damper kit is recommend to be used for damping
vibrations and oscillations on the SLC440. For applications with higher
mechanical stresses, e.g. presses, punching machines, we recommend
the MSD4 kit. In this way, the availability of the SLC440 is increased.
