User Manual - LLS 3
Page 21

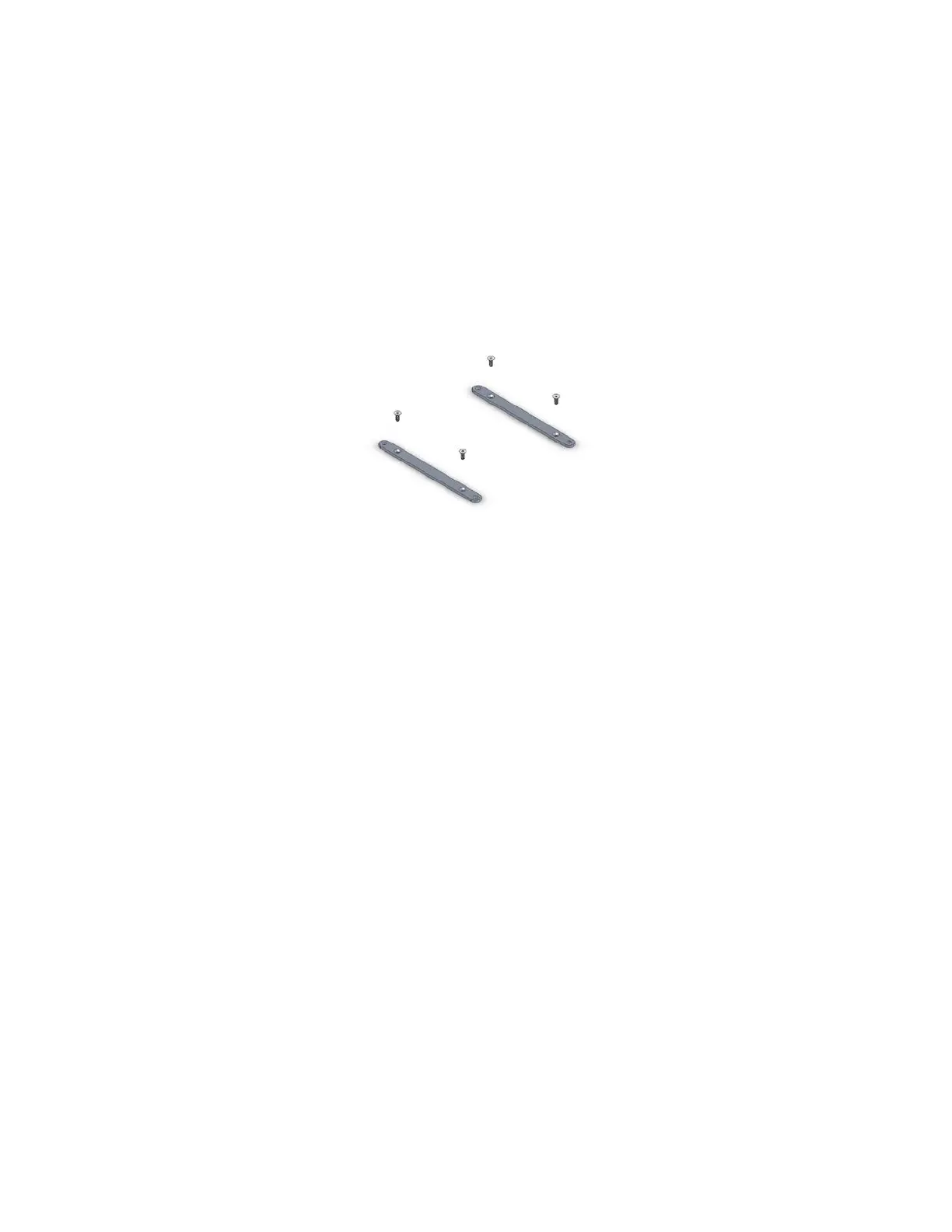

Mounting Brackets, A20955
To install the mounting brackets to the LLS 3, remove the rubber feet from the
bottom of the unit. Then screw the mounting plate to the light source housing
matching the threaded holes and the four counter bored holes towards the center of
the plate. The four outer holes of the mounting plate can be used to install the light
source/mounting plate system into any machine.
These two brackets are mounted to a panel via 4 screws that are positions in a
rectangular fashion spaced 5.3" (front-back) length of the unit and 5.5" left-right of
the unit.
6.3. Cleaning
The housing and the front and back plates have a durable finish that should retain its
original luster for many years. Cleaning the exposed areas with a commercial glass
cleaner will help to maintain the finish.
Before beginning, remove the cord from the light source. Wipe the exposed areas of
the housing and front and back plates with a soft cloth or paper towel moistened with
a commercial glass cleaner.
CAUTION: Do not use detergents, excess water, treated cloths, harsh cleaning or
flammable agents or sprays. If fluid spills into the interior, let the unit dry thoroughly
before using. Periodically, any visible dust accumulation should be removed using a
vacuum or commercially available can of compressed air.
6.4. LED Specifications
6.4.1. LED Lifetime
The LLS 3 features advanced technology high output, long-life LED light engines
that are operated at a very efficient power level below their maximum rating.
6.4.2. LED Stabilization
The LED output will vary slightly after initial power on. Please allow one minute for
the LED light to achieve stable light output.
