MAINTENANCE
SLIP CLUTCHES
Each of the drivelines on the Schulte cutter is equipped with a slip clutch.
Everyone of these slip clutches are pre-set and run-in by the Schulte supplier, so they should not be adjusted
by the dealer or end user.
After an extended period (4 to 6 months) of not being used, the clutches should be taken apart to ensure all
parts are movable and all surfaces are free of rust.
To service the clutch and/or change the linings, follow these steps:
Disassembly

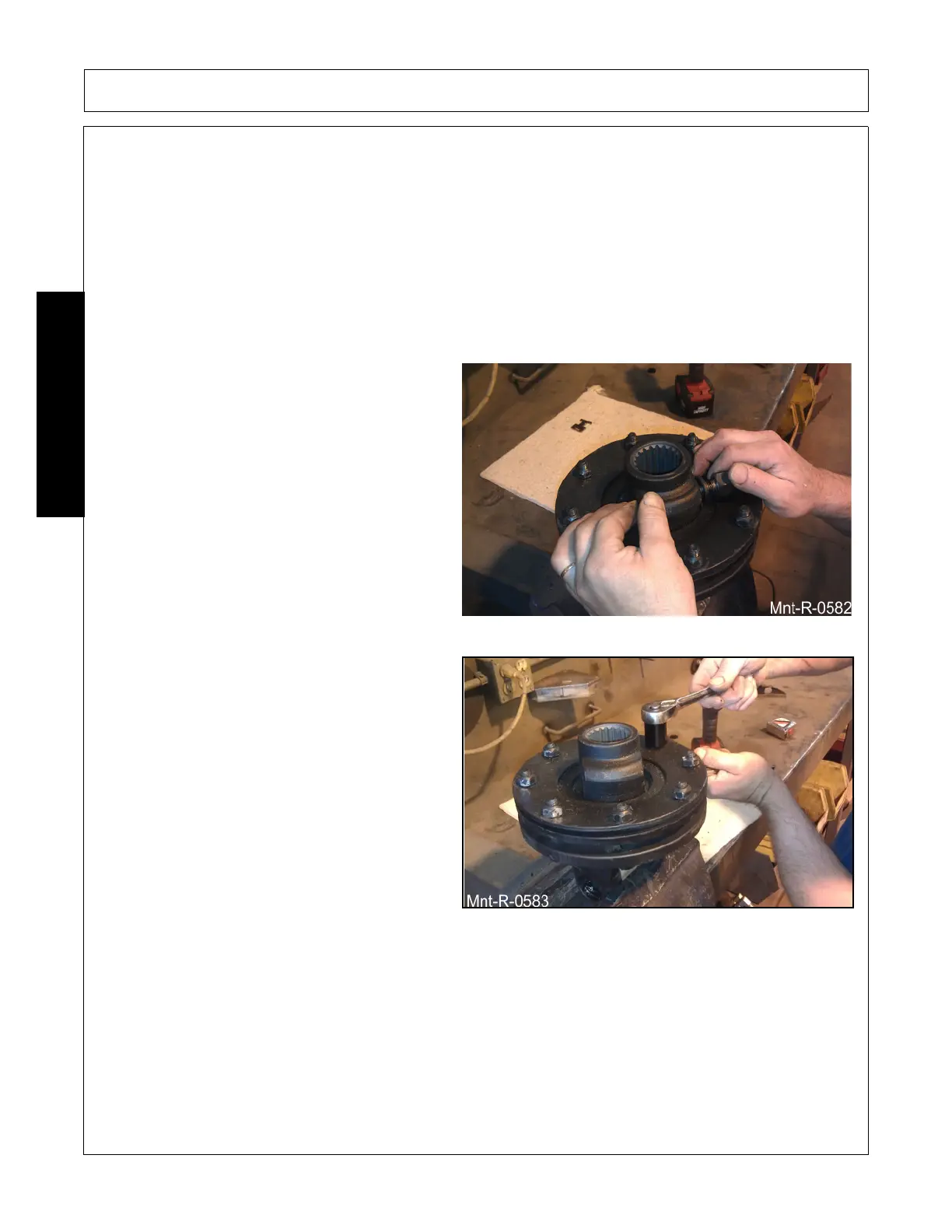

1. Remove the tapered pin.
2. Loosen the perimeter bolts on the clutch evenly
and progressively to uniformly reduce the load
on the spring.
