MAINTENANCE
FX209 07/19 Maintenance Section 5-13
© 2019 Alamo Group Inc.
MAINTENANCE
3. Separate the parts and inspect for signs of
corrosion, cracks and rust.
4. Clean the parts using brake cleaner and a wire
brush.
5. Inspect the thickness of the friction linings and
replace them if they are less than 2.5 mm in
thickness (new friction linings are 3.2 mm
thick).
Reassembly
1. Install the bushing (3) in the flange yoke (2). Ensure it seats fully.

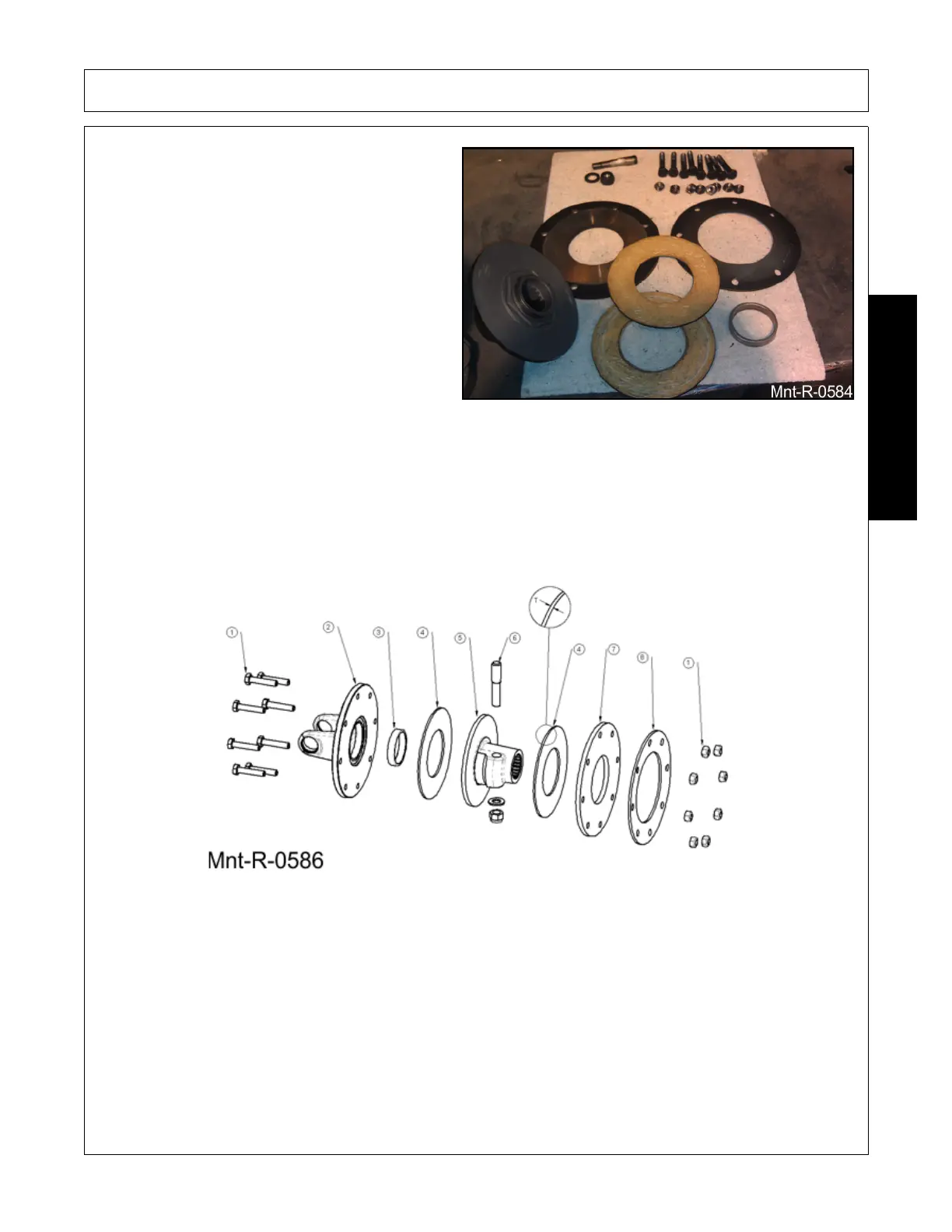

2. Reassemble the clutch as shown in the diagram (Figure Mnt-R-0586). Be careful not to contaminate any
of the internal parts of the clutch with grease or oil from hands or tools during reassembly.
To Next Page
