ASSEMBLY
FX-209 07/19 Assembly Section 3-5
© 2019 Alamo Group Inc.
ASSEMBLY

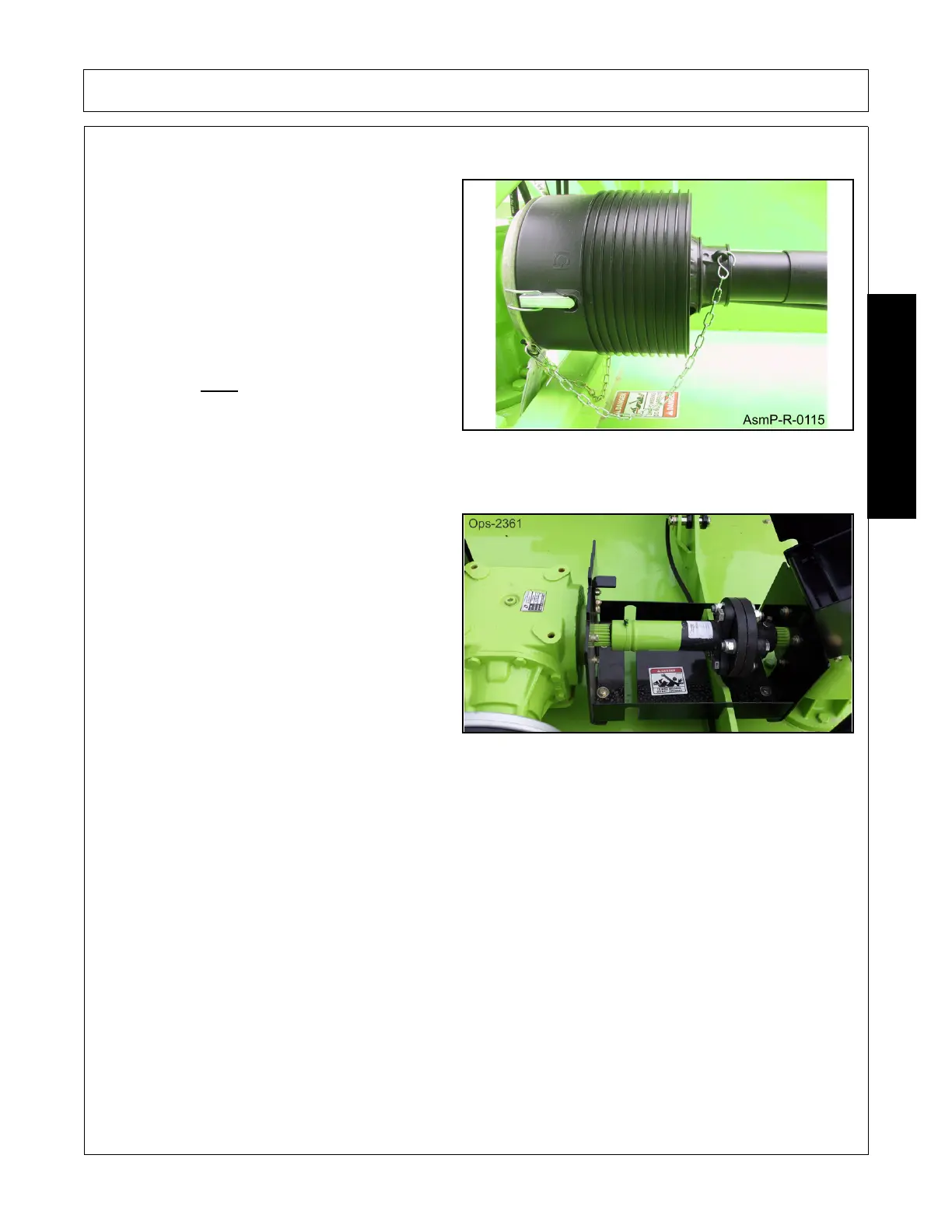

Driveline Shield Chains
Attach CV shield chain to tractor or cutter hitch
allowing sufficient slack for turning.
IMPORTANT: OSHA, ASABE, and SAE standards
require that all rotating shafts be guarded against
contact. The unchained plastic shields can rotate
with the driveline but must stop when they contact
another object.
NOTE: Driveline shields may also be chained to the
gearbox cone using the supplied chains.
The shields must
be regularly greased and
checked that they rotate freely on the driveline.
Refer to the Lubrication section for greasing
intervals.
Gearbox Couplers
Flexible couplers are to be installed with the rubber
disks closest to the outside gearboxes. The flexible
disks fit inside the notches of the deck ribs.
NOTE: Do Not operate without the coupler shields
secured in place.
