ASSEMBLY
FX-209 07/19 Assembly Section 3-6
© 2019 Alamo Group Inc.
ASSEMBLY

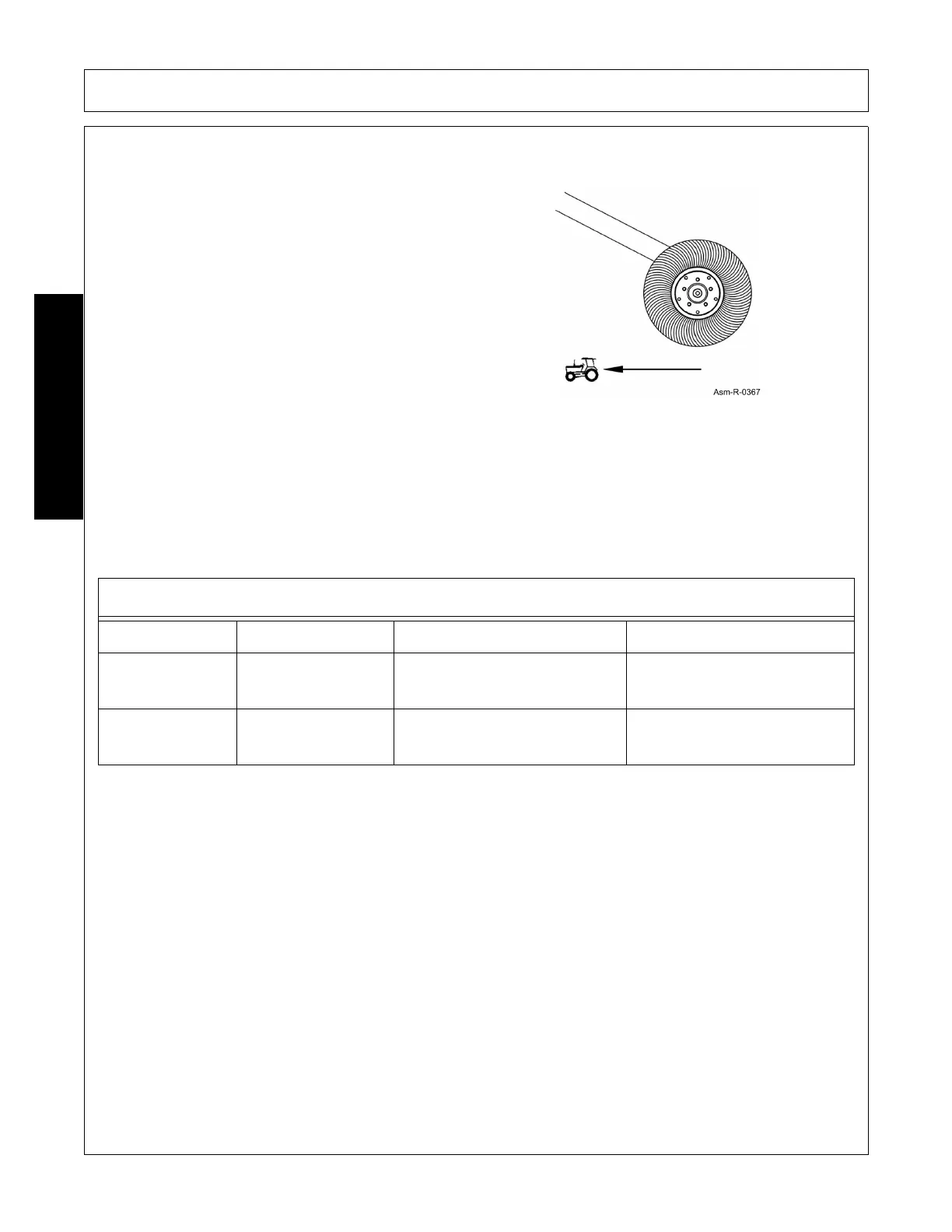

Laminated Tires
To reduce the possibility of the laminations
separating, the laminated tires should be installed
with the laminations oriented as shown below.
Blade Rotation
FX-209, Blade Rotation Configurations
FX-209 BLADE ROTATION AND TEE BOX SET UP CONFIGURATION MATRIX
Pulling Pushing CW Tractor PTO Pushing CCW Tractor PTO
Outboard Blade
Rotation
A-Configuration C-Configuration E-Configuration
Inboard Blade
Rotation
B-Configuration D-Configuration F-Configuration
To Next Page
