6. Replacing the saw blade
• Raise the head.
• Loosen the screw (24) and remove it.
• Open the blade guard (14).
• Use the spanner (27) to loosen the xing screw (28) and remove it.
• Remove the outer ange (25), lhe old saw blade (29),and lhe inner ange (30).
• Clean the anges.
• Place the inner ange,the new saw blade, and the outer ange. While placing lhe saw blade, make sure that
the teeth point to the direction rotation as shown.
• Replace the lock screw and tighten it rmly.
• Adjust the riving knife.
• Close the blade guard.
• Replace the screw (24) and tighten it.
Note: Select the correct saw blade for the workpiece to be sawn.

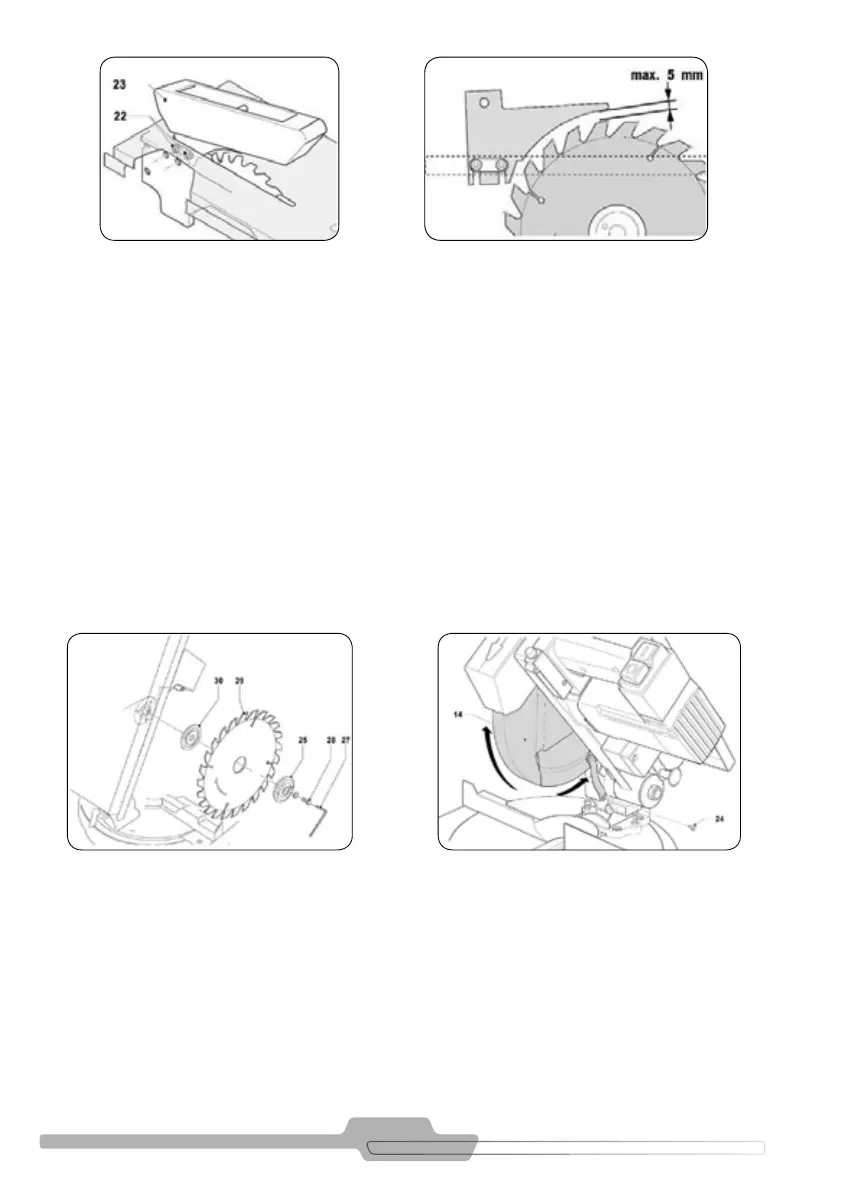

FIGURE 8.6FIGURE 8.5
FIGURE 8.7 FIGURE 8.8
7. Setting the mitre angle
• Loosen the lock knobs (9).
• Set the required mitre angle using the scale (10).
• Tighten the lock knobs. Figure 7.1.
8. Setting the bevel angle
• Loosen the lock knob (6).
• Set the required bevel angle. The setting can be read from the scale (7).
• Tighten the lock knob. Figure 7.1.
