Mounting and adjusting the table extenders
Using the table extenders you can support long workpieces.The table extenders can be mounted both to the left
and to the right of the machine.
1. Insert on each side a table extender (41) into the openings in the base on the machine as shown.

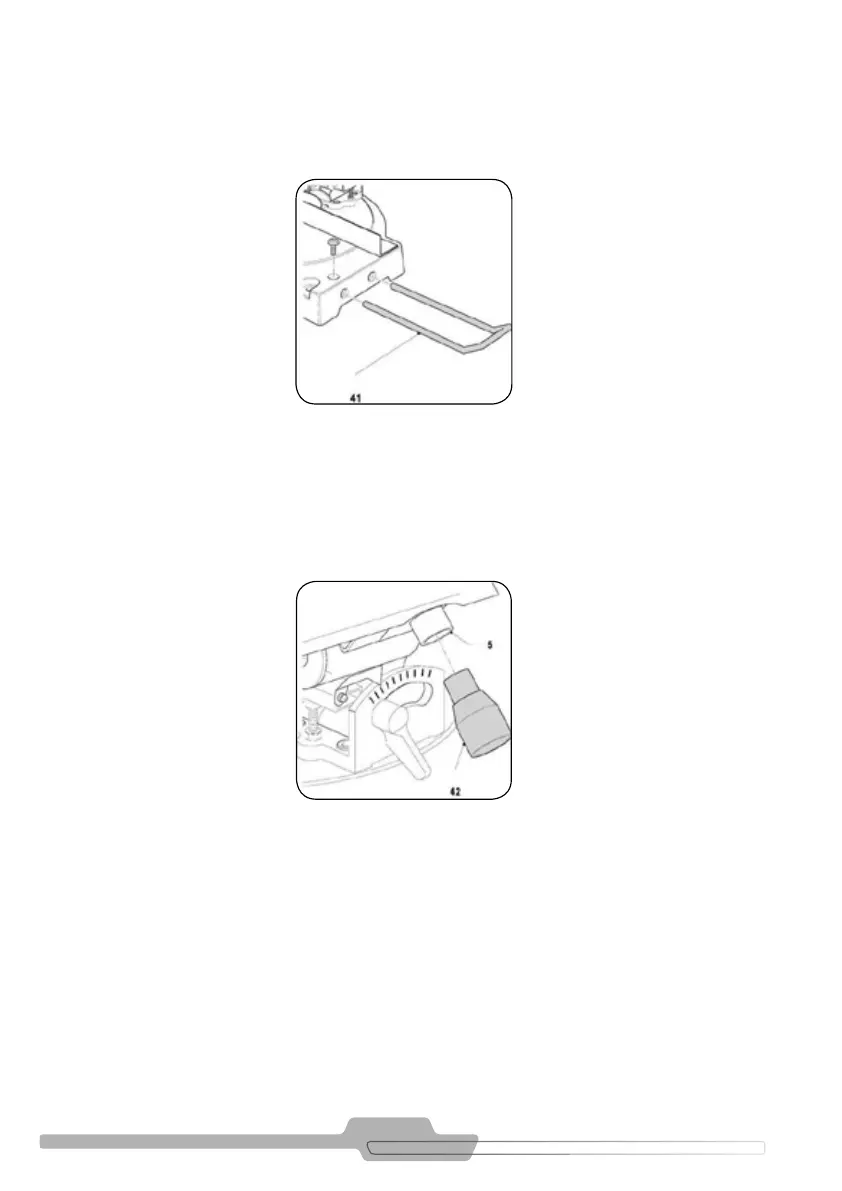

FIGURE 9.5
Dust extraction
The dust extraction outlet together with an external vacuum cleaner takes care of the dust extraction of the
working surface.
1. Placa the adaptar (42) on the dust extraction connection (5).
2. Connect a vacuum cleaner to the machine.
FIGURE 9.6
Lubrication
1. From time to time, apply a drop of oil to the thread of the lock screw (28). Figure 8.7.
