Sawing mitre cuts
Place the workpiece to be cut on the guide fence (13).
• Loosen the clamp screw of the lower rotary table (9).
• Set the angle on the angle scale (10).
• Retighten the screw.
• Start the cut.
Machine position bench:
1. Always make sure that the riving knife has been adjusted properly.
2. Always use the push stick to guide the workpiece along the saw blade.
3. Check that the upper part of the saw blade is fully covered by the upper guard.
4. Check whether the upper table top is tightened rmly.
Sawing angled miter cuts (Chanfro)
• Place the workpiece to be cut on the guide fence (13)
• Loosen the clamp screw of the lower rotary table.
• Set the angle on the angle scale (10).
• Retighten the screw.
• Loosen the angle lock knob (6)
• Move the machine counterclockwise
• Retighten the angle lock knob (6)
• Start the cut.

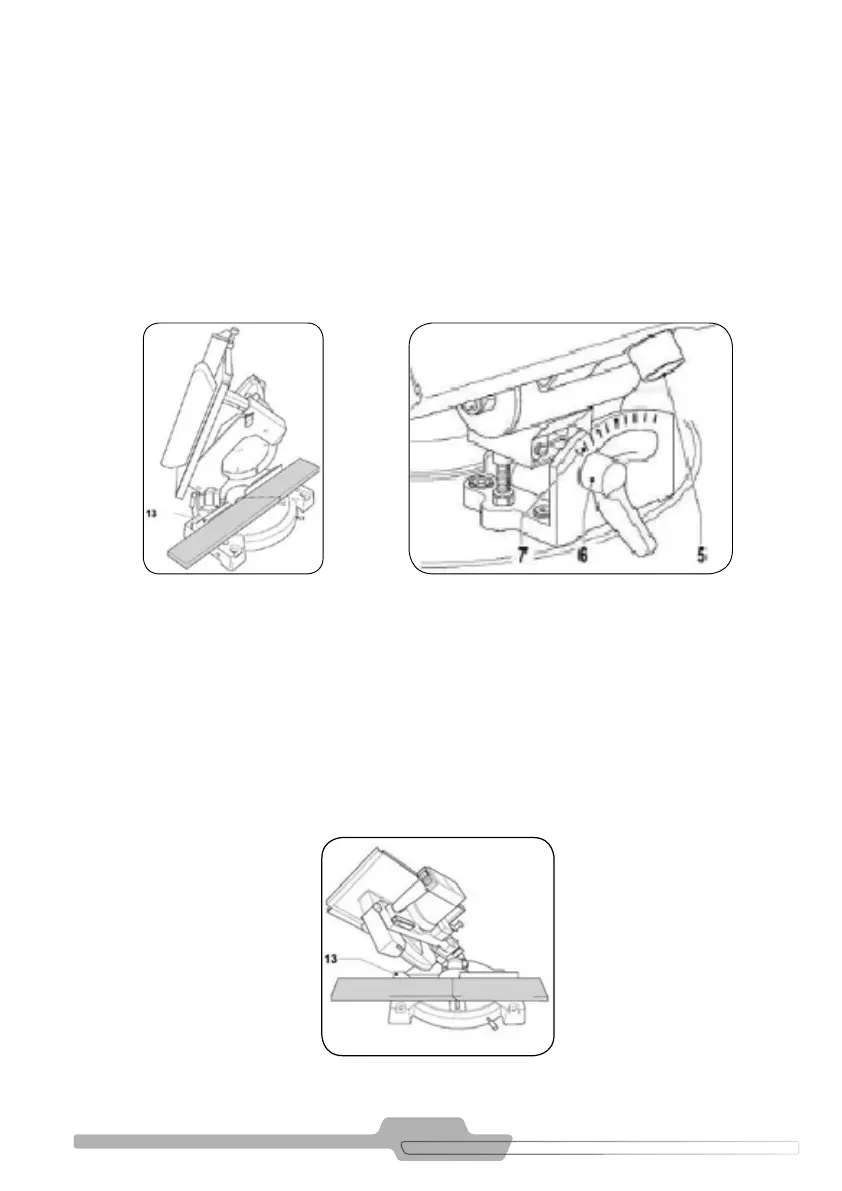

FIGURE 9.4
FIGURE 9.2 FIGURE 9.3
