Technical data
Nano17-Titan
Calibration F
x
/ F
y
[N]
F
z
[N]
M
x
/ M
y
[Nmm]
M
z
[Nmm]
F
x
/ F
y
[N]
F
z
[N]
M
x
/ M
y
[Nmm]
M
z
[Nmm]
SI-8-0.05 8 14.1 50 50 1/682 1/682 3/364 5/728
SI-16-0.1 16 28.2 100 100 1/341 1/341 3/182 5/364
SI-32-0.2 32 56.4 200 200 1/171 1/171 3/92 5/184

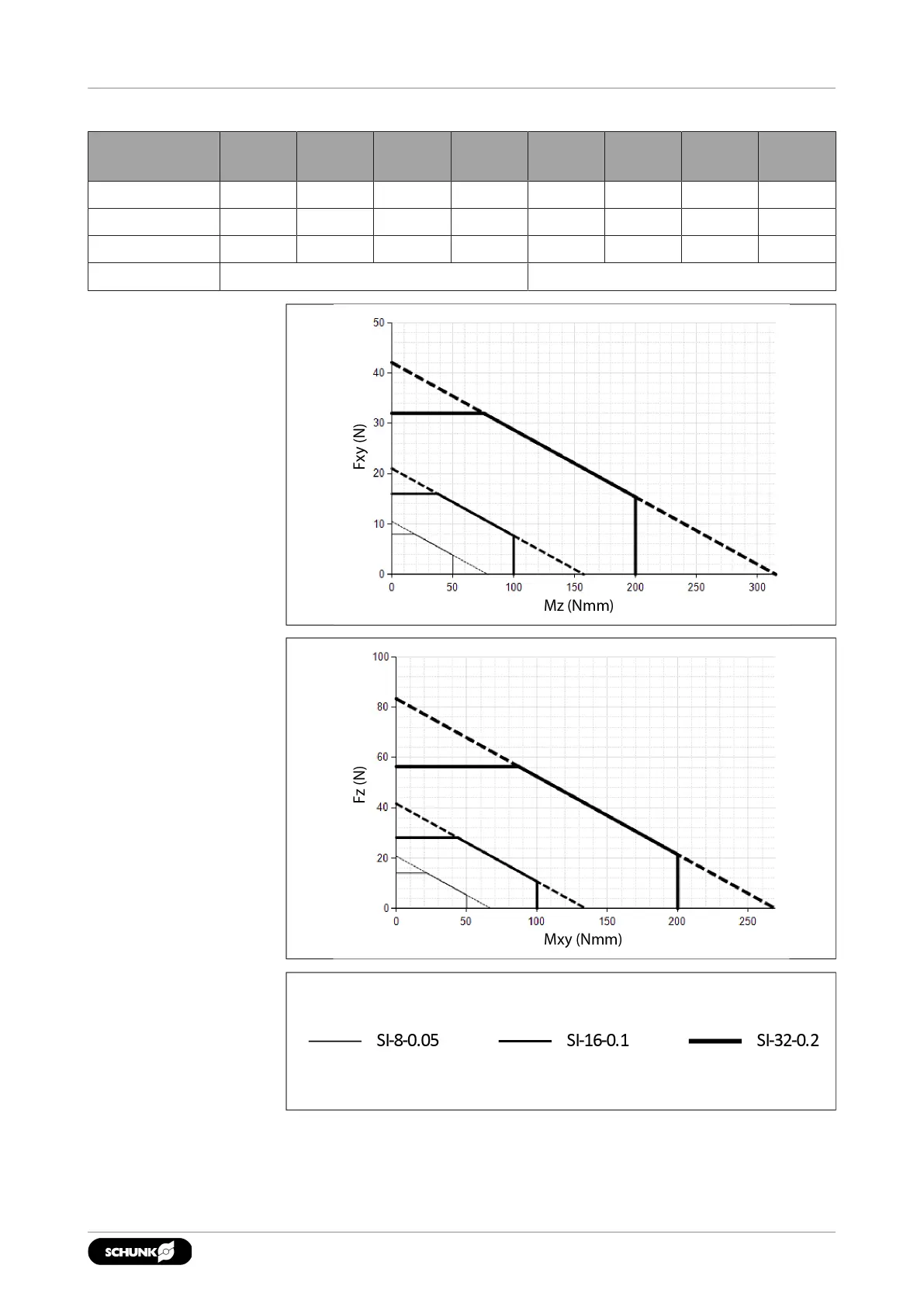

Ranges of measurement FTD, FTN, FTW, FTE resolution
