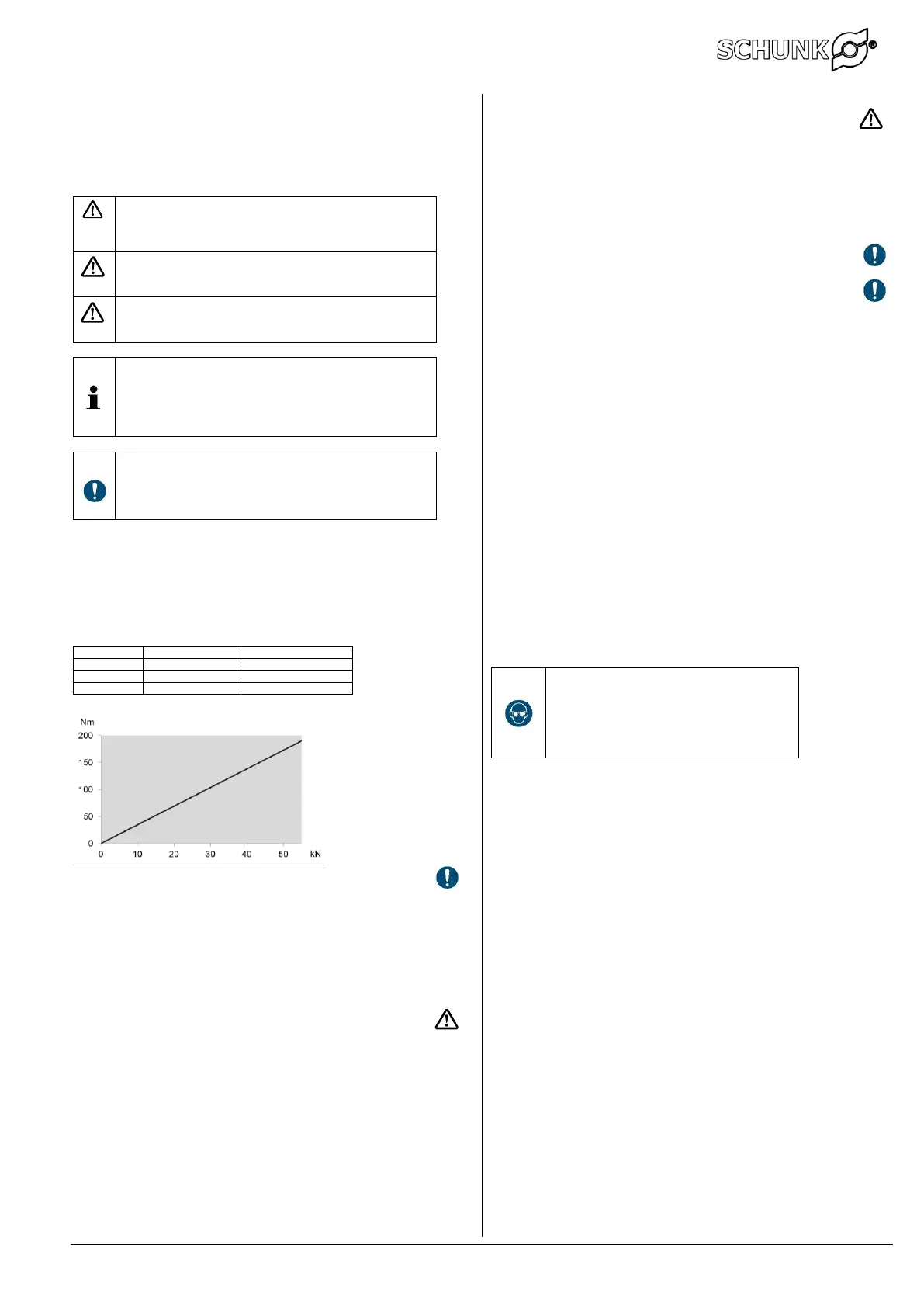

SCHUNK KSC3 User Manual

_______________________________________________________________________________________
schunk.com XND.00046.002_A – 08/2022 5
User information 1
1.1 Purpose of document, validity
These instructions are an integral part of the product supply and contain important information
for the safe installation, commissioning, operation, servicing and maintenance.
These instructions must be read before using the product and must be observed during operation,
in particular the "General safety instructions" section.
1.2 Illustration of safety instructions
Danger:
Indicates imminent danger.
If the information is ignored, death or serious injuries
(permanent disability) will result.
Warning:
Indicates a potentially dangerous situation.
If the information is ignored, it is possible that death or serious injuries
(permanent disability) will result.
Warning:
Indicates a potentially dangerous situation.
If the information is ignored, it is possible that material damage and light
to medium injuries will result.
Indication on useful tips or for preventing material damage
Note:
Indicates general information, useful tips for users and work
recommendations which, however, do not have an impact on the health
and safety of operators.
… underscores useful tips and recommendations as well as information
for efficient and trouble-free operation.
Important for preventing more extensive material damage
Caution:
Indicates a potentially dangerous situation.
If the information is ignored, material damage will result.
… points out a potentially dangerous situation that can lead to
material damage if it is not avoided.
General safety instructions 2
2.1 Intended use
The clamping device may only be used in accordance with the technical data. The clamping device
has been designed for stationary application on milling machines in an industrial environment.
Using the device in accordance with the intended purpose includes compliance with the
commissioning, installation and operating instructions, and with the environmental and service
conditions as provided by the manufacturer.
The manufacturer accepts no liability for damage resulting from non-intended use.
Technical data 2.1.1
Version
Max. torque
Max. clamping force
KSC3 80
90 Nm
25 kN
KSC3 125
100 Nm
35 kN
KSC3 160
175 Nm
50 kN
Clamping torque / Clamping force
Exposure to loads in excess of the max. pull-in torque results in damage to the spindle.
Weight:
KSC3 80
L-130
without system jaws:
3.0
kg
KSC3 80
L-190
without system jaws:
4.5
kg
KSC3 125
L-160
without system jaws:
6.4
kg
KSC3 125
L-235
without system jaws:
9.5
kg
KSC3 125
L-300
without system jaws:
12.5
kg
KSC3 160
L-280
without system jaws:
25.0
kg
KSC3 160
L-480
without system jaws:
35.0
kg
For further data, please see Homepage >> schunk.com <<
2.2 Reasonably foreseeable misapplication
Any application that is not in accordance with the "Intended use" or exceeds such
intended use is considered not in accordance with the regulations, and is forbidden.
Any other use of the device is subject to confirmation from the manufacturer.
Examples of forseeable misapplication
 Clamping device used on rotating systems.
 Clamping widely protruding workpieces.
 Clamping of havy workpieces in vertical position without an additional safeguard to prevent the
workpiece falling out during loading and unloading.
Alterations and modifications 2.2.1
In the case of unauthorised alterations and modifications of the clamping device, the
manufacturer's liability ceases and any warranty is voided.
Spare and wear parts and auxiliary material 2.2.2
Only use original parts or parts approved by the manufacturer. Using spare and wear
parts by third party manufacturers may lead to risk.
2.3 Residual risk
The user is responsible for applying the correct workpiece tension.
New clampings have to be carefully checked by qualified personnel with relevant training.
One always needs to allow for the risk that the workpiece may slip or be dislodged, even
when the clamping device is functioning correctly. This is due to the different geometries
to be clamped, contact surfaces, clamping friction values, processing force, wrong
manipulation of the milling machine etc.
Protective devices are to be attached to the processing machine that will protect the
operator from any tool or workpiece parts that may be ejected.
It is mandatory that operators and others in the proximity of the processing machine
wear protective goggles.
Do not use methods of operation that impair the function and operational safety.
Jaw change 2.3.1
Damage may result if system jaws are insufficiently tightened.
Notes on clamping technology 2.3.2
The operator is responsible for ensuring that the clamping geometry and clamping forces
are suitable for the intended processing.
We recommend that clamping be carried out with a torque wrench in order to achieve
consistent clamping results.
The clamping forces can only be achieved if the clamping device functions correctly
and the workpiece is correctly held in the device.
Regular servicing and cleaning in accordance with the operating instructions is
mandatory in order to ensure correct function.
When clamping thin-walled elastic workpieces, e.g. tubes or packages, it is possible
that the clamping force is significantly reduced due to yielding of the workpiece.
When clamping with a high degree of force, the clamping force is significantly reduced
due to the increased frictional forces in the carriages.
2.4 Duties of the organisation in charge
The organisation in charge of the device undertakes to only allow operatives to work on the device:
 who are familiar with the basic health and safety regulations and regulations for the
prevention of accidents.
 who have completed appropriate induction for working with the machine.
 who have read and understood these operating instructions.
The requirements of the EC Directive 2007/30/EC on the use of work machinery must be
complied with.
2.5 Operator duties
All persons who have been instructed to work with the machine undertake to:
 observe the basic regulations for health and safety and for the prevention of accidents.
 read and understand the section on safety and the safety instructions in these operating
instructions prior to working with the machine, and to observe these instructions.
2.6 Operator qualification
The installation, initial setup, fault analysis and periodic monitoring have to be carried out
by competent personnel with the relevant qualifications.
2.7 Personal protective equipment
Warning:
Risk of eye injury through ejected hot chips!
Ejected hot fragments can lead to serious eye injury.
The regulations for safety at work and the prevention of
accidents always have to be observed when working
with the machine.
Personal protection equipment must be worn at all times,
in particular safety boots, gloves and safety goggles.
2.8 Warranty
The warranty period is 24 months from the date of delivery, the warranty applies subject
to being used as intended and to the following conditions:
 Compliance with concurrent documents.
 Compliance with environmental and operating conditions.
 Compliance with the specified maintenance and lubrication intervals.
 Observance of the maximum service life.
Any parts in contact with workpieces are not covered by the warranty.
Warranty – Maximum service life
24 months or 50‘000 clamping cycles
