Design and description
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 19
4 Design and description
4.1 Design

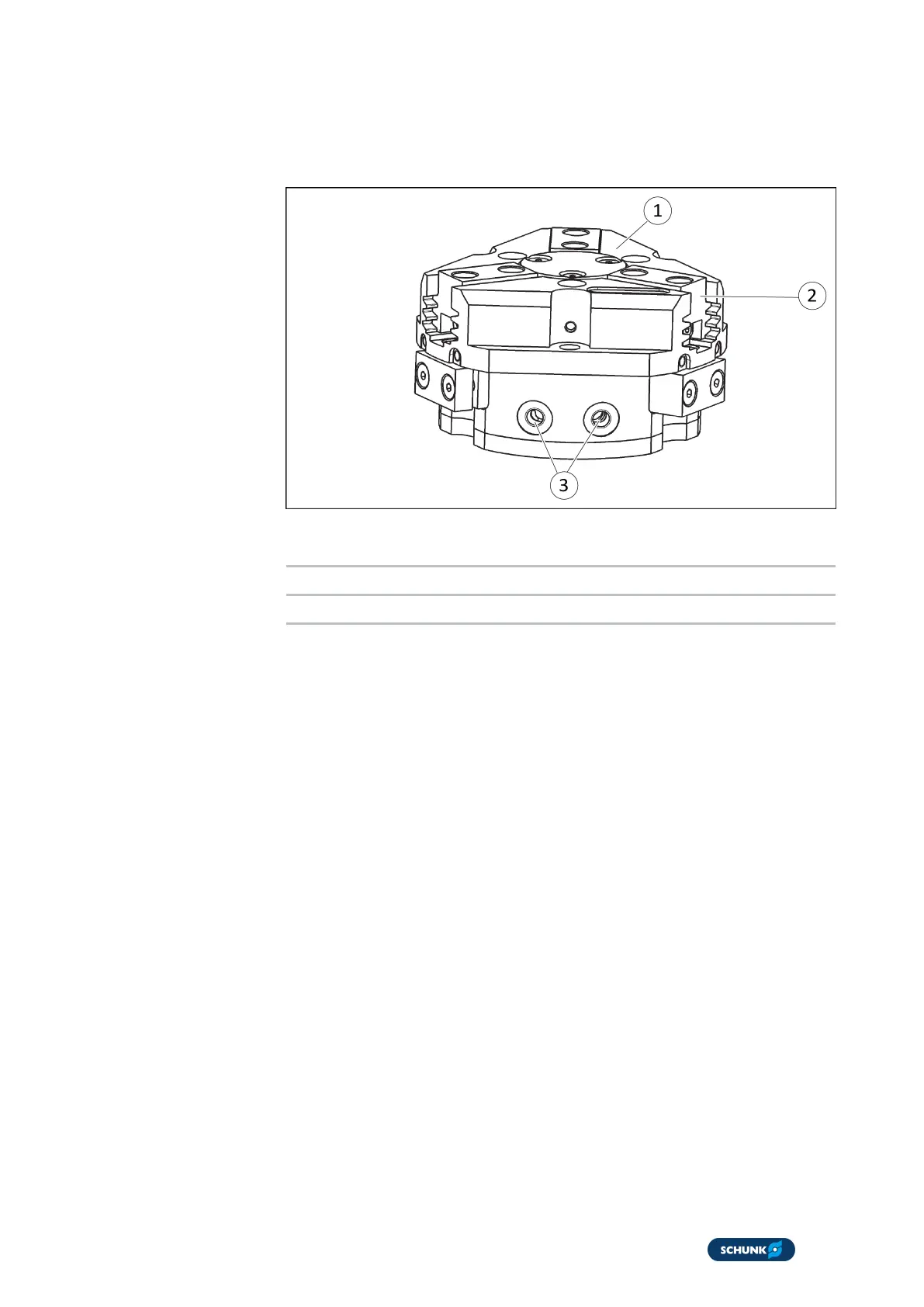

3-Finger Centric Gripper
1 Housing
2 Base jaw
3 Compressed air main connection
4.2 Description
Universal 3-finger centric gripper with high gripping force and
high maximum moments due to multi-tooth guidance.
