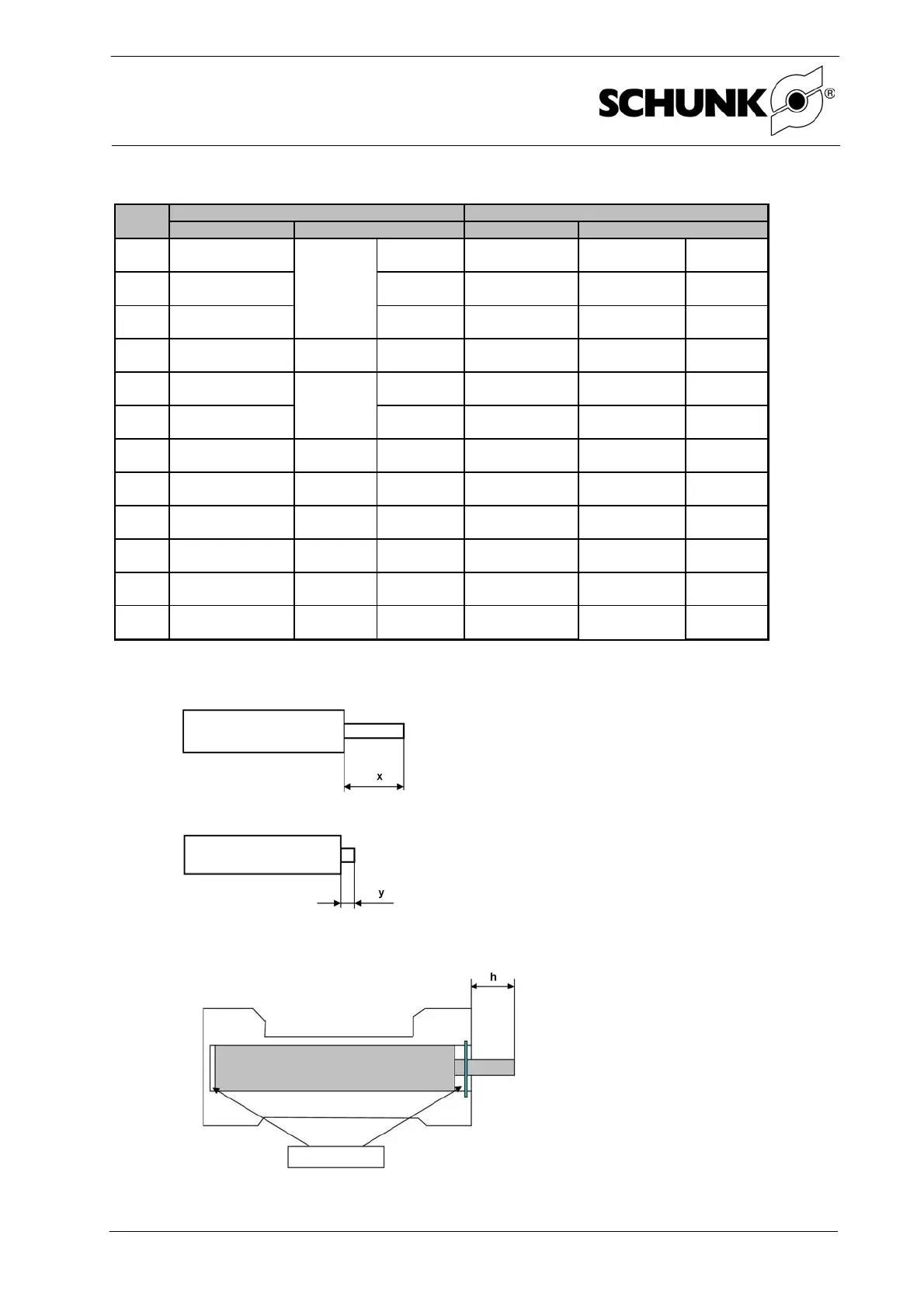

SCHUNK SRU Series Short Manual

Short manual
Changing the stop on the SRU with shock absorber adjustment
Date: 13.05.2008 2 Date printed 19.05.2008
Unit
Shock absorber Shock absorber
20.1
WP-M 0,25-356
(ID No.: 9941662)
±0,05 -
20.2
WP-M 0,25-356
(ID No.: 9941662)
±0,05
MC 150 MH2
(ID-Nr.: 9701000)
see measuring
instructions
±0,1
25.1
WP-M 0,25-356
(ID No.: 9941662)
±0,05 -
25.2
WP-M 0,25-456
(ID No.: 9941661)
17,5 ±0,05
MC 150 MH2
(ID-Nr.: 9701000)
see measuring
instructions
±0,1
35.1
MC 225 MH2
(ID No.: 9701013)
±0,1 -
35.2
MC 225 MH2
(ID No.: 9701013)
±0,1
MC 225 MH2
(ID-Nr.: 9701013)
see measuring
instructions
±0,1
40.1
WP-M 1,0-166
(ID No.: 9941268)
17,5 ±0,05 -
40.2
WP-M 1,0-166
(ID No.: 9941268)
17,5 ±0,05
MC 600 MH2
(ID-Nr.: 9701005)
see measuring
instructions
±0,1
50.1
WP-M 1,0-166
(ID No.: 9941268)
17,5 ±0,05 -
50.2
WP-M 1,0-166
(ID No.: 9941268)
17,5 ±0,05
MC 600 MH2
(ID-Nr.: 9701005)
see measuring
instructions
±0,1
60.1
WP-M 1,0-166
(ID No.: 9941268)
17,5 ±0,05 -
60.2
WP-M 1,0-456
(ID No.: 9941634)
17,5 ±0,05
MC 600 MH2
(ID-Nr.: 9701005)
see measuring
instructions
±0,1
17. Jan
see
measuring
instructions
Shock absorber utilization and installation dimensions
Basic VM
Shock abs. projection (h) Shock abs. projection (h)
Measuring instructions
1. Measure the projection (x) of the shock absorber.
2. Measure the projection (y) of the compressed shock absorber plunger.
3. Calculate shock absorber stroke (h) .
h=x-y-0.2mm
4. Adjust shock absorber projection (h).
Fitting disks
