SCHUNK SRU Series Short Manual

Short manual
Changing the stop on the SRU with shock absorber adjustment
Date: 13.05.2008 3 Date printed 19.05.2008
2. Adjusting the stops
(1) Use an Allen wrench to loosen the screw (item 55) about one revolution.
(2) Apply air pressure to air connection B. Unit rotates to stop A
(base setting 0°).
(3) Set the desired end position by turning the stop A.
Important!
Do not adjust the end stops by turning the axial face hexagon socket or the shock ab-
sorber (VM versions). This can cause the components to come apart.

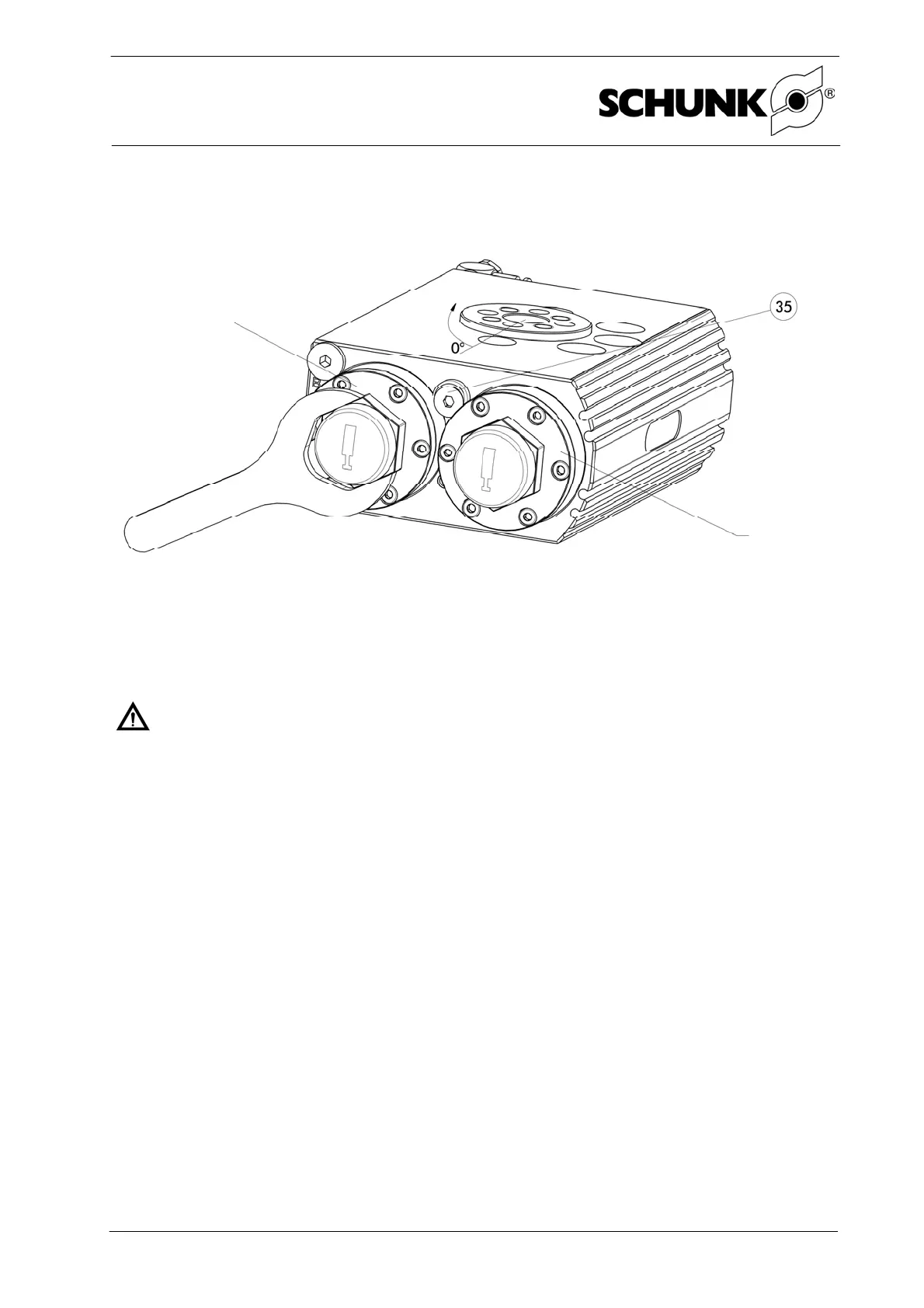

- Use an open-end or box-end wrench (SRU 20: 19, SRU 35-60: 32), placing it on
the hexagon nut of the stop cover (see illustration above).
(4) Bleed air connection A and apply air to connection B; then check the end position. Ad-
just the end positions if necessary.
(5) Bleed air connection B and apply air to connection A. Unit rotates to stop B (base set-
ting 180°).
(6) Set the desired end position by turning the stop B.
(7) Tighten the screw (item 35) securely.
(SRU 20 – 40: 10 Nm, SRU 50 – 60: 24 Nm)
(8) Rotate several times to check the correct setting of the end position Adjust the end
positions if necessary.
Stop B
Stop A
