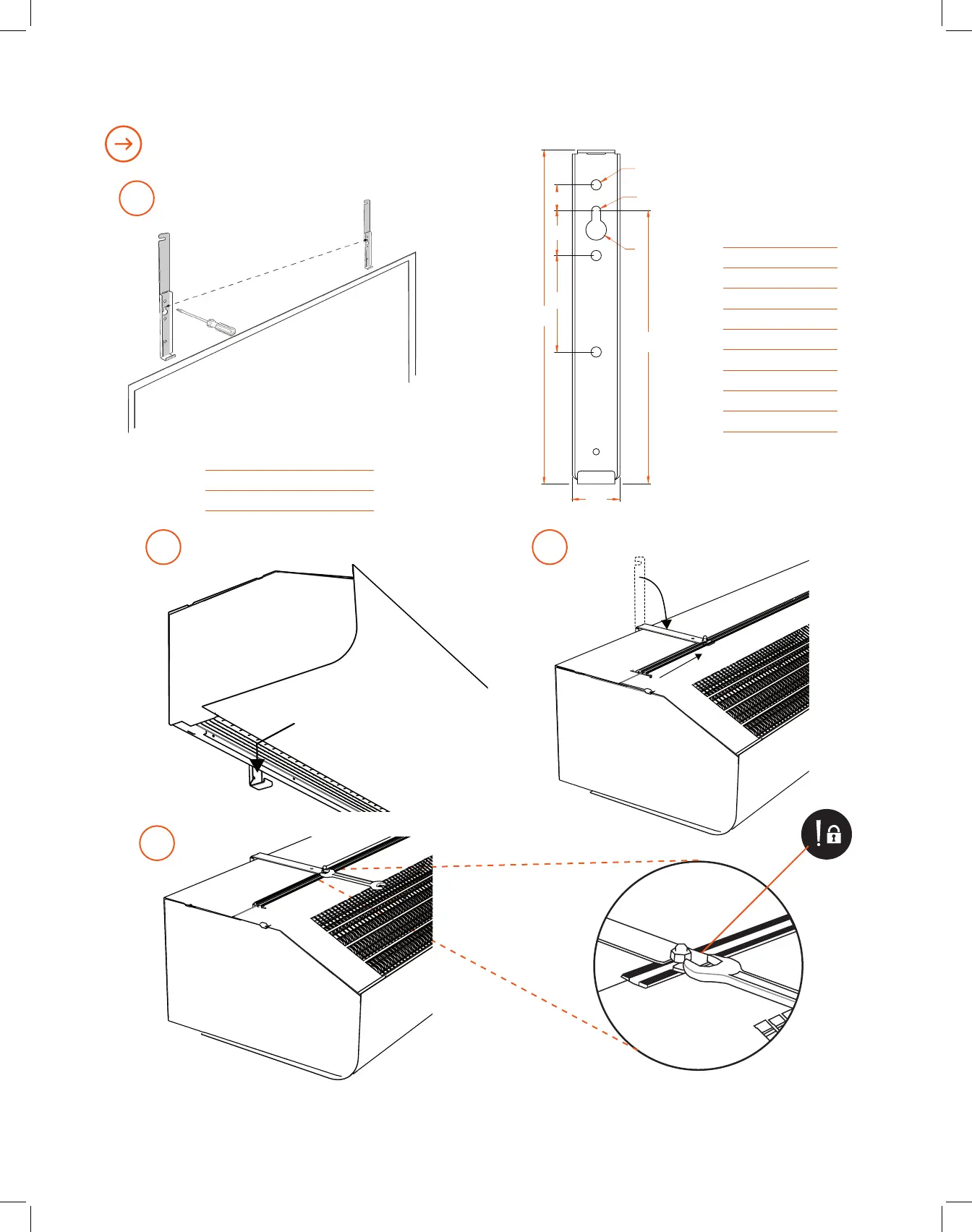

Fig. 6: Mounting with wall brackets
D
B C
min 500 mm
36" Models 2 pcs
60" Models 2 pcs
72" Models 3 pcs
A
20
Ø8 (3x)
Ø7
Ø16
213
37
260
75 35
Ref (inch)
A 10.24
B 1.46
C 8.39
D 2.95
E 1.38
F 0.79
G 0.31
H 0.28
I 0.63
min 19.7 in
A
G (x3)
H
I
B
C
D E F
Mounting with wall brackets
