Schweigen GG-901 - Installation Process Overview

_n_. _RH Section_
Page 15
6. Installation
NOTE
Remove all plastic protection on the rangehood and lters before use.
Installation Example
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW

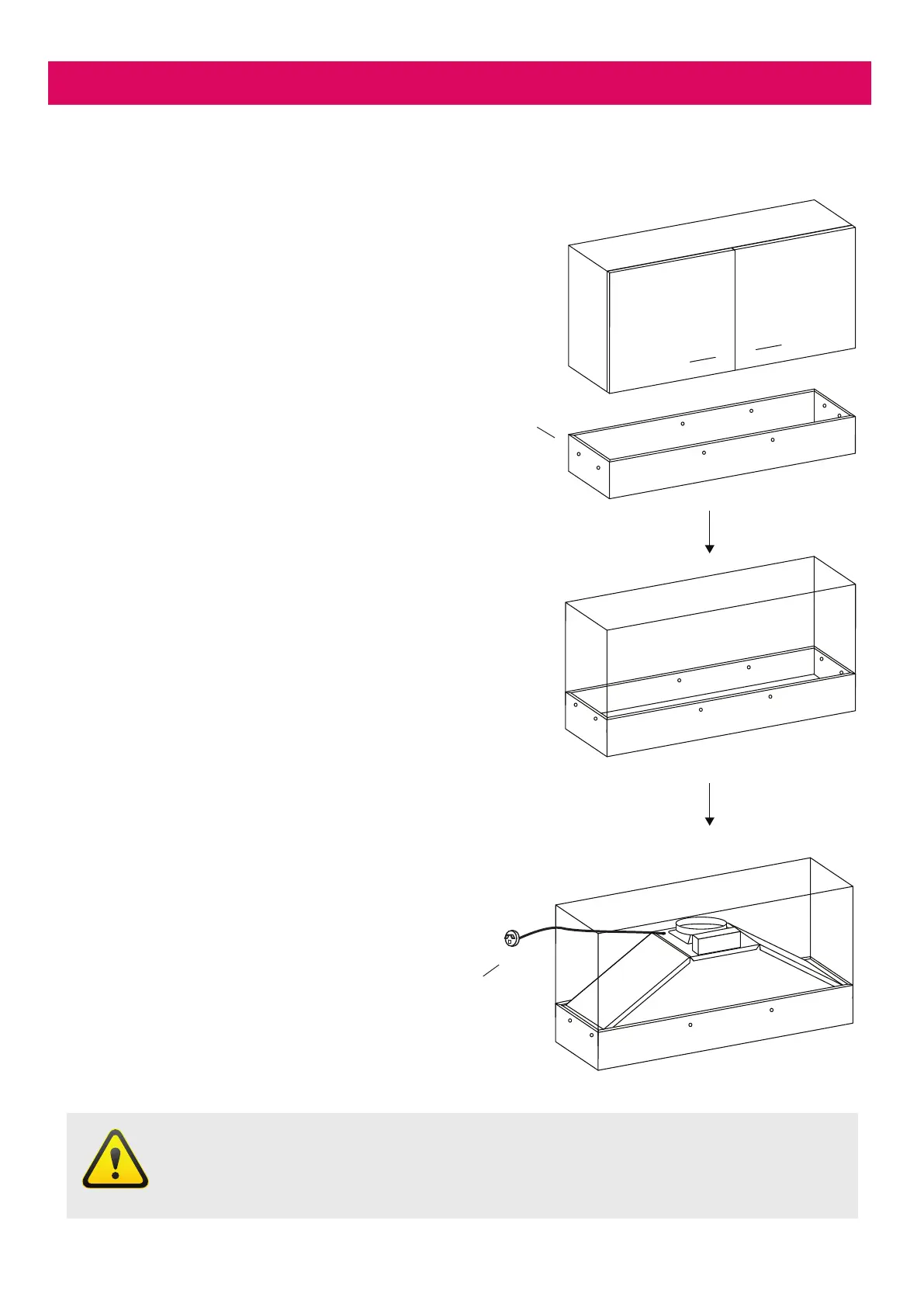

Mounting frame
Step 2
Secure mounting frame to inside of cabinet.
Step 3
Secure the undermount into cavity using screws.
All screws are installed internally into the
mounting frame.
Step 1
Insert mounting frame into cabinet. The support
will only be needed in certain circumstances.
NOTE: The mounting frame is not included. The
requirement of a mounting frame is dependent
on the type and location of installation. Please
contact your installer for more information.
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
Male Plug
(Main power)
