Schweitzer Engineering Laboratories, Inc. SEL-787-3, -4 Data Sheet
23

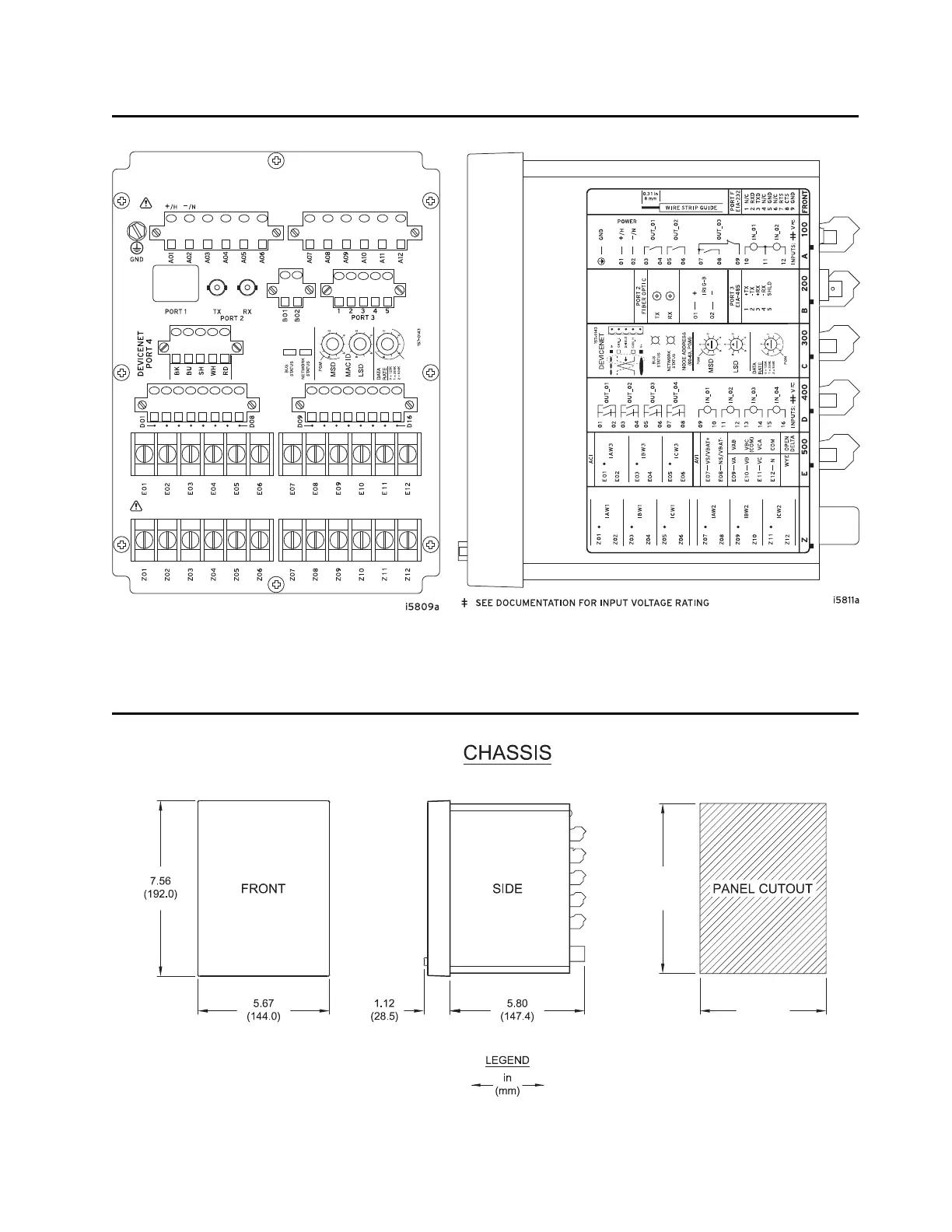

SEL-787-3S Rear- and Side-Panel Diagrams
(A) Rear-Panel Diagram (B) Side-Panel Diagram
Figure 22 SEL-787-3S With DeviceNet and Hybrid 4 DI/4 DO Option
Relay Dimensions
Figure 23 SEL-787 Dimensions for Rack- and Panel-Mount Models
7.36
(187.0)
5.47
(139.0)
i9089b
