Normal Procedures
Pilot's Flight Manual
4-10 Reissued: 16 Jan 2019

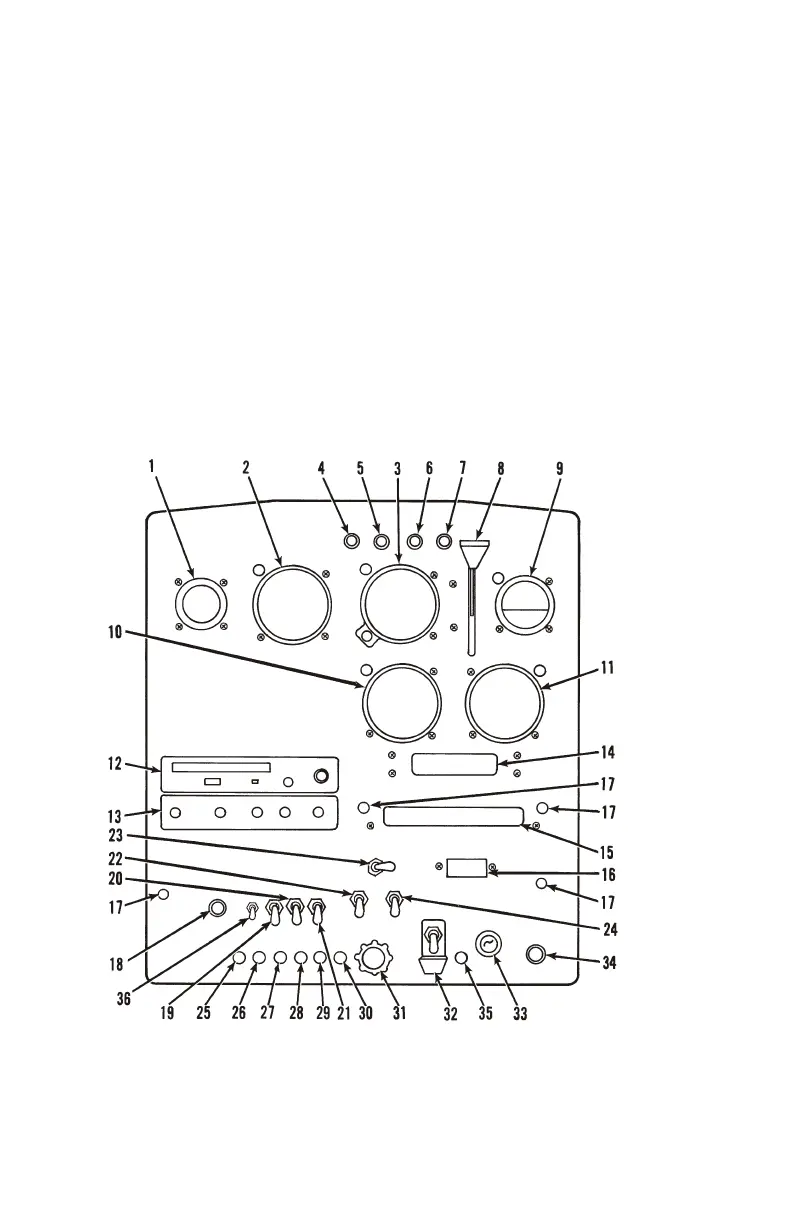

Fig ure 4-2. Typ i cal In stru ment Panel Con fig u ra tion
(He li cop ters with carbureted en gine - HO-360-C1A)
1. Com pass
2. Air speed Ind.
3. Al tim e ter
4. Low Volt age Cau tion Light
5. Fuel Low Cau tion Light
6. M/R XSMS (Temp/Press) Warn ing
Light
7. T/R XMSM Chips Cau tion Light
8. Car bu re tor Heat Con trol
9. Carb Temp In di ca tor
10. En gine & Ro tor Ta chom e ter
11. Man i fold Pres sure In di ca tor
12. Ra dio
13. Ra dio
14. Fuel Qty/Cyl Head Temp
15. Oil Press/Oil Temp/Amps
16. Run ning Time Me ter
17. Panel Light
18. Panel Light Dim mer
19. Panel Light Switch
20. Po si tion Light Switch
21. Bea con Light Switch
22. Bat tery Switch
23. Trim Switch
24. Al ter na tor Switch
25. Tran sponder Cir cuit Breaker
26. Ra dio Cir cuit Breaker
27. Land ing Light Cir cuit Breaker
28. In stru ment Cir cuit Breaker
29. Clutch Cir cuit Breaker
30. Trim Cir cuit Breaker
31. Fuel Mix ture Con trol
32. Clutch Con trol Switch
33. Mag neto Key Switch
34. Fuel Shut off Con trol
35. Clutch Dis en gaged Warn ing Light
SCHWEIZER
Model 269C-1 Helicopter
FAA Approved
