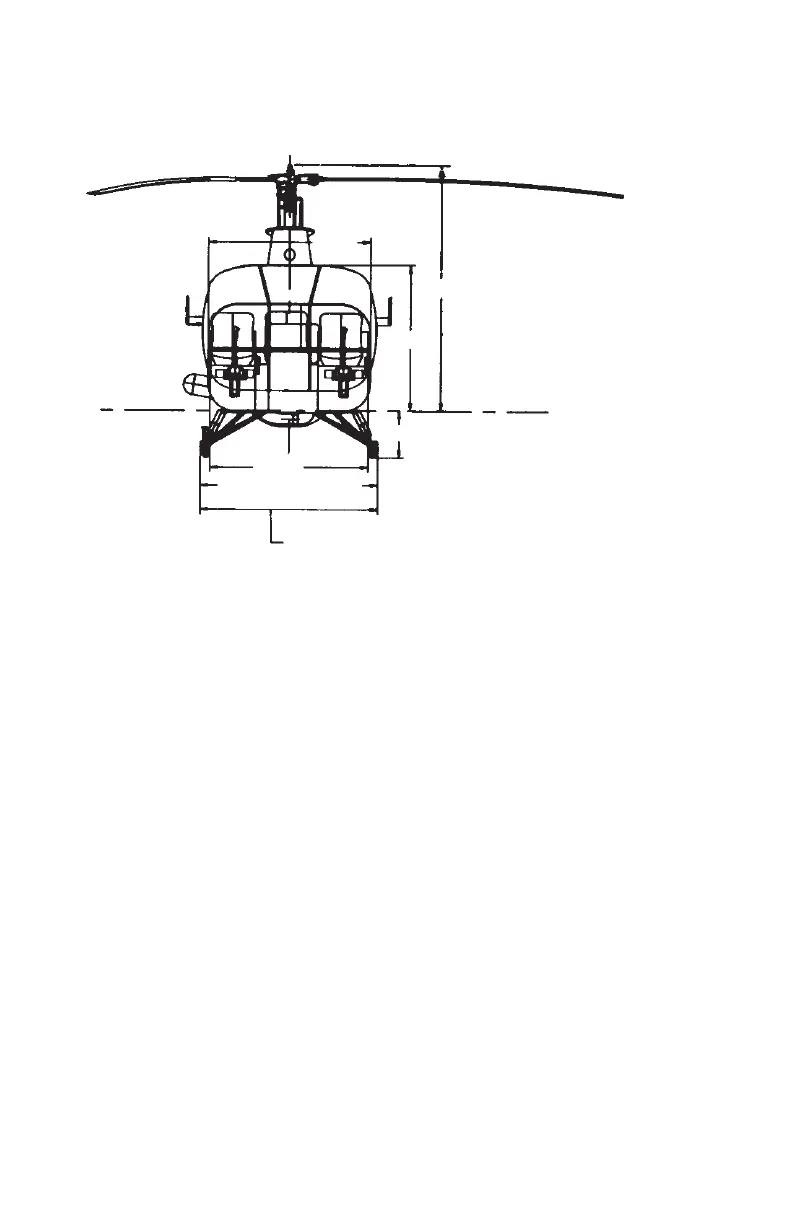

Figure 7-2. Principle Dimensions (Sheet 1 of 2)
Handling, Servicing & Maint.
Pilot's Flight Manual
Schweizer RSG, LLC.
Model 269D Helicopter
7-14
Reissued: 16 Jan 2019
Dimensions: (Not Shown):
Main Rotor Diameter 26 ft. 10 in.
Overall Length (with main rotor blade forward
and tail rotor blade aft.) 30 ft. 11 in.
Weights:
Design Gross Weight 2,230 lbs.
External Load Gross Weight 2,230 lbs.
Empty Weight (approximate) 1,100 lbs.
Useful Load (approximate) 1,130 lbs.
Powerplant:
Make Rolls Royce
Type Gas Turbine
Designation 250-C20W
Power Rating 220 HP
235 HP 5 MIN LIMIT
Std Capacity Fuel 60.8 U.S. Gal.
Useable Fuel Capacity 60.0 U.S. Gal.
Generator Capacity 150 Amps
67.77
102.68
60.72
19.62
66.16
74.24 IN FLIGHT
81.92 ON GROUND
W.L. 0.00
