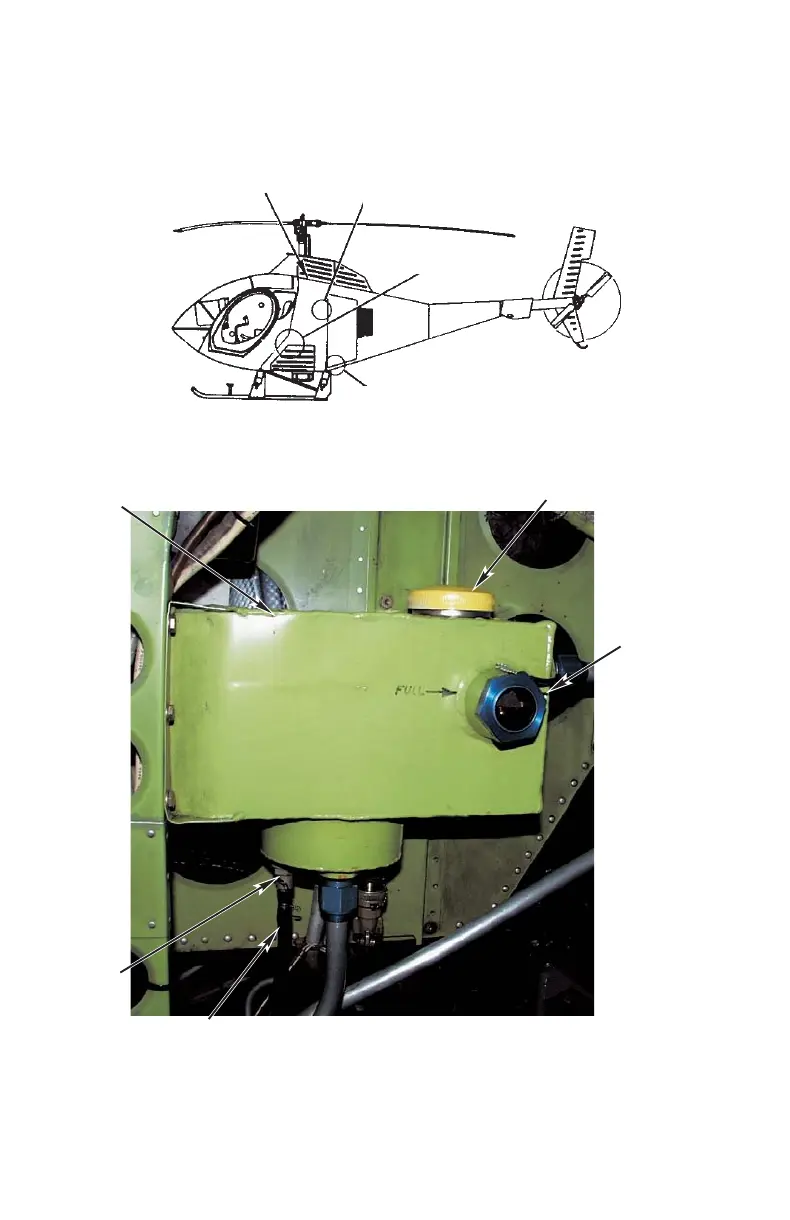

Figure 7-5. Servicing Points (Sheet 1 of 2)
Handling, Servicing & Maint.
Pilot's Flight Manual
Schweizer RSG, LLC.
Model 269D Helicopter
7-26
Reissued: 16 Jan 2019
FUEL CELL
FILLER CAP
DETAIL A
DETAIL C
DETAIL B
FILLER PORT CAP
ENGINE OIL TANK
SIGHT
GAUGE
SUMP
DRAIN
VALVE
SUMP DRAIN TUBE
DETAIL A
