Figure 7-5. Servicing Points (Sheet 2 of 2)
Handling, Servicing & Maint.
Schweizer RSG, LLC.
Model 269D Helicopter
Pilot's Flight Manual
7-27
Rei
ssued: 16 Jan 2019

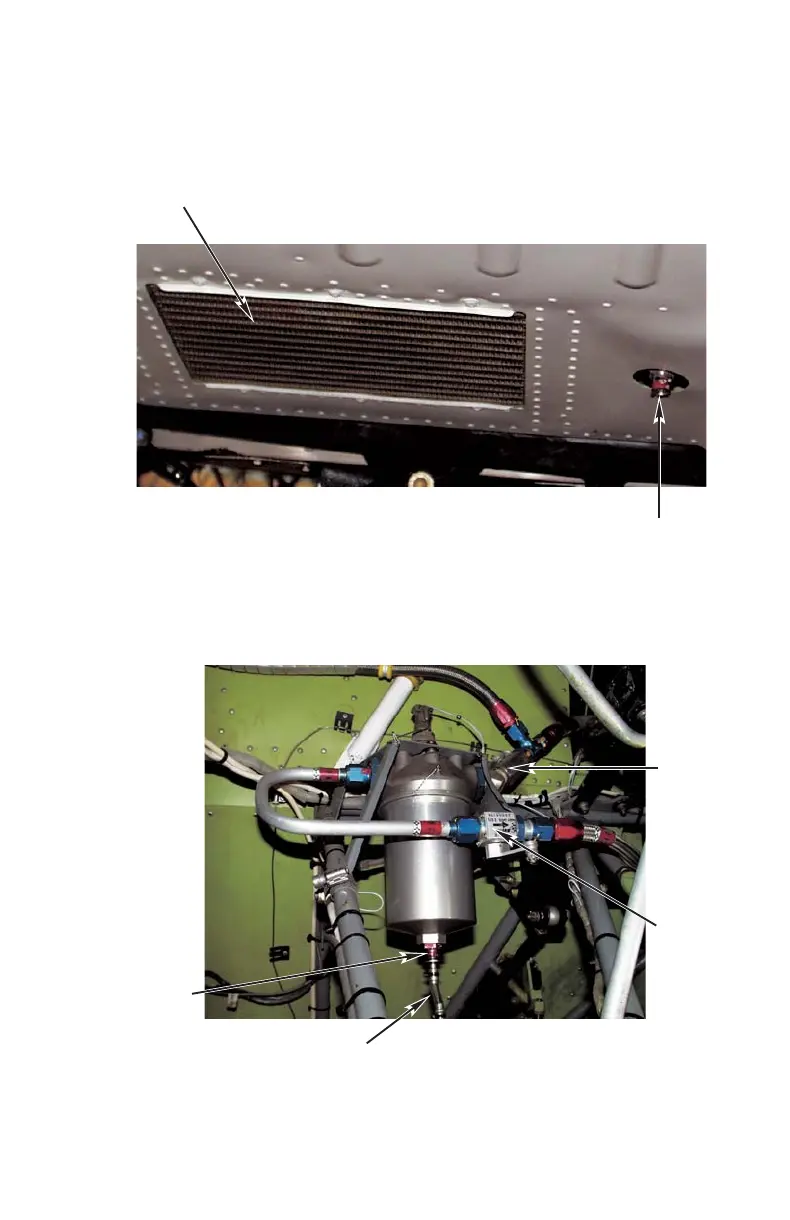

ENGINE /
TRANSMISSION
OIL COOLER
DRAIN VALVE
DRAIN TUBE
FUEL CELL
SHUT-OFF
VALVE
ENGINE
SHUT-OFF
VALVE
OVERBOARD DRAIN TUBE
SUMP DRAIN
VALVE
DETAIL C
DETAIL B
